- Page 1 APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 1 P K I T K P | C O L O U R V I D E O D O O R E N T R Y S Y S T E M U S E R M A N U A L w w w .
-
Page 2: Table Of Contents
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 2 Contents System Components ..............3 Installation . -
Page 3: System Components

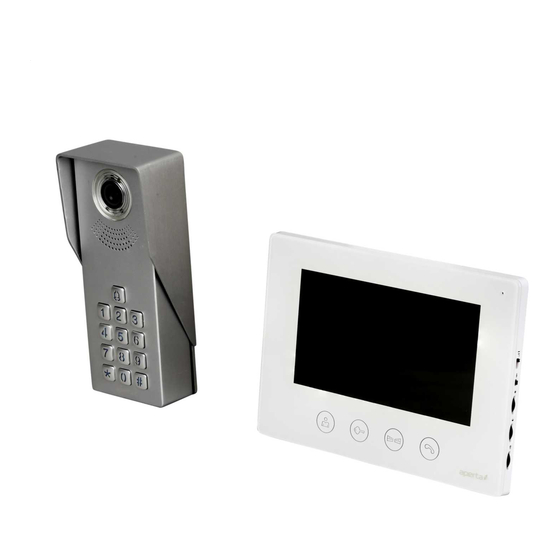

APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 3 System Components APDSSWKP APMONW APPOWSW Door Station Monitor System Power Supply Optional Accessories EVBPSBB EV-EXIT EV-EBG EV-ML-250/500XT ENTERD Lock Power Supply Push To Release Emergency Release Electro-magnetic Lock Electric Lock... -
Page 4: Installation
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 4 Installation 90 。 Site the door station a The camera needs to point in Avoid areas of high sunlight Surface mount the sunshield of the door station and recommended 1.5 meters from the direction of where a visitor and noise levels. -
Page 5: System Connections Example 1
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 5 System Connections Example 1 MASTER Set dipswitch 6 to ON All other switches set to OFF Total cable run should not exceed Power supply to be No cable 240vAC POWER 150 meters between... -
Page 6: System Connections Example 2
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 6 System Connections Example 2 The system power supply can support up to 5 devices SLAVE Total cable run should not exceed Power supply to be No cable 150 meters between with-in 100 meters... -
Page 7: Lock Connections Example 1
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 7 Lock Connections Example 1 Lock Connections Example 2 The jumpers on the rear of the door station The door station has a secondary Electro-magnetic lock Electronic lock offer different types of release modes for switch. -
Page 8: Door Station Programming Guide
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 8 Door Station Programming Guide Entering Administration Mode The Administrator Press 2 tones Press 2 tones code will not will sound will sound Administration release the door. Mode has been Input administrator A lock release code... - Page 9 APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 9 Deleting a lock release code Press 2 tones A long tone Press Enter Press Enter code will sound will sound Administration Location Number Mode to exit and complete setup Changing the Administrator code...
-
Page 10: User Guide
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 10 User Guide Preview Lock Gate Talk Press once to view Press once Press once Press once door station image to release lock to release lock 2 to talk to visitor Chime Volume: Slide switch for High, Medium and Low setting... -
Page 11: Installer's Guide
APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 11 Installer’s Guide When using multiple monitors on 1 system; Master / Slave Setting Only the 1 handset set as the MASTER will display an image when the door station is activated. All other monitors will ring, and will display the image once the ‘Talk’ button is pressed. - Page 12 APKITKP Manual.qxp_Layout 1 28/01/2016 11:45 Page 12 Telephone: 01527 51 51 50 Elite Security Products Fax: 01527 51 51 43 Unit 7, Target Park, Shawbank Rd email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. A16 w w w . e s p u k . c o m...
