Summary of Contents for ESP APKITKPGBLK

  • Page 1 A P K I T K P G B L K | C O L O U R V I D E O D O O R E N T R Y S Y S T E M U S E R M A N U A L w w w . e s p u k . c o m APKITKPGBLK Manual.indd 1 26/04/2017 14:02:19...
  • Page 2: Table Of Contents

    All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable. Part Number - A8NFORCE5EUTP Find this product online: elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable APKITKPGBLK Manual.indd 2 26/04/2017 14:02:19...
  • Page 3: System Components

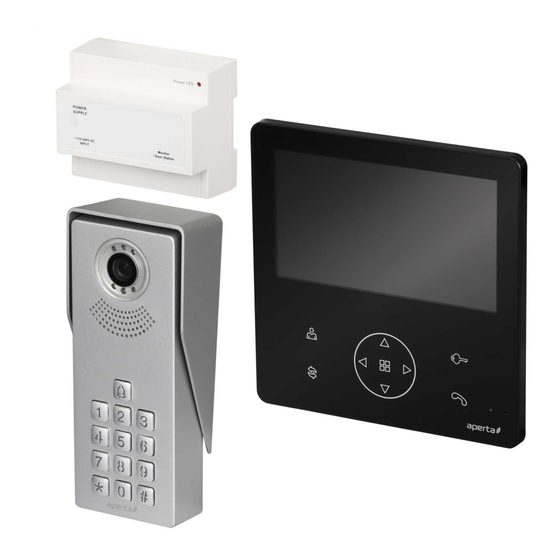

    System Components Door Station Monitor System Power Supply Optional Accessories EVBPSBB EV-EXIT EV-EBG EV-ML-250/500XT ENTERD Lock Power Supply Push To Release Emergency Release Electro-magnetic Lock Electric Lock APKITKPGBLK Manual.indd 3 26/04/2017 14:02:21...
  • Page 4: Installation

    Surface mount the bracket of the monitor or if required onto a 1-gang mount box (not supplied). Make the system connections to the back of the monitor and then slide the monitor onto the bracket using the hooks to hold firmly in place. APKITKPGBLK Manual.indd 4 26/04/2017 14:02:23...
  • Page 5: System Connections Example 1

    System Connections Example 1 The last monitor on the system line has the rear ‘K1’ switched ON APKITKPGBLK Manual.indd 5 26/04/2017 14:02:24...
  • Page 6: System Connections Example 2

    2. Please review page XXXX to set monitor to MASTER or SLAVE. 3. If di erent types of Monitor /handset are being used on the same system, please refer to the supplied instructions to adjust Master/ Slave settings . APKITKPGBLK Manual.indd 6 26/04/2017 14:02:26...
  • Page 7: Lock Connections Example 1 & 2

    APKITKPGBLK Manual.indd 7 26/04/2017 14:02:26...
  • Page 8: Door Station Programming Guide

    Mode door release For code location number > Press Press A long tone Press Re-enter 4 digit code required for will sound door release to exit and Continue complete setup APKITKPGBLK Manual.indd 8 26/04/2017 14:02:26...
  • Page 9 Changing the Administrator code Press Enter new 6 digit Press Press A long tone Press Enter Re-enter new Administration Administration 6 digit will sound Code Mode Administration Code to exit and complete setup APKITKPGBLK Manual.indd 9 26/04/2017 14:02:27...
  • Page 10: User Guide

    User Guide APKITKPGBLK Manual.indd 10 26/04/2017 14:02:27...
  • Page 11: Monitor Overview

    The following monitor instructions are designed to be a quick start guide alongside the informative general user interface (GUI) . The instructions are not exhaustive and are designed to lead the user quickly to the most often required aspects of the unit. APKITKPGBLK Manual.indd 11 26/04/2017 14:02:28...
  • Page 12: Setting Monitor As Master Or Slave (Default Master)

    3. Press the menu button and use 4. Press the menu button to save setting, and press the right arrow to toggle between the exit symbol twice. After 10 seconds the monitor returns Master and Slave position. back to standby. APKITKPGBLK Manual.indd 12 26/04/2017 14:02:28...
  • Page 13: Accessing Monitor Functions

    RING TONE INTERNAL CALL options Options for incoming, internal and optional door bell tone selections. RECORDING & VIEWING options can be found in the ‘SD Card Memory’ menu APKITKPGBLK Manual.indd 13 26/04/2017 14:02:28...
  • Page 14: Accessing Monitor Adjustments

    Accessing Monitor Adjustments 1. In standby mode press 2. During the preview press the menu button the preview button and the door station’s the adjustment controls will appear. image will display. APKITKPGBLK Manual.indd 14 26/04/2017 14:02:28...
  • Page 15: Installer's Guide

    C All system cabling is secured and properly connected. check the following; D All system cabling is clear of breaks or short circuits. E On the rear of the door station, ensure the lock output is switching when activated by the monitor. APKITKPGBLK Manual.indd 15 26/04/2017 14:02:28...
  • Page 16 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. D17 w w w . e s p u k . c o m APKITKPGBLK Manual.indd 16 26/04/2017 14:02:28...
