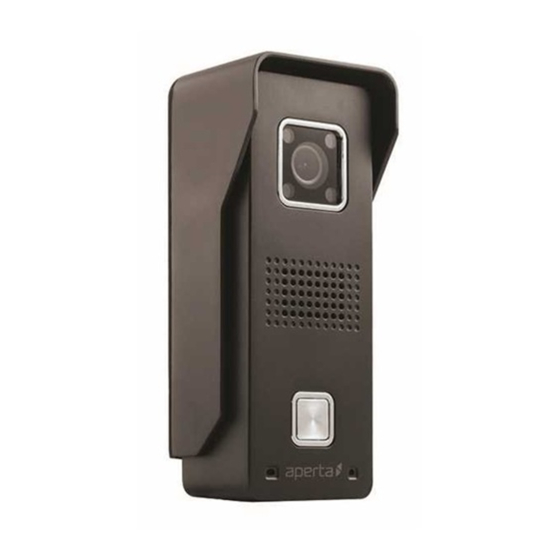

- Page 1 APWIFIDS │WI-FI DOOR STATION www.espuk.com J2474 ESP Instruction Manual APWIFIDS.indd 1 15/03/2017 11:20:14...
-
Page 2: System Overview
LAN terminal ■ 12vDC (500mA) power supply ■ Wire connectors ■ 10DB Wifi Antenna ■ ENTERD Screws and rawl plugs ■ Micro SD card (pre-installed) ■ Electric lock Hex key ■ Page 2 J2474 ESP Instruction Manual APWIFIDS.indd 2 15/03/2017 11:20:15... - Page 3 Antenna Purple Output for lock Yellow (Volt-free) White Output for doorbell Grey (Volt-free) Orange Orange & White connection (Not required Green for Wifi use) Green & White *See advanced settings Page 3 J2474 ESP Instruction Manual APWIFIDS.indd 3 15/03/2017 11:20:15...
-
Page 4: Installation
Mount the camera to the sunsheild by fixing with the supplied hex screw. All system connections are to be made inside the building, this includes the siting of the antenna. Page 4 J2474 ESP Instruction Manual APWIFIDS.indd 4 15/03/2017 11:20:15... -
Page 5: System Setup
Rear of door If the tamper alert is activated the alarm will station sound for 60 seconds, or bypassed by powering down for 10 seconds Page 5 J2474 ESP Instruction Manual APWIFIDS.indd 5 15/03/2017 11:20:15... - Page 6 Step One: Connect the Antenna and power supply to the door station. Apply power. The Micro SD card is pre-installed and is not accessible. Antenna Power supply Page 6 J2474 ESP Instruction Manual APWIFIDS.indd 6 15/03/2017 11:20:15...
- Page 7 5 seconds using the supplied reset pin tool. A ‘ching’ tone alerts the reset has been successful. After 60 seconds the registration tone will sound every 5 seconds. Page 7 J2474 ESP Instruction Manual APWIFIDS.indd 7 15/03/2017 11:20:15...
- Page 8 Step Three: Download the required APP by searching for ESP Aperta on the APP market. Once installed open the APP and allow any notifications to be enabled; Page 8 J2474 ESP Instruction Manual APWIFIDS.indd 8 15/03/2017 11:20:16...
- Page 9 Step Four: Follow the on screen instructions to register an account; 1. Input your email Please remember your ID 2. Input your ID password Page 9 J2474 ESP Instruction Manual APWIFIDS.indd 9 15/03/2017 11:20:16...
- Page 10 Login to the APP Select In the Device list Check the network selected is correct Select the ‘Tool’ symbol ‘Set Wi-Fi By QR code’ Network’s Name Input your wifi password, then tap ‘Next’. Page 10 J2474 ESP Instruction Manual APWIFIDS.indd 10 15/03/2017 11:20:16...
- Page 11 Present the QR code to the Door station lens ( Appox. 15cm) DING “ ” When the door station confirmation tone is heard select ‘Heard’ on the APP screen; After you hear the sound ‘DING’ Page 11 J2474 ESP Instruction Manual APWIFIDS.indd 11 15/03/2017 11:20:16...
- Page 12 1. After 60 seconds refresh the Device List by sliding down on the screen and the Door 3. Input default password: 123 and select Save. Station ID will appear. 2. Select the green plus symbol. Page 12 J2474 ESP Instruction Manual APWIFIDS.indd 12 15/03/2017 11:20:16...
- Page 13 Step Eight: Review APP alarm settings by tapping on the the Door Station ID on the device list, Select Alarm settings and ensure enable ‘Alarm Push’ Page 13 J2474 ESP Instruction Manual APWIFIDS.indd 13 15/03/2017 11:20:16...
- Page 14 Press the call button on the Door Station to test alerts Android APP Operation IOS APP Operation Step 1: Step 2: Step 3: If test is successful; retest Door Station in installation position before fixing. Page 14 J2474 ESP Instruction Manual APWIFIDS.indd 14 15/03/2017 11:20:16...
-
Page 15: App Operation
APP Operation During a Connection Lock release Press and hold for 3 Reserved for future seconds to activate function doorstation lock output Disable Image End call audio snapshot Page 15 J2474 ESP Instruction Manual APWIFIDS.indd 15 15/03/2017 11:20:17... -
Page 16: Adding A New User
Install the APP on the new user’s smart phone and register an account; Enter the door station’s Enter the password Select ‘+’ Select ‘Manual’ ID and select ‘save’ and select ‘save’ Page 16 J2474 ESP Instruction Manual APWIFIDS.indd 16 15/03/2017 11:20:17... - Page 17 Door Station. Another solution is to use the LAN connection facility where applicable. ESP are unable to guarantee that every device will be compatible with any ESP product and In addition, network connection for all software supplied.Specific models of phone,...
-
Page 18: Support Guide
Wifi antenna 10DB Size L55 x W40 x H129mm Power supply DC 12V 500mA <12W Max. current of relay’s <3A Working Humidity 10% ~ 80% no condensation IP level IP65 Page 18 J2474 ESP Instruction Manual APWIFIDS.indd 18 15/03/2017 11:20:17... -
Page 19: Lan Connection
LAN connector LAN setup 3. Input your device name 1. Slide down to refresh and find device 4. Input your device 2. Click to add device password, then tap ‘Save’. Page 19 J2474 ESP Instruction Manual APWIFIDS.indd 19 15/03/2017 11:20:17... - Page 20 Telephone: 01527 51 51 50 Elite Security Products Fax: 01527 51 51 43 Unit 7, Target Park, Email: info@espuk.com Shawbank Road, Lakeside, www.espuk.com Redditch B98 8YN E&OE - Errors and omissions excepted.L16 J2474 ESP Instruction Manual APWIFIDS.indd 20 15/03/2017 11:20:17...
