  • Page 1 APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 1 P D S M W | M U L T I W A Y V I D E O D O O R S T A T I O N U S E R M A N U A L w w w .

  • Page 2: Table Of Contents

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 2 Contents System Components ..............3 Installation .

  • Page 3: System Components

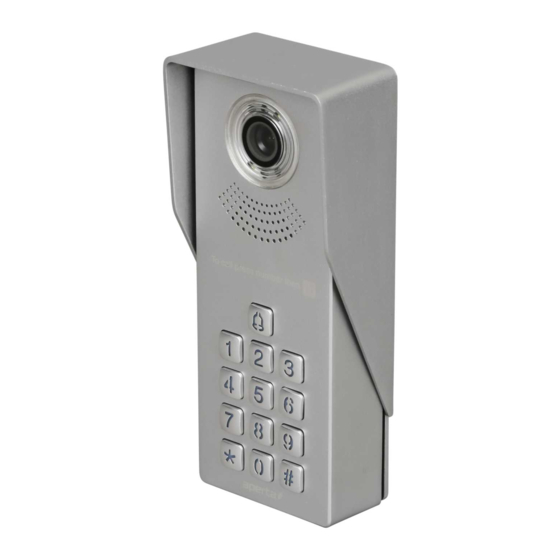

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 3 System Components APDSMW APPOWMW APSEPMW APBC4MW Multi-Way Door Station System Power Supply Unit Power Supply Seperator System Branch Controller Installation 90 。 Site the door station a The camera needs to point in Avoid areas of Surface mount the sunshield of the door station and recommended 1.5 meters from...

  • Page 4: Door Station Wiring Example 1

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 4 Door Station Wiring Example 1 System PSU Address ID Each monitor requires the following: Set up as a Master or Slave SLAVE 240vAC Set up with a unique Address ID: 01-32 Address ID Address ID Address ID System PSU...

  • Page 5: Door Station Wiring Example 2

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 5 Door Station Wiring Example 2 System PSU Address ID Address ID Address ID Address ID Each monitor requires the following: Set up as a Master or Slave Set up with a unique Address ID: 01-32 Address ID Address ID Address ID...

  • Page 6: Lock Connection Example 1

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 6 Lock Connection Example 1 Electro-magnetic lock Electronic lock Lock -release time N.C for Electro-magnetic lock N.O for Electronic lock At the rear of the door station ensure that the jumper links cover pins 1 and 2, on both J3 and J2 positions LOCK1 System Wiring...

  • Page 7: Lock Connection Example 2

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 7 Lock Connection Example 2 The door station has a secondary switch. types of release modes for alternative applications LOCK2 options; dependent on the jumper link settings. LOCK1 options; Volt-free Volt-free Volt-free Volt-free Image of Image of jumper link jumper link...

  • Page 8: Door Station Programming Guide

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 8 Door Station Programming Guide Entering Administration Mode The Administrator Press 2 tones Press 2 tones code will not will sound will sound Administration release the door. Mode has been Input administrator A lock release code entered code is required to be...
  • Page 9 APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 9 Door Station Programming Guide Deleting a lock release code 2 tones Press A long tone Press Enter Press Enter code will sound will sound Administration Location Number Mode to exit and complete setup Changing the Administrator code Enter Press...

  • Page 10: Door Station Keypad User Guide

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 10 Door Station Keypad User Guide Making a visitors call Press Address ID Press ‘Bell’ Tones will sound number of monitor symbol to call until call Refer to monitor’s is answered instructions for Begin conversation further options when call is accepted...

  • Page 11: Installer's Troubleshooting Guide

    APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 11 Installer’s troubleshooting Guide In the event of no video A That the system is powered sufficiently. or audio signals coming B Each monitor needs to have set an Address ID, set to a master or slave position and from the monitor, or if the configured Video Match switch.
  • Page 12 APDSMW Manual.qxp_Layout 1 29/01/2016 13:01 Page 12 Telephone: 01527 51 51 50 Elite Security Products Fax: 01527 51 51 43 Unit 7, Target Park, Shawbank Rd email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. A16 w w w . e s p u k . c o m...
