- Page 1 E Z T A G 3 | P R O X I M I T Y A N D K E Y P A D D O O R E N T R Y U S E R M A N U A L w w w .
-
Page 2: System Components

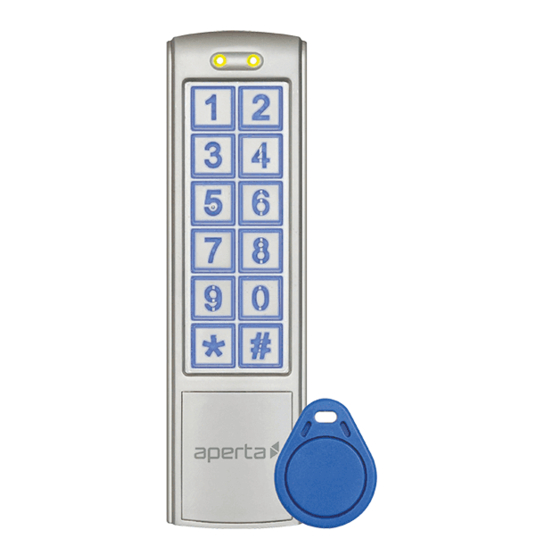

System Components Proximity and Keypad Reader 10 x Proximity Tags 1 x Hex Key 4 x Plastic wall plug 4 x Countersunk screws 1 x Diode and 1 x Capacitor Optional Accessories EVBPSBB EV-EXIT EV-EBG EV-ML-250/500XT ENTERD Lock Power Supply Push to Release Emergency Release Electro-magnetic Lock... -
Page 3: Table Of Contents
Contents Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 EZTAG3 Wiring Example 1 . -
Page 4: Installation
Installation Release hex screw from (Side View) the bottom of the keypad Push the keypad up to release from mount plate Thread system cable through the cable entry hole then make the system connections (as per the wiring diagram), mount the bracket to the surface and slide the keypad to the mountplate, re-fit the hex screw to secure into position. -
Page 5: Eztag3 Wiring Example 1
EZTAG3 Wiring Example 1 Indication LEDs Electro-magnetic lock Electronic lock Capacitor for Electro-magnetic lock Diode for Electronic Lock Lock -release time N.C for Electro-magnetic lock N.O for Electronic lock Black Green Purple Grey Pink Tag Reader EZTAG3 Wiring Example 2 Indication LEDs +12V - +24V Input DC:... -
Page 6: How To Set-Up Access Pin Number
How to set-up Access Pin Number Step Keypad Action Number Indication Enter Long Programming Tone (Default) Long Tone Enter a starting Double 0 0 0 9 9 9 location number Tone Enter a 4 digit pin Long (1234 not be used) Tone To end programming How to set-up Access Tags... -
Page 7: Deleting Access Pin Or Tag
Deleting Access Pin or Tag Step Keypad Action Number Indication Enter Long Programming Tone (Default) Enter the location 0 0 0 9 9 9 number of tag/pin To delete To end programming Changing Programming Pin Step Keypad Action Number Indication Enter Long Programming... -
Page 8: Clear All Pin And Tag Data
Clear all Pin and Tag Data Step Keypad Action Number Indication Enter Long Programming Tone (Default) Long Tone To end programming Default to Factory Settings Step Keypad Action Number Indication Enter Long Programming Tone (Default) Long Tone To end programming EZTAG3 Manual_Layout 1.indd 8 18/11/2016 15:28:09... -
Page 9: Lock 1 Output Operating Time
Lock 1 Output Operating Time Step Keypad Action Number Indication Enter Long Programming Tone (Default) Long Enter number Tone of seconds 00-99 To end programming Enable ‘Door Bell’ Facility Step Keypad Action Number Indication Enter Long Programming Tone (Default) Long To enable To disable Tone... -
Page 10: Enable 'Tamper Alarm' Facility
Enable ‘Tamper Alarm’ facility Step Keypad Action Number Indication Enter Long Programming Tone (Default) Long To enable To disable Tone To end programming Tamper alarm activates the keypad’s internal buzzer and ‘door bell’ output if the light sensor is exposed Access Pin Number for Lock 2 Output Step Keypad... -
Page 11: Deleting Access Pin For Lock 2
Deleting Access Pin for Lock 2 Step Keypad Action Number Indication Enter Long Programming Tone (Default) Enter the location number of pin To delete To end programming Lock Output Operating Time for Lock 2 Output Step Keypad Action Number Indication Enter Long Programming... -
Page 12: System Setup Record
To assist in future programming, it is recommended that a record is made of the system setup. System Location Tag Serial Tag Owner Notes Number (000-999) Number EZTAG3 Manual_Layout 1.indd 12 18/11/2016 15:28:10... - Page 13 System Location Tag Serial Tag Owner Notes Number (000-999) Number EZTAG3 Manual_Layout 1.indd 13 18/11/2016 15:28:10...
-
Page 14: User Guide
User Guide To release Lock 1 To access programming mode Enter a programmed Present a (Default) Access Pin number registered tag Technical Specification DC input 12 - 24volts Working temperature -20c to +50c AC input 12 - 24volts Reader frequency 125KHz Standby current 80ma... - Page 15 EZTAG3 Manual_Layout 1.indd 15 18/11/2016 15:28:10...
- Page 16 Elite Security Products Telephone: 01527 51 51 50 Fax: 01527 51 51 43 Unit 7, Target Park, Shawbank Rd email: info@espuk .com Lakeside, Redditch B98 8YN w w w . e s p u k . c o m EZTAG3 Manual_Layout 1.indd 16 18/11/2016 15:28:10...
