- Page 1 APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 1 P D S S W K P | S I N G L E W A Y V I D E O D O O R S T A T I O N W I T H K E Y P A D U S E R M A N U A L w w w .
-
Page 2: Table Of Contents
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 2 Contents System Components ..............3 Installation . -
Page 3: System Components

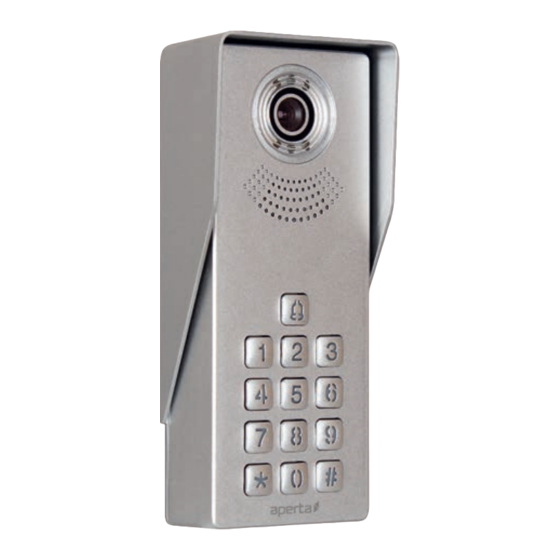

APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 3 System Components APDSSWKP Door Station Optional Accessories APMONW/ APMONB APMONWG / APMONBG EVBPSBB EV-EXIT EV-EBG EV-ML-250/500XT ENTERD Monitor white/black Monitor white/black Lock Power Supply Push To Release Emergency Release Electro-magnetic Lock Electric Lock... -
Page 4: Installation
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 4 Installation Site the door station a recommended 1.5 meters from the ground, or to suit application. 90 。 The camera needs to point in the Avoid areas of high sunlight Surface mount the sunshield of the door station and connect direction of where a visitor will and noise levels. -
Page 5: System Connections Example 1
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 5 System Connections Example 1 Refer to instructions supplied MASTER with monitor for MASTER/ SLAVE configuration Total cable run should not exceed Power supply to be No cable 240vAC POWER 150 meters between with-in 100 meters or connection SUPPLY INPUT... -
Page 6: System Connections Example 2
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 6 System Connections Example 2 The system power supply can support up to 5 devices SLAVE Total cable run should not exceed Power supply to be No cable 150 meters between with-in 100 meters or connection door station and monitor of monitor... -
Page 7: Lock Connections Example 1
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 7 Lock Connections Example 1 Lock Connections Example 2 The jumpers on the rear of the door station The door station has a secondary Electro-magnetic lock Electronic lock offer different types of release modes for switch. -
Page 8: Door Station Programming Guide
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 8 Door Station Programming Guide Entering Administration Mode The Administrator Press 2 tones Press 2 tones code will not will sound will sound Administration release the door. Mode has been Input administrator A lock release code code entered is required to be... - Page 9 APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 9 Deleting a lock release code Press 2 tones A long tone Press Enter Press Enter code will sound will sound Administration Location Number Mode to exit and complete setup Changing the Administrator code Press Enter new 6 digit Press...
-
Page 10: User Guide
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 10 User Guide The visitor presses the call button Press the ‘Talk’ A chime will sound The visitor’s image will button and appear on the monitor begin conversation Then choose between these 3 options Press the Press the ‘Lock’... -
Page 11: Installer's Guide
APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 11 Installer’s Guide When using multiple monitors on 1 system; Master / Slave Setting Only the 1 handset set as the MASTER will display an image when the door station is activated. All other monitors will ring, and will display the image once the ‘Talk’ button is pressed. In the event of no video A That the system is powered sufficiently. - Page 12 APDSSWKP Manual.qxp_Layout 1 29/01/2016 13:00 Page 12 Telephone: 01527 51 51 50 Elite Security Products Fax: 01527 51 51 43 Unit 7, Target Park, Shawbank Rd email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. A16 w w w . e s p u k . c o m...
