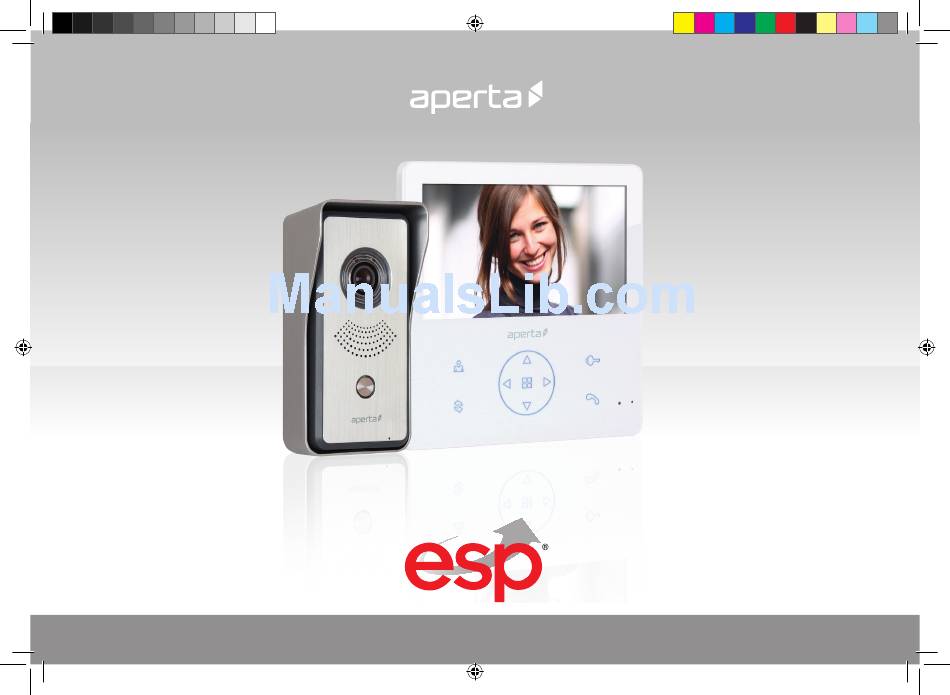

- Page 1 A P K I T G | C O L O U R V I D E O D O O R E N T R Y S Y S T E M U S E R M A N U A L w w w . e s p u k . c o m APKITG Manual.indd 1 26/04/2017 09:43:25...
-
Page 2: Table Of Contents
All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable. Part Number - A8NFORCE5EUTP Find this product online: elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable APKITG Manual.indd 2 26/04/2017 09:43:26... -
Page 3: System Components
System Components Door Station Monitor System Power Supply Optional Accessories EVBPSBB EV-EXIT EV-EBG EV-ML-250/500XT ENTERD Lock Power Supply Push To Release Emergency Release Electro-magnetic Lock Electric Lock APKITG Manual.indd 3 26/04/2017 09:43:28... -
Page 4: Installation
Surface mount the bracket of the monitor or if required onto a 1-gang mount box (not supplied). Make the system connections to the back of the monitor and then slide the monitor onto the bracket using the hooks to hold firmly in place. APKITG Manual.indd 4 26/04/2017 09:43:29... -
Page 5: System Connections Example 1
System Connections Example 1 The last monitor on the system line has the rear ‘K1’ switched ON APKITG Manual.indd 5 26/04/2017 09:43:30... -
Page 6: System Connections Example 2
2. Please review page XXXX to set monitor to MASTER or SLAVE. 3. If di erent types of Monitor /handset are being used on the same system, please refer to the supplied instructions to adjust Master/ Slave settings . APKITG Manual.indd 6 26/04/2017 09:43:31... -
Page 7: Lock Connections Example 1
N.O for Electronic lock At the rear of the door station LOCK1 ensure that the jumper links cover pins 1 and 2, on both J3 and J2 positions J1 J2 System Wiring Image of jumper link APKITG Manual.indd 7 26/04/2017 09:43:32... -
Page 8: Lock Connections Example 2
Volt-free Volt-free Image of Image of jumper link jumper link Volt-free Volt-free 12vDC300mA 12vDC300mA Jumper 1 gives the option to set the release time; Please refer to the operation guide for release instructions sec. sec. APKITG Manual.indd 8 26/04/2017 09:43:33... -
Page 9: User Guide
User Guide APKITG Manual.indd 9 26/04/2017 09:43:33... -
Page 10: Monitor Overview
The following monitor instructions are designed to be a quick start guide alongside the informative general user interface (GUI) . The instructions are not exhaustive and are designed to lead the user quickly to the most often required aspects of the unit. APKITG Manual.indd 10 26/04/2017 09:43:33... -
Page 11: Setting Monitor As Master Or Slave (Default Master)
3. Press the menu button and use 4. Press the menu button to save setting, and press the right arrow to toggle between the exit symbol twice. After 10 seconds the monitor returns Master and Slave position. back to standby. APKITG Manual.indd 11 26/04/2017 09:43:34... -
Page 12: Accessing Monitor Functions
RING TONE INTERNAL CALL options Options for incoming, internal and optional door bell tone selections. RECORDING & VIEWING options can be found in the ‘SD Card Memory’ menu APKITG Manual.indd 12 26/04/2017 09:43:34... -
Page 13: Accessing Monitor Adjustments
Accessing Monitor Adjustments 1. In standby mode press 2. During the preview press the menu button the preview button and the door station’s the adjustment controls will appear. image will display. APKITG Manual.indd 13 26/04/2017 09:43:34... -
Page 14: Installer's Guide
C All system cabling is secured and properly connected. check the following; D All system cabling is clear of breaks or short circuits. E On the rear of the door station, ensure the lock output is switching when activated by the monitor. APKITG Manual.indd 14 26/04/2017 09:43:34... - Page 15 APKITG Manual.indd 15 26/04/2017 09:43:34...
- Page 16 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. D17 w w w . e s p u k . c o m APKITG Manual.indd 16 26/04/2017 09:43:34...
