Summary of Contents for ESP Aperta APKITKPBLK

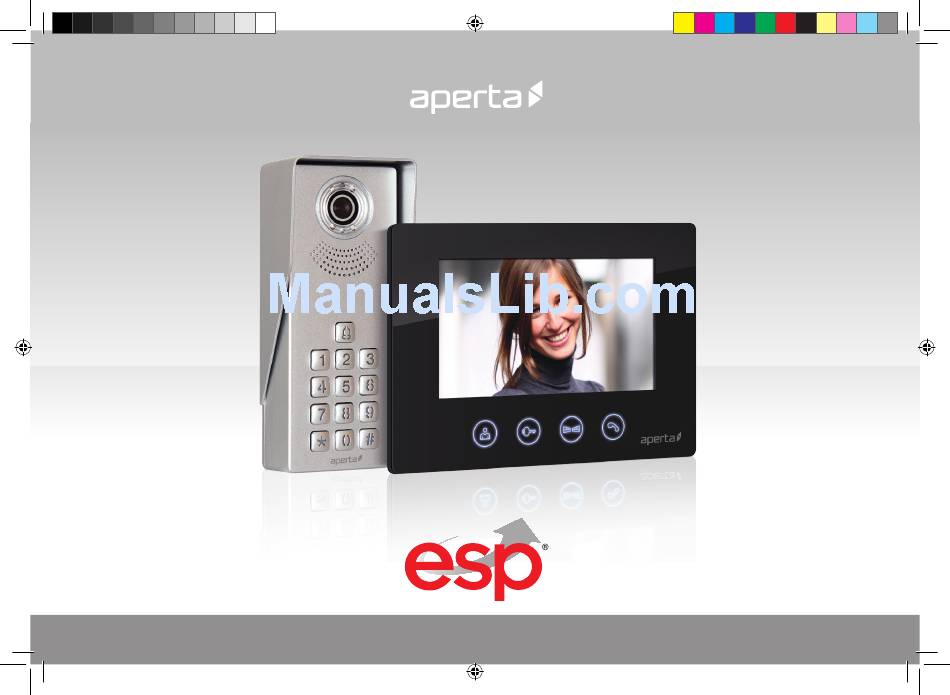

- Page 1 A P K I T K P B L K | C O L O U R V I D E O D O O R E N T R Y S Y S T E M U S E R M A N U A L w w w .
-
Page 2: Table Of Contents
Contents System Components ............. . . 3 Installation . -
Page 3: System Components
System Components Door Station Monitor System Power Supply Optional Accessories EVBPSBB EV-EXIT EV-EBG EV-ML-250/500XT ENTERD Lock Power Supply Push To Release Emergency Release Electro-magnetic Lock Electric Lock APKITKPBLK Manual.indd 3 26/04/2017 10:00:17... -
Page 4: Installation
Installation 90 。 Site the door station a The camera needs to point in Avoid areas of high sunlight Surface mount the sunshield of the door station and recommended 1.5 meters from the direction of where a visitor and noise levels. connect the system cabling. -
Page 5: System Connections Example 1
System Connections Example 1 Dip switch 6 set to ON when device is at the end of system line. Dip switch 7 set to OFF to select monitor as the ‘Master’ Only one monitor on the system can be the ‘Master’ APKITKPBLK Manual.indd 5 26/04/2017 10:00:19... -
Page 6: System Connections Example 2
System Connections Example 2 END OF LINE Last monitor on system line has dip switch 6 set to ON END OF LINE= When using di erent style monitors on the same system, please refer to supplied instruction to con gure Master , Slave and End of line position. -
Page 7: Lock Connections Example 1
Lock Connections Example 1 Lock Connections Example 2 The jumpers on the rear of the door station The door station has a secondary Electro-magnetic lock Electronic lock offer different types of release modes for switch. LOCK2 options; alternative applications dependent on the jumper link settings. -
Page 8: Door Station Programming Guide
Door Station Programming Guide Entering Administration Mode The Administrator Press 2 tones Press 2 tones code will not will sound will sound Administration release the door. Mode has been Input administrator A lock release code entered code is required to be (Default: 123456) programmed Setting a lock release code... - Page 9 Deleting a lock release code 2 tones Press A long tone Press Enter Press Enter code will sound will sound Administration Location Number Mode to exit and complete setup Changing the Administrator code Press Enter new 6 digit Press Press A long tone Press Enter...
-
Page 10: User Guide
User Guide Preview Lock Gate Talk Press once to view Press once Press once Press once door station image to release lock to release lock 2 to talk to visitor Chime Volume: Slide switch for High, Medium and Low setting Chime Selection: Press button to select chime melody Monitor Brightness: Adjustment for brightness levels Monitor Chroma: Adjustment for the intensity of colour... -
Page 11: Installer's Guide
Installer’s Guide When using multiple monitors on 1 system; Master / Slave Setting Only the 1 handset set as the MASTER will display an image when the door station is activated. All other monitors will ring, and will display the image once the ‘Talk’ button is pressed. In the event of no video A That the system is powered sufficiently. - Page 12 Elite Security Products Telephone: 01527 51 51 50 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. D17 w w w . e s p u k . c o m APKITKPBLK Manual.indd 12 26/04/2017 10:00:24...
