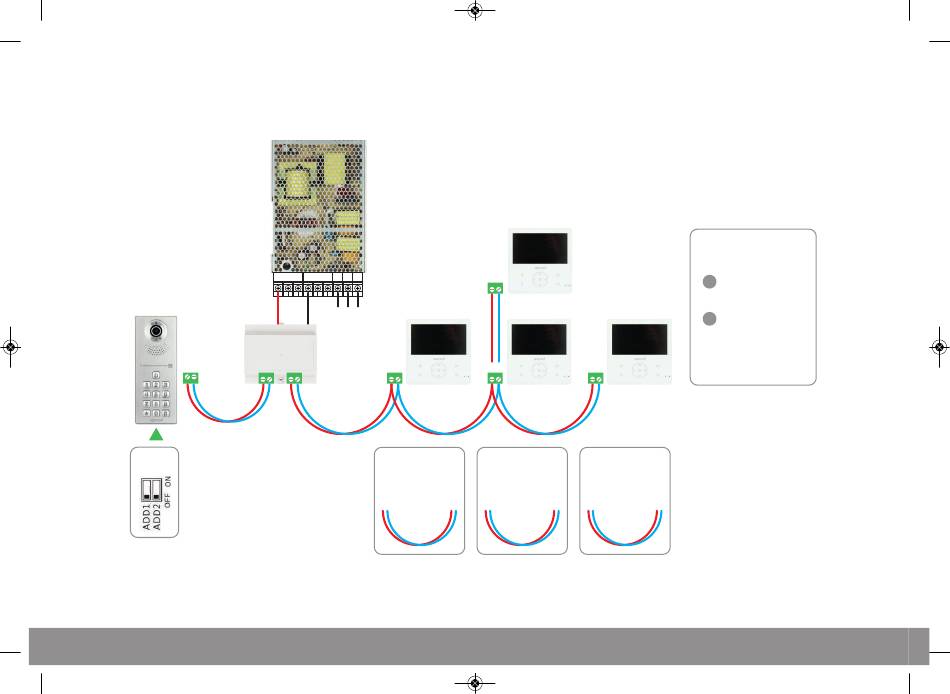

Door Station Wiring Example 1

BUS
Address ID
01
Ensure the Address ID
switches are both set
to OFF
4
System PSU
+V -V E L N
240vAC
Address ID
System PSU
Seperator
BUS
MASTER
Cable run between
door station and
furthest monitor
should not exceed
150 meters
Address ID
02
BUS
SLAVE
Address ID
01 02
BUS BUS
MASTER
Power supply
to be with-in No cable
100 meters or connection
of monitor polarity
Each monitor requires
the following:
1 Set up as a Master
or Slave
Set up with a unique
2
Address ID: 01-32
Address ID
03
Refer to the monitor's
specific Set up guide
MASTER
