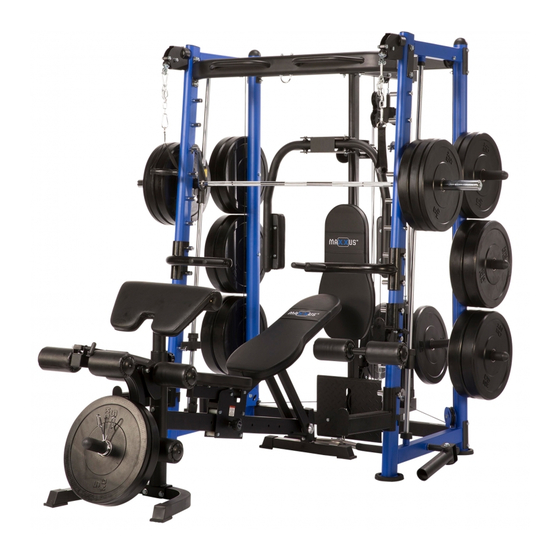

Summary of Contents for Maxxus Multipress 9.1

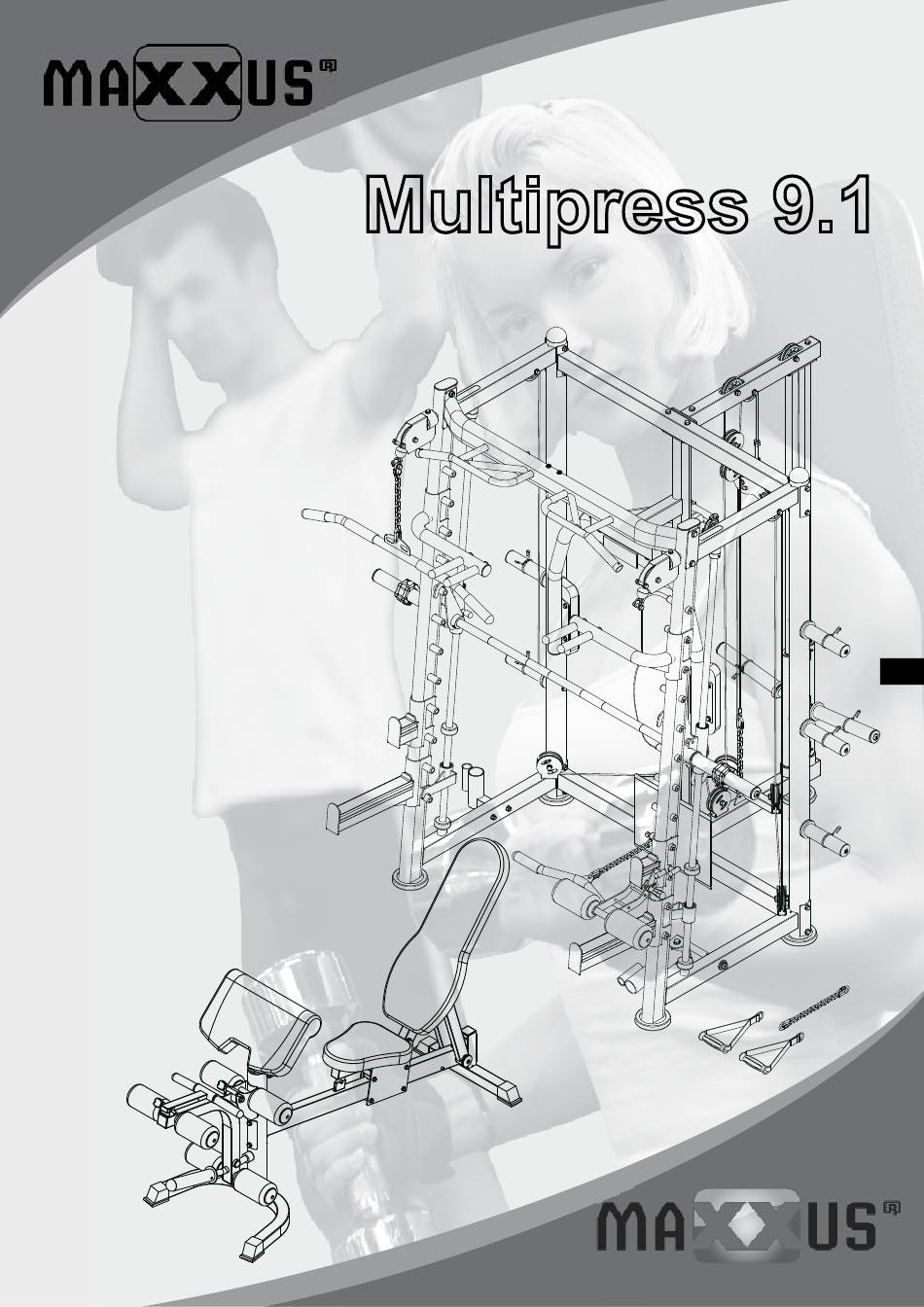

- Page 1 Multipress 9.1 Installation Manual...
-
Page 2: Table Of Contents
Maxxus Group GmbH & Co. KG. Errors, colour and technical modification subject to change, reproduction as well as electronic duplication only with written permission of MAXXUS Group GmbH & Co. KG. -
Page 3: Safety Instructions
Any manipulation of or interference with the device can cause damage to the device and be a danger to people. If you have any questions or queries contact your specialist dealer or the MAXXUS Service Team and they will be... -
Page 4: Scope Of Delivery - Multipress
Scope of Delivery - Multipress... - Page 5 Scope of Delivery - Multipress...
-
Page 6: Scope Of Delivery - Multipress
Scope of Delivery - Multipress Traction Cable (55) – Length 2,2515 mm Traction Cable (60) – Length 3,100 mm Traction Cable (69) Length 3,590 mm Traction Cable (61) – Length 10,215 mm Hand Grip Pulley Bar, long Pulley Bar, short... -
Page 7: Assembly - Multipress
Assembly - Multipress Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and heavy. Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered. Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assembly are not covered by the warranty or guarantee. - Page 8 Assembly - Multipress Assembly Step 2 Hang the barbell bar (16) with the holding hooks onto the left and righthand side-frames. From the top, slide the following onto the guide pipe (17): guide element, left (18) – rubber stop, round (25) -safety hook, left (26) – rubber stop, round (25) - also see Circular Section Diagram for this.
- Page 9 Assembly - Multipress Assembly Step 3 Place the stand pipe with foot (29) on the rear side of the cross bar assembled in Step 1 and screw them togeth- er using a M12x30 (37), two spring washers Ø12 (38) and two washers Ø12 (12). Put the butterfly base frame (28) onto the pipe junction of the lower cross bar and the stand pipe (29) and screw them together using three hexagonal head screws M10x90 (39), six washers Ø10 (9) and three safety nuts M10 (10).
- Page 10 Assembly - Multipress Assembly Step 4 Fix the connecting piece (42) to the butterfly base pipe using four hexagonal head screws M10x25 (50), four spring washers Ø10 (51) and four washers Ø10 (9). Put the left butterfly arm (43) in the left mount on the connecting piece (42) and fix it from the top with a washer Ø16 (49) and a nut M16 (48).
- Page 11 Assembly - Multipress Assembly Step 5 Loosen and take out the three single rollers (R1, R2 & R4) from the frame. Connect the end of the traction cable (55) to the mount on the weight slide. Feed the traction cable (55) through the single roller (R1) and mount the single roller (R1) back onto the T-frame.
- Page 12 Assembly - Multipress Assembly Step 5...
- Page 13 Assembly - Multipress Assembly Step 6 Loosen both single rollers (R1 & R2) on the rear side of the butterfly base frame. Hang the eyelet at the end of the traction cable (60) onto the hook on the left butterfly arm. Feed the traction cable (60) over the single roller (R1) and re-mount it back onto the butterfly base frame.
- Page 14 Assembly - Multipress Assembly Step 6...
- Page 15 Assembly - Multipress Assembly Step 7 Before you start with this step, remove the distance ball on one end of the traction cable (61). To do this loosen the nut and remove the hexagonal head screw. Then loosen the U-bracket from the end of the cable. Now you can remove the distance ball and the rounded holder.
- Page 16 Assembly - Multipress Assembly Step 7...
- Page 17 Assembly - Multipress Assembly Step 8 Attach foot plate (68) using the hexagonal screws M10x25 (50) and two washers Ø10 (9) to the lower cross- pipe. Dismantle the distance ball from the end of pulley cable (69) by loosening the nut and removing the hexagonal screw.
- Page 18 Assembly - Multipress Assembly Step 8...
- Page 19 Assembly - Multipress Assembly Step 9 Attach the back cushion (73) to the butterfly base frame using two hexagonal head screws M8x100 (72) and two washers Ø8 (47). Fix the fixed dumbbell bar brackets (74) from the outside onto the lower frame pipe on the side frame. To do this use two hexagonal head screws M10x70 (54), four washers Ø10 (9) and two safety nuts M10 (10).
- Page 20 Assembly - Multipress Assembly step 10 Attach three Weight Plate Brackets (75) from the outside of the rear upright Frame tubes of the right and left side frame using one Hex head bolt M10x25 (50) and washer Ø10 (9) for each bracket.
- Page 21 Assembly - Multipress Equipment Attach the leg press frame (79) with the round head locking pin (80) and T shape pin Ø10x100mm (81) to the short barbell shelf (78). Then put the holes of the shelf (78) in the desired position on the front spar of right or left side frame and fix them there with the T shape pin Ø10x75 (82).
-
Page 22: Assembly - Multipress
Assembly - Multipress Storage and securing for free barbell training, long version Handles for dips and pushups Individual handles - 2 pieces... -
Page 23: Assembly - Training Bench
Assembly - Training Bench Assembly step 1 Attach the rear bottom tube (2) to the base pipe (3) with two hexagon bolts M10x75 (6), four washers Ø10 (33), two locknuts M10 (52) and the straight retaining plate (7). Then place the standpipe (51) on the front floor pipe (1) and secure it with two Hexagon bolts M12x75 (55), four washers Ø12 (54) and two locknutsM12 (53). - Page 24 Assembly - Training Bench Assembly step 3 Attach the base frame (18) to the front slot of the slide (16) using two hexagon bolts M8x20 (19), two washers Ø8 (32) and one spacer tube (30). Assembly step 4 Attach the swivel bar (35) with two M10x20 hex screws (39), two washers Ø10 (33) and the spacer tube (42) on the front mount of the standpipe (51) and secure it with the locking pin (59).
- Page 25 Assembly - Training Bench Assembly step 5 Insert the three cross tubes (37) - as shown in the picture - in the swivel bar or in the base. Slide one cover (large opening) (48) with the open side out (see illustration) on each end of the tubes (37). Then slide one round cushion (47) from each of the right and left of each of these three cross tubes (37) and secure each with a cover (small opening) (49) and one hexagon bolt M8x25 (50).
-
Page 26: Assembly - Training Bench
Assembly - Training Bench Assembly step 7 Attach the back cushion (29) with four M8x20 hex screws (19) and four washers Ø8 (32)to the sup- port tube of the backrest (17) Assembly step 8 Attach the seat cushion (31) with four M8x20 hex screws (19) and four washers Ø8 (32) to the sliding carriage (16). -
Page 27: Care, Cleaning & Maintenance
Alternatively, you can use the MAXXUS® degreaser spray (optionally available). After this, dry the guide pipes off thoroughly and lubricate them with MAXXUS®... -
Page 28: Training Recommendations
Training Recommendations Preparation Before Training Before you start training make sure that not only your training device is in perfect condition, your body must also be pre- pared for training. Therefore, if you have not done any endurance training for some time, you should consult your GP and undergo a fitness check-up. -
Page 29: Training Recommendations
Training recommendations Intake of Liquids The intake of sufficient liquids before and during training is vital. During a 60-minute training session it is possible to lose up to 0.5 litres of liquid. To compensate for this loss, you can drink a mix of one third apple juice to two thirds water to replace all electrolytes and min- erals which your body loses through sweat. -
Page 30: Parts List - Multipress
Parts List – Multipress Part Description Type back ground link tube left frame right frame back up link tube front up link tube reinforcing plate 140x59xt3.0 reinforcing plate 160x60xt4.0 hexagon bolt M10x100 washer lock nut hexagon bolt M12x75 washer lock nut barbell bar guide rod F25x1850... - Page 31 Parts List – Multipress Part Description Type arm extension left arm extension right arm cushion hexagon bolt M8x20 washer lock nut washer hexagon bolt M10x25 spring washer pulley F95xF10.5x25.4 powder metallurgy F20xF16xF hexagon bolt M10x70 cable L=2515mm double pulley bracket "-"...
-
Page 32: Parts List - Multipress
Parts List – Multipress Part Description Type T shape pin F10x75 dip bar left dip bar right long barbell bar handle belt pipe F48x298x2.5T pipe F50x310xT0.5... -
Page 33: Exploded Drawing - Training Bench
Exploded Drawing – Training Bench... -
Page 34: Parts List - Training Bench
Parts List – Training Bench Part Description ENG Type floor pipe, front bottom tube, rear base pipe retaining plate, curved T3,0x59x140 Hex bolt M10x100 Hex bolt M10x75 retaining plate, straight T4,0x50x140mm Turn handle screw with grid pin M18x1.5mm Locking pin sliding carriage Support tube for backrest base frame for seat cushion... -
Page 35: Warranty
The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased directly from the MAXXUS Group GmbH & Co. KG, or one of the MAXXUS Group GmbH & Co. KG direct and authorised distribution partners. - Page 36 Notes...
-
Page 37: Repairs Contract / Notification Of Damage Claim
I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled immediately. - Page 38 Maxxus Group GmbH & Co. KG Zeppelinstr. 2 D-64331 Weiterstadt Germany E-Mail: info@maxxus.de www.maxxus.de...
