Maxxus Multipress 9.1 Installation Manual page 13

Assembly - Multipress

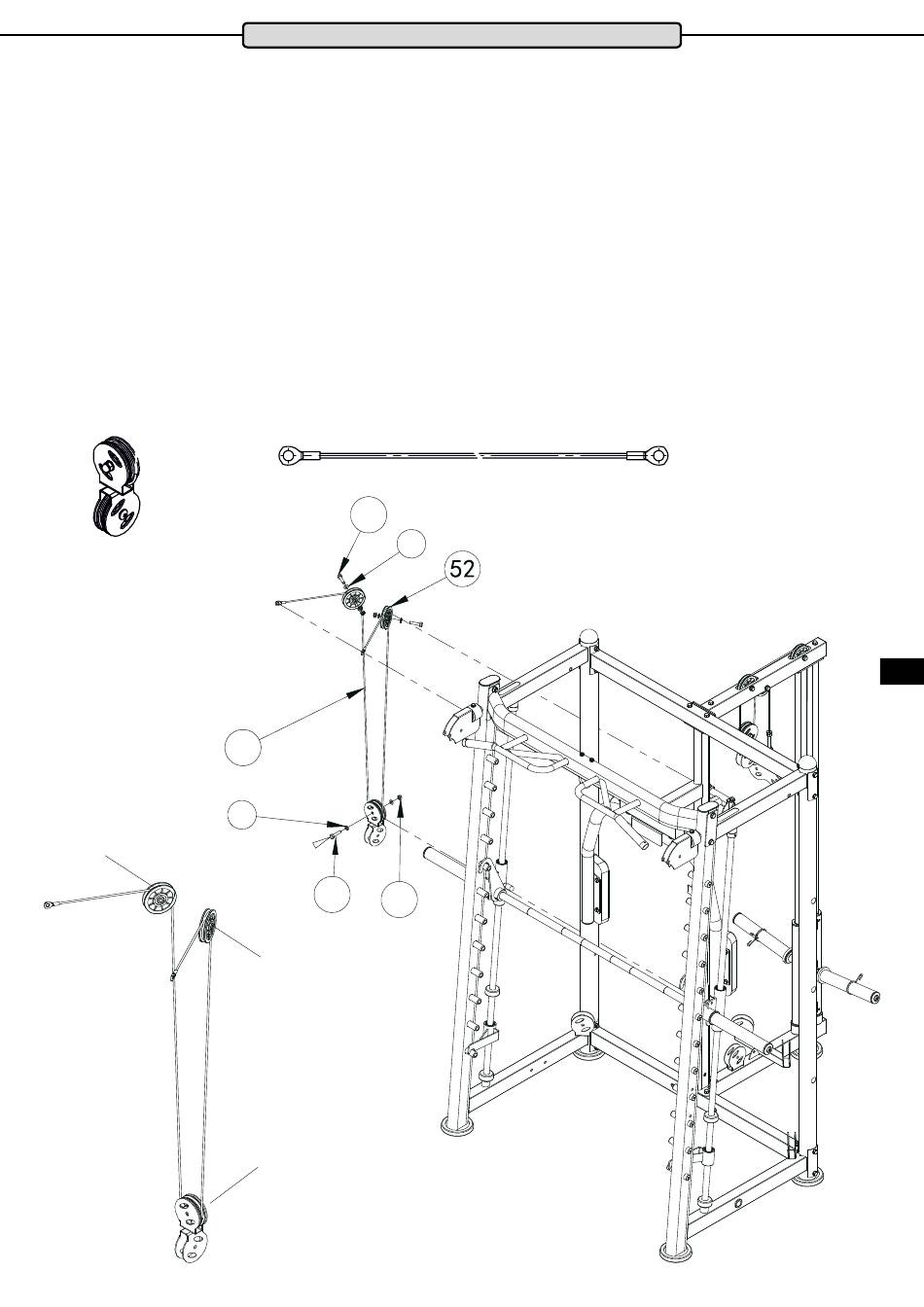

Assembly Step 6
Loosen both single rollers (R1 & R2) on the rear side of the butterfly base frame.
Hang the eyelet at the end of the traction cable (60) onto the hook on the left butterfly arm.
Feed the traction cable (60) over the single roller (R1) and re-mount it back onto the butterfly base frame.
Feed the traction cable (60) over the single roller (R2) and re-mount it back onto the butterfly base frame.
Hang the eyelet at the end of the traction cable (60) onto the hook of the right butterfly arm.
Loosen the top roller (R3) on the crossed double roller (59). Pull the traction cable (60) down to form a loop
below the two single rollers (R1&R2) and place roller (R3) into it. Mount roller (R3) back onto the holder in the
double roller (59).
Double Roller, crossed (59) Traction Cable (60) - Length 3,100 mm
58
9
ENG
60
9
R1
58
10
R2
R3
13
