Maxxus Multipress 9.1 Installation Manual page 8

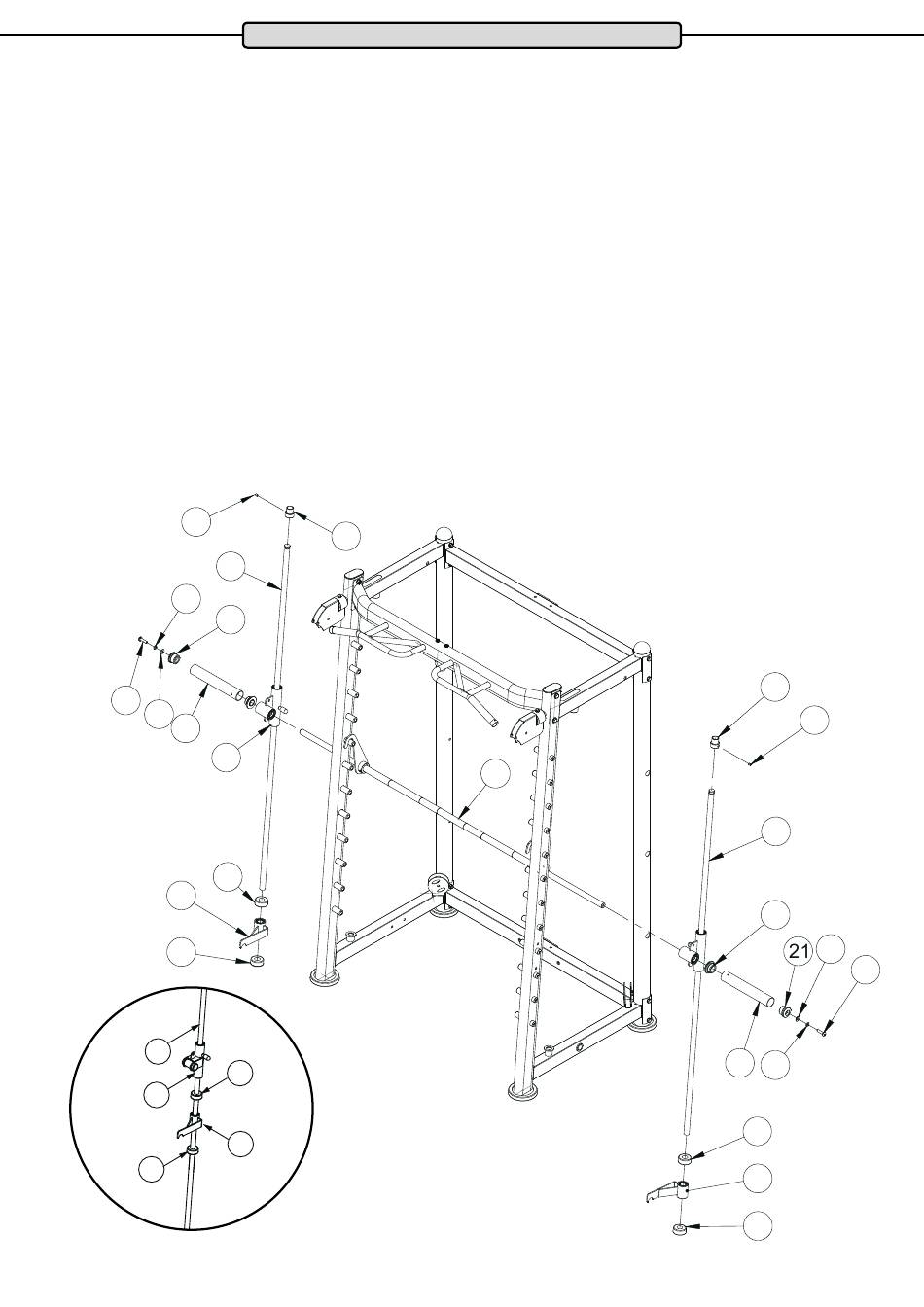

Assembly Step 2
Hang the barbell bar (16) with the holding hooks onto the left and righthand side-frames.
From the top, slide the following onto the guide pipe (17):
guide element, left (18) – rubber stop, round (25) -safety hook, left (26) – rubber stop, round (25) - also see Circular Section
Diagram for this.
It is important to slide the parts on in the correct order! Be extremely careful when sliding the guide element (18) into the
guide pipe. There are ball bearings in guide element (18) which may become damaged if the guide pipe is not properly
aligned.
There are ball bearings in the guide pipe. Place the slide pipe very carefully into the guide piece (28).
Now place the fixing bushing (23) onto the guide pipe (17).
Slide the guide element, left (18) with the slide pipe (17) onto the barbell mount (16).
Place the slide pipe into the lower mount on the left side-frame.
Now, place the top end of the slide pipe with the fixing bushing (23) into the top mount on the left side-frame. Then fix the
bushing by tightening the headless screw M8x10 (24). Repeat this procedure with the righthand slide pipe (17).
Then place an end cap (19) on the right and left ends of the barbell bar (16). Make sure that the caps are aligned correctly.
Slide a weight sleeve (87) from the outer ends onto each of the right and left ends of the barbell bar (16). Fix both sides with
an end piece, round (21), a washer Ø12 (12) and a hexagonal head screw M12x40 (22).
