Assembly - Multipress

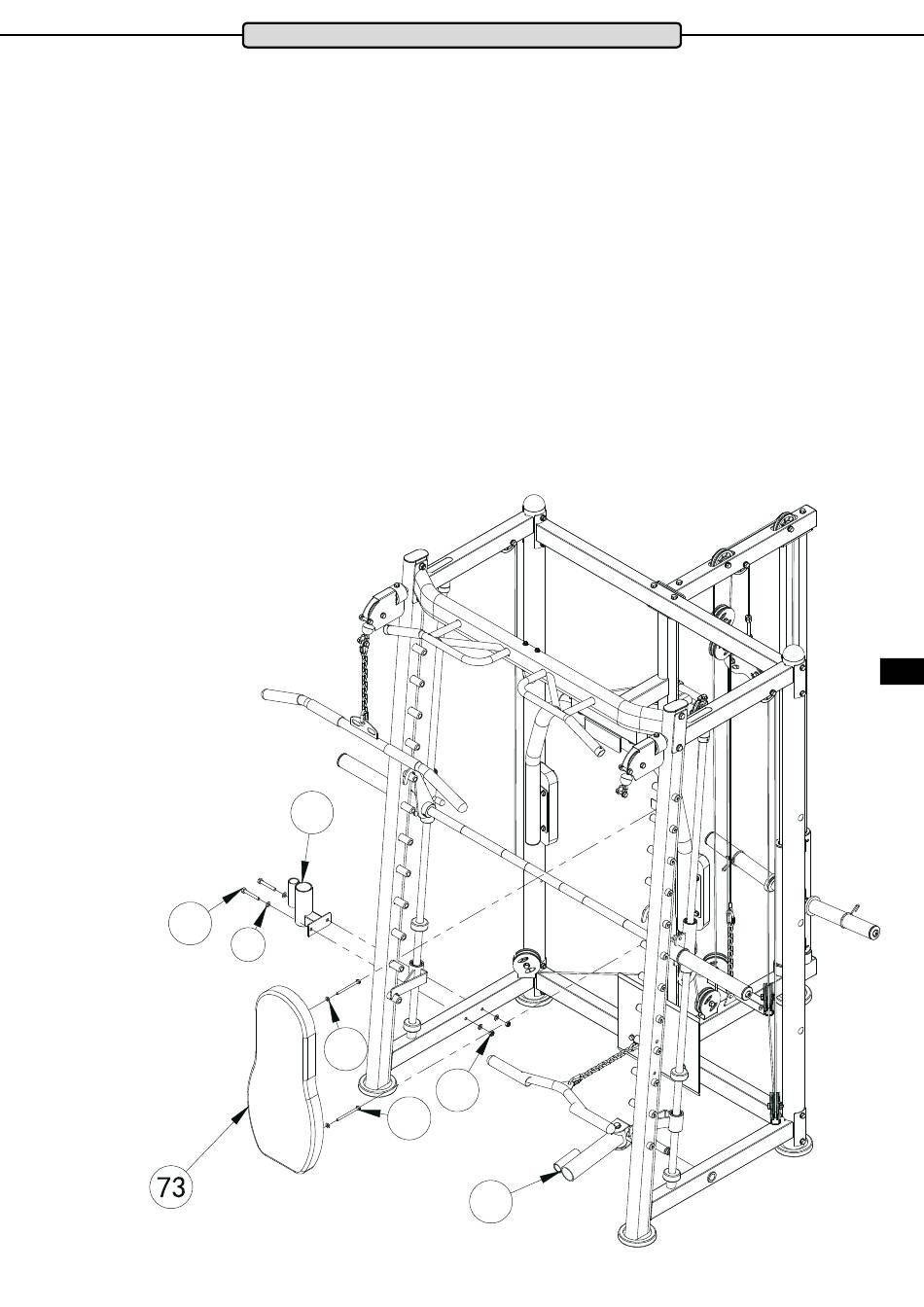

Assembly Step 9
Attach the back cushion (73) to the butterfly base frame using two hexagonal head screws M8x100 (72) and two
washers Ø8 (47).
Fix the fixed dumbbell bar brackets (74) from the outside onto the lower frame pipe on the side frame. To do this
use two hexagonal head screws M10x70 (54), four washers Ø10 (9) and two safety nuts M10 (10).
Place the movable dumbbell bar bracket (71) on the lower frame pipe on the left side frame.
Note: The movable dumbbell bar brackets (71) can be mounted on the inside or outside of the lower frame pipe
on the left side frame.
We recommend mouting these on the outside if there is enough room to the left of the training device
ENG
74
54
9
47
10
72
71
