Assembly - Multipress

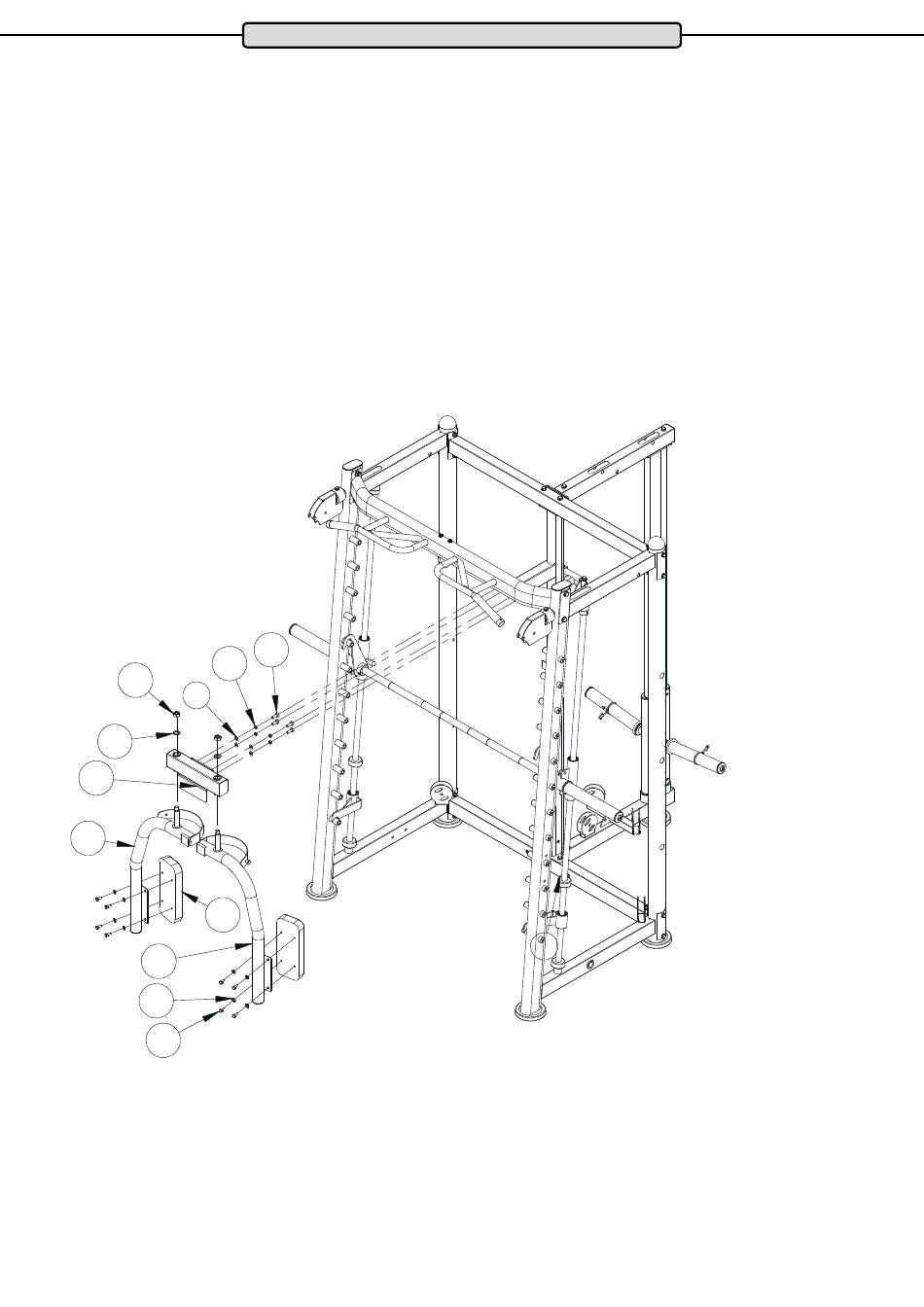

Assembly Step 4
Fix the connecting piece (42) to the butterfly base pipe using four hexagonal head screws M10x25 (50), four
spring washers Ø10 (51) and four washers Ø10 (9).
Put the left butterfly arm (43) in the left mount on the connecting piece (42) and fix it from the top with a washer
Ø16 (49) and a nut M16 (48).
Mount the arm cushion (45) onto the holding plate on the left butterfly arm (43) using four hexagonal screws
M8x20 (46) and four washers Ø8 (47).
Repeat this procedure with the right butterfly arm (44).
