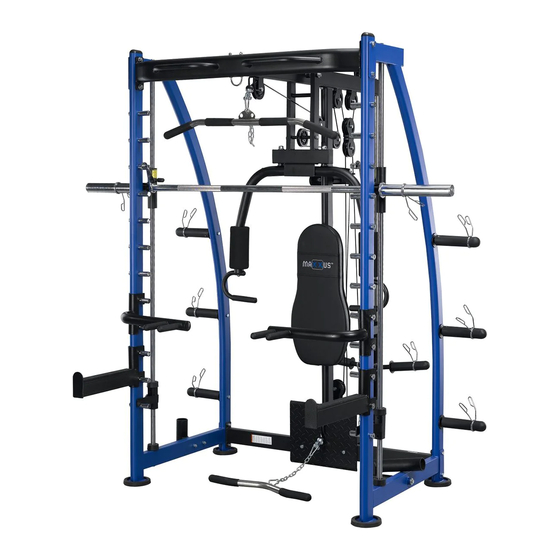

Maxxus Multipress 8.1 Installation & Operating Manual

Hide thumbs Also See for Multipress 8.1:

Advertisement

Quick Links

Download this manual
Multipress 8.1
ENG
1

Advertisement

loading

Related Manuals for Maxxus Multipress 8.1

Summary of Contents for Maxxus Multipress 8.1

  • Page 1 Multipress 8.1...
  • Page 2 This publication may not be reproduced, stored in retrieval system, or transmitted on whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Maxxus Group GmbH & Co. KG.

  • Page 3: Safety Instructions

    Any manipulation of or interference with the device can cause damage to the device and be a danger to people. If you have any questions or queries contact your specialist dealer or the MAXXUS Service Team and they will be pleased...
  • Page 4 Assembly - Multipress Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and heavy. Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered. Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assem- bly are not covered by the warranty or guarantee.
  • Page 5 Assembly - Multipress Assembly Step 2 Connect the left side-frame (5) and right side-frame (6) to the top of the pull-up frame (14) at the front. To do this use two screw sets (12+4) and one fixing plate (8) on each side. Connect the rear left side-frame (2) and the right side-frame (3) at the bottom with the the T-frame (1+2) already assembled in Assembly Step 1.
  • Page 6 Assembly - Multipress Assembly Step 3 Loosen the headless screw (20) and remove pipe retainer ring (21) from the top of the left-hand slide pipe (15). Take the left slide pipe out of the left side-frame. Now, remove the following components from the left-hand slide pipe: 2 x rubber stops, round (16) 1 x safety bracket, left (18) 1 x rubber ring (19)
  • Page 7 Assembly - Multipress Assembly Step 4 Loosen and remove the hexagonal head screw M12x40 (25) on the outer righthand side of the dumbbell bar (27). Then remove: − Spring Washer Ø12 (26) − Washer Ø12 − (22) − Sleeve (29) −...
  • Page 8 Assembly - Multipress Assembly Step 5 Place the components onto the end of the slide pipe (15) in the following order: − Guide piece (28) − Rubber stop, round (16) − Safety bracket (17) − Rubber stop, round (16) − Rubber ring (19) Place the right guide pipe (15) in the lower mounting on the right side-frame.
  • Page 9 Assembly - Multipress Assembly Step 6 Place the components onto the bottom end of the slide pipe (15) in the following order: − Guide piece with dumbbell bar (28+27) CAUTION: There are linear slide bearings in the guide piece. Place the slide pipe very carefully into the guide piece (28).
  • Page 10 Assembly - Multipress Assembly Step 7 Now slide the following components onto the righthand end of the dumbbell bar (27) − Aluminium Ring (23) − Pipe (29) − Sleeve (24) − (22) − Washer Ø12 − Spring Washer Ø12 At the end of this assembly step, screw a hexagonal screw M12x40 (25) into the right end of the dumbbell bar (27) and tighten it securely.
  • Page 11 Assembly - Multipress Assembly Step 8 Remove the roller (77) from the centre upright frame (33). Place the upright centre frame (33) onto the T-frame already assembled in Step 1 and screw them both together with three screw/nut sets (35+9/11+9) Now replace the roller (77).
  • Page 12 Assembly - Multipress Assembly Step 9 Place both dumbbell weight holders (36) right and left on the weight slide (30) and fix them both with a headless screw (20) – see circular section diagram. Place both guide pipes (34) into the mounts on the weight slide (30). Make sure here that the two dumbbell weight brackets on the weight slide are pointing upwards.
  • Page 13 Assembly - Multipress Assembly Step 10 Fix the upper frame (38) from above onto the upright centre frame with two screw/nut sets (35+9/11+9) and then fix it to the rear slide pipe (34) with one screw set (39+9) Now fix the upper frame (38) to the pull-up frame at the front. To do this use two screw sets (32+9). Note: Please only tighten screws by hand until all component parts have been fitted together properly.
  • Page 14 Assembly - Multipress Assembly Step 11 Fix the foot plate (40) on the front of the lower T-frame using two screw sets (32+9) Attach the butterfly joint (41) with the shaft pin (45) to the upper frame and fix the shaft pin (45) at each end using two nut sets (11+46).
  • Page 15 Assembly - Multipress Assembly Step 12 Remove the ball bracket from the end of the traction cable (54) – see circular section diagram. Screw the other threaded end of traction cable (54) into the screw hole on the slide carriage. Feed the traction cable over the rollers as shown in the diagram: a - b - c (upper roller on the double roller) - d - e - f - g - h Finally, attach the ball bracket back onto the traction cable (54).
  • Page 16 Assembly - Multipress Assembly Step 13 Attach the roller bracket (57) to the appropriate mount on the upright centre frame. To do this use a screw/nut set (10+9/11+9) – Circular Section Diagram 1. Hang the eyelet on the traction cable (58) onto the hook in the left butterfly arm – Circular Section Diagram 2. Run the cable through as shown in the Diagram and hook the other end of the traction cable (58) onto the right butterfly arm with the hook.
  • Page 17 Assembly - Multipress Assembly Step 14 Remove the ball bracket on the end of the traction cable (60) – see Circular Section Diagram. Connect a carabiner hook from chain (55) with the eyelet on the end of the traction cable (60). Clip the other carabiner hook onto the eyelet on the lower T-frame.
  • Page 18 Assembly - Multipress Assembly Step 15 Connect the three dumbbell weight brackets (61) onto the outside of the left and right rear curved frame pipes using the pre-assembled screws and washers already on the dumbbell weight brackets. to the left side frame. Now fit a butterfly cap (62) onto the end of each of the brackets (61).
  • Page 19 Assembly - Multipress Accessories Storage rack and safeguard for free training with barbells, long type (70) Hand grips for dips and press-ups (71/72) Storage rack and safeguard for free training with barbells, short type (75) Butterfly Cap (62) Rubber Band (74)
  • Page 20 Assembly - Training Bench Assembly Step 1 Fix the rear floor bar (2) to base bar (3) using two hexagonal head screws M10x75 (6), four washers Ø10 (33), two safety nuts M10 (52) and straight retaining plate (7). Place standpipe (51) onto front floor bar (1) and fix it with two hexagonal screws M12x75 (55), four washers Ø12 (54) and two safety nuts (53).
  • Page 21 Assembly - Training Bench Assembly Step 3 Now fix the base frame (18) to the front mount of the sliding carriage (16). For this use two hexagonal head screws M8x20 (19), two washers Ø8 (32) and a distance tube (30). Assembly Step 4 Fix swivel bracket (35) using two hexagonal head screws M10x20 (39), two washers Ø10 (33) and distance tube (42) to the mount on standpipe (51).
  • Page 22 Assembly - Training Bench Assembly Step 5 Place the three cross pipes (37) – into the swivel bracket and base – as shown in the Diagram. Push a cover plate (large opening) (48) on to both ends of each cross pipe (37) with the opening facing outwards (see Dia- gram).
  • Page 23 Assembly - Training Bench Assembly Step 7 Attach back rest cushion (29) to the back-rest support tube (17) using four hexagonal screws M8x20 (19) and four washers Ø8 (32) Assembly Step 8 Attach the seat cushion (31) to the sliding carriage (16) using four hexagonal screws M8x20 (19) and four washers Ø8 (32).

  • Page 24: Care, Cleaning & Maintenance

    Alternatively, you can use the MAXXUS® degreaser spray (optionally available). After this, dry the guide pipes off thoroughly and lubricate them with MAXXUS®...

  • Page 25: Training Recommendations

    Training Recommendations Preparation Before Training Before you start training make sure that not only your training device is in perfect condition, your body must also be prepared for training. Therefore, if you have not done any endurance training for some time, you should con- sult your GP and undergo a fitness check-up.
  • Page 26 Training Recommendations Intake of Liquids The intake of sufficient liquids before and during training is vital. During a 60-minute training session it is possible to lose up to 0.5 litres of liquid. To compensate for this loss, you can drink a mix of one third apple juice to two thirds water to replace all electrolytes and min- erals which your body loses through sweat.
  • Page 27 Exploded Drawing – Multipress...
  • Page 28 Parts List – Multipress Part Description Type Part Description Type back ground link tube footplate back short ground arm extension frame link tube arm extension le hexagon bolt M12x30 arm extension right washer Ø12 handle left frame shaft Ø15.8x206 right frame big washer Ø25xØ10x2 fixing plate...
  • Page 29 Exploded Drawing – Training Bench...
  • Page 30 Parts List - Training Bench Part No. Description Type Base Bar, front Base Bar, rear Base Bar Mounting Plate, bent T3.0x59x140 Hexagonal Head Screw M10x100 Hexagonal Head Screw M10x75 Mounting Plate, straight T4.0x50x140mm Grip Screw with Locking Pin M18x1.5mm Sliding Carriage Support Tube for Back-Rest Base Frame for Seat Cushion Hexagonal Head Screw...

  • Page 31: Warranty

    The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased directly from the MAXXUS Group GmbH & Co. KG, or one of the MAXXUS Group GmbH & Co. KG direct and authorised distribution partners.

  • Page 32: Device Details

    I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled immediately.
  • Page 33 Maxxus Group GmbH & Co. KG Zeppelinstr. 2 D-64331 Weiterstadt Germany E-Mail: info@maxxus.de www.maxxus.de...
