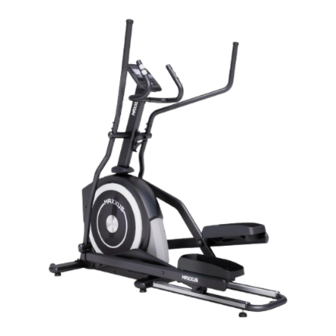

- Page 1 MAXXUS CX 5.1 Cross-Trainer...
- Page 2 This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG.
-
Page 3: Safety Instructions
To protect delicate floors, such as wood, laminate, tiles, etc., and prevent damage such as scratches, it is recommended to permanently place a MAXXUS floor protection mat under the device. Ensure that the pad is secured against slipping. Do not place the exerciser on pale or white carpets, as the feet of the appliance may cause marks. -
Page 4: Scope Of Delivery
Scope of Delivery Box 1 A12 - Slide Frame Main Frame Fixed Handlebar Handlebar Stem Cockpit C05 - Stand Feet C07/C08 Cover for Stand, front Bottle Holder Handlebar Stem Box 2 A13/A14 Side handles left A13/ Mains Adapter Pedals - 2 pcs. Swing arm, left Swing arm, right right A14... - Page 5 Fixing Material & Tools 1 (B20) 2 (B33) 4 (B32) 5 (B21) 6 (B30) Hexagon Screw 3/8" Washer 5/16" Hexagon screw M8 Washer 3/8" Curved Washer M8 x 64 mm 2 pcs. x 20 x 2.0 4 pcs. x 16 mm 4 pcs. x 20 x 2.0 4 pcs.
-
Page 6: Step 1: Assembling The Stand
Assembly Step 1: Assembling the Stand To make it easier for you to assemble the stand (A09), slide a support (eg a Styrofoam block from the packaging) under the main frame – see picture below. Then attach the stand (A09) to the front of the main frame (A01). Use two hexagon screws 3/8 "x64mm (1), four washers 3/8 "x20 (5) and two cap nuts 3/8"... -
Page 7: Step 3: Assembling The Handlebar
Assembly Step 3: Assembling the Handlebar Connect the cable that protrudes from the bottom of the handlebar stem (A02) to the cable that protrudes from the receptacle of the main frame (A01). Then fix the handlebar stem (A02) to the main frame (A01) with four hexagon screws M8x20 (9). CAUTION: Make sure that cables do not get pinched or damaged while assembling the handlebar stem. - Page 8 Assembly Step 5: Assembling the Fixed Handlebar Feed the cable that protrudes from the fixed handlebar (A16) through the opening on the front of the handlebar stem (A02) and out of the top of the handlebar stem. Then fasten the fixed handlebar (A16) with two allen screws M8x18 (12) and two curved washers M8x20x1.5 (6) on the front of the handlebar stem (A02).
-
Page 9: Step 7: Assembling The Pedals
Assembly Step 7: Assembling the Pedals Loosen and remove four allen screws (B23) on the mounting of the right pedal tube (A06). Attach the pedal (C12) to the right pedal tube (A06) using the allen screws (B23) that were previously loosened. Step 8: Assembling the Guide Tube Slide the front mount of the right guide tube (A08) onto the small axle (A11) located on the right drive pulley of the main frame. - Page 10 Assembly Step 9: Assembling the Joint Connection of the Pedal Tube to the Swing Arm Loosen and remove the pre-assembled screw (B24), washer (B33), and nut (B29) from the front mount of the pedal tube (A06). Connect the swing arm (A04) to the pedal tube (A06). Use the previously loosened screw (B24), washer (B33), and nut (B29).
- Page 11 Assembly Step 12: Assembling the Bottle Holder Loosen and remove two screws M5 (B05) which are preassembled on the handlebar stem (A02). Attach the bottle holder (C27) to the handlebar stem using the two screws (B05) that were just loosened. Step 13: Assembling the Pedal Covers Now press four covers (C14) into the round holes on the top of each pedal.
-
Page 12: Step 15: Levelling The Device
Assembly Step 14: Assembling the Cockpit Loosen and remove the four pan head screws (B17) preassembled on the back of the cockpit. Connect the cables protrudi from the cockpit (D02) with the cables that protrude from the fixed handlebars. Please note that the cables can be easily identified by their connections. Now fix the cockpit (D02) to the cockpit bracket on the handlebar stem (A02) with four previously loosened pan-head screw ATTENTION: Make absolutely sure that you do not pinch or damage the cables during assembly. -
Page 13: Transport Rollers
Transport, Location and Storage Transport In order to transport your training device simply and safely, the front stand is equipped with transport rollers. To transport the exerciser, stand at the rear end of the glide frame and grasp the rear cross tube with both hands. Now tip the training device upwards until the main weight of the training device rests on the transport rollers. -
Page 14: Care, Cleaning & Maintenance
MAXXUS® Degreaser Spray is recommended. Ensure the sliding tubes are thoroughly dried, then apply a thin layer of liquid silicone or MAXXUS® lubricant spray to the top of the tubes. For frequent use, clean and lubricate the sliding tubes once a week. If squeaking sounds occur during training, lubricate the sliding tubes immediately. -
Page 15: Mains Connection
Mains connection Mains Adapter Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on the front of the main frame (A01). Then, connect the mains adapter (D08) to a power socket. CAUTION: This device should only be connected to an earthed socket that has been installed by a qualified electrician. - Page 16 Mains Connection Cockpit Cockpit Mains Adapter Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on USB port with charging function the front of the main frame (A01). Then, connect the mains adapter (D08) to a power socket. CAUTION: This device should only be connected to an earthed socket that has been installed by a qualified electrician.
- Page 17 Mains Connection Cockpit Cockpit Mains Adapter Keypad Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on the front of the main frame (A01). Then, connect the mains adapter (D08) to a power socket. START/STOP Key CAUTION: START Function:...
- Page 18 Mains Connection Cockpit Cockpit Mains Adapter Quick-Start Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on Turn on the training device and press the START / STOP key. The training time will start to run, and you can start training. the front of the main frame (A01).
- Page 19 Mains Connection Cockpit Cockpit Mains Adapter Connecting the Device Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on the front of the main frame (A01). Then, connect the mains adapter (D08) to a power socket. Always connect the mains adapter to the training device before plugging it into a power socket.
- Page 20 Mains Connection Cockpit Cockpit Mains Adapter Free Training Profile (USER) Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on Here you can create a training profile per user profile yourself and save it permanently. the front of the main frame (A01).
- Page 21 Mains Connection Cockpit Cockpit Mains Adapter Step 4: Setting the Training Time Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on The value in the “TIME” window flashes. Enter the training time by turning the control knob clockwise / anti-clockwise. You the front of the main frame (A01).
- Page 22 Mains Connection Cockpit Cockpit Mains Adapter Recovery Heart Rate (RECOVERY) Take the connection cable of the mains adapter (D08) included in the delivery. Plug the connection cable into the socket on The recovery test measures how quickly you recover, i.e. how quickly and by how much your heart rate decreases after the front of the main frame (A01).
- Page 23 CAUTION: Please note that the use of apps may be subject to charges. MAXXUS Group GmbH & Co. KG is neither the manufacturer nor the Before connecting the mains adapter to the device, always ensure that you are using the mains adapter supplied specifically distributor of the apps and therefore cannot be held responsible for their content or functionality.
- Page 24 Pulse & Heart Rate Monitoring Pulse & Heart Rate Monitoring 100% the maximum heart rate 100% the maximum heart rate 75% the maximum heart rate 75% the maximum heart rate 65% the maximum heart rate 65% the maximum heart rate 55% the maximum heart rate 55% the maximum heart rate Calculating your personal heart rate when training...
- Page 25 Heart Rate Measurement using a Chest Belt Many MAXXUS® training devices come equipped with a standard receiver. To wirelessly measure your heart rate, we recommend using an uncoded POLAR® chest strap exclusively. The chest belt is available as an accessory.
-
Page 26: Training Recommendations
Training Recommendations Preparation Before Training Before you begin training, ensure that both your training device and your body are in optimal condition. It's important to prepare your body for training. If you haven't engaged in endurance training for a while, it is advisable to consult your GP and undergo a fitness check-up. - Page 27 Training Recommendations Training Recommendations Hydration Hydration Ensuring adequate hydration is crucial before and during exercise. It's possible to lose up to 1 litre of liquid during Ensuring adequate hydration is crucial before and during exercise. It's possible to lose up to 1 litre of liquid during a 30-minute training session.
- Page 28 Notes...
-
Page 29: Technical Details
Optimal lubricant for slide tubes. MAXXUS® Special Foam Cleaner Use it for regular cleaning of your fitness equipment. MAXXUS foam cleaner can perfectly maintain plastic covers and metal frames. It is also suitable for cleaning pulse belts and other training accessories. -
Page 30: Exploded Drawing
Exploded Drawing... -
Page 31: Parts List
Parts List Part no. Description Part no. Description Main frame Sheet metal screw, M4 Upright support Sheet metal screw, M5 Dual action tube, left Bushing Dual action tube, right Zinc plate Foot pedal tube, left Hex head screw, M8 Foot pedal tube, right Main cover, right Foot pedal, left Main cover, left... - Page 32 Disposal Do not dispose of your training device in regular household waste. Instead, take the device to a communal waste disposal facility or a registered waste disposal company. It is important to adhere to the current regulations that apply in your area. If you are unsure, seek advice from your city or municipal administration to determine the proper and environmentally sound method of disposal for the device.
- Page 33 My training device makes noises during training – is this normal? Your MAXXUS® training device is designed with high-quality ball bearings and a grooved belt, along with a premium magnetic braking system that is entirely wear and friction-free. These exceptional components significantly reduce functional noises, making your MAXXUS®...
-
Page 34: Warranty
Service Outside the Warranty and Ordering Spare Parts The MAXXUS® Service Team is happy to assist in solving any problems with faults that may arise following the expiry of the warranty period or in cases of defects not covered by the warranty. - Page 35 Die Kopie des Kaufnachweises / Rechnung /Quittung ist beigefügt. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged Sachmängelhaftung nicht abgedeckt sind, gehen zu meinen Lasten und sind umgehend zu begleichen. Im for the cost.
- Page 36 Maxxus Group GmbH & Co. KG Nordring 80 w D-64521 Groß-Gerau E-Mail: info@maxxus.de www.maxxus.com...
