Assembly - Training Bench - Maxxus Multipress 9.1 Installation Manual

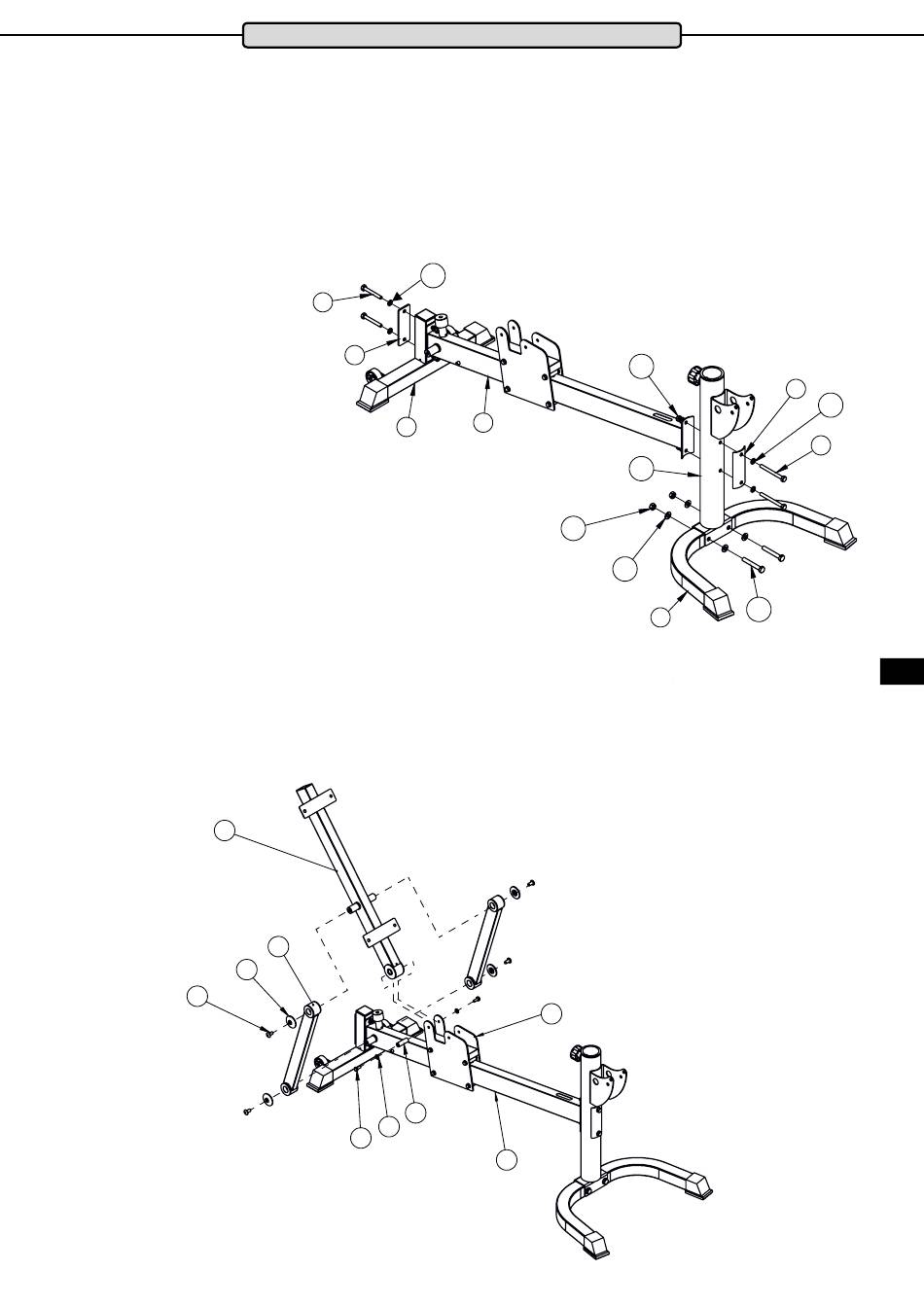

Assembly step 1
Attach the rear bottom tube (2) to the base pipe (3) with two hexagon bolts M10x75 (6), four washers Ø10 (33),
two locknuts M10 (52) and the straight retaining plate (7).
Then place the standpipe (51) on the front floor pipe (1) and secure it with two Hexagon bolts M12x75 (55), four
washers Ø12 (54) and two locknutsM12 (53).
Now attach the standpipe (51) to the base pipe (3) using two hexagon bolts M10x100 (5), four washers Ø10
(33), two locknuts M10 (52) and the curved retaining plate (4).
Assembly step 2
Secure the support tube (17) with two hexagon bolts M8x20 (19), each with a washer Ø8 (32) and a spacer tube
(30) on the rear mounting of the slide (16).
Then place the two guide tubes (20) on the right and left of the holder on the base pipe (3) and in the receptacle
on the support tube (17) and fix it with two aluminium cover caps (21) and two Allen screws M10x16 (56).
17
20
21
56

Assembly - Training Bench

33
6
7
3
2
30
32
19
23
52
51
53
54
1
16
3
4
33
5
55
