Panel Description; Installation Procedures - Techly IDATA EXT-E70S User Manual

HDMI EXTENDER OVER CAT.6/7 CABLE 40M

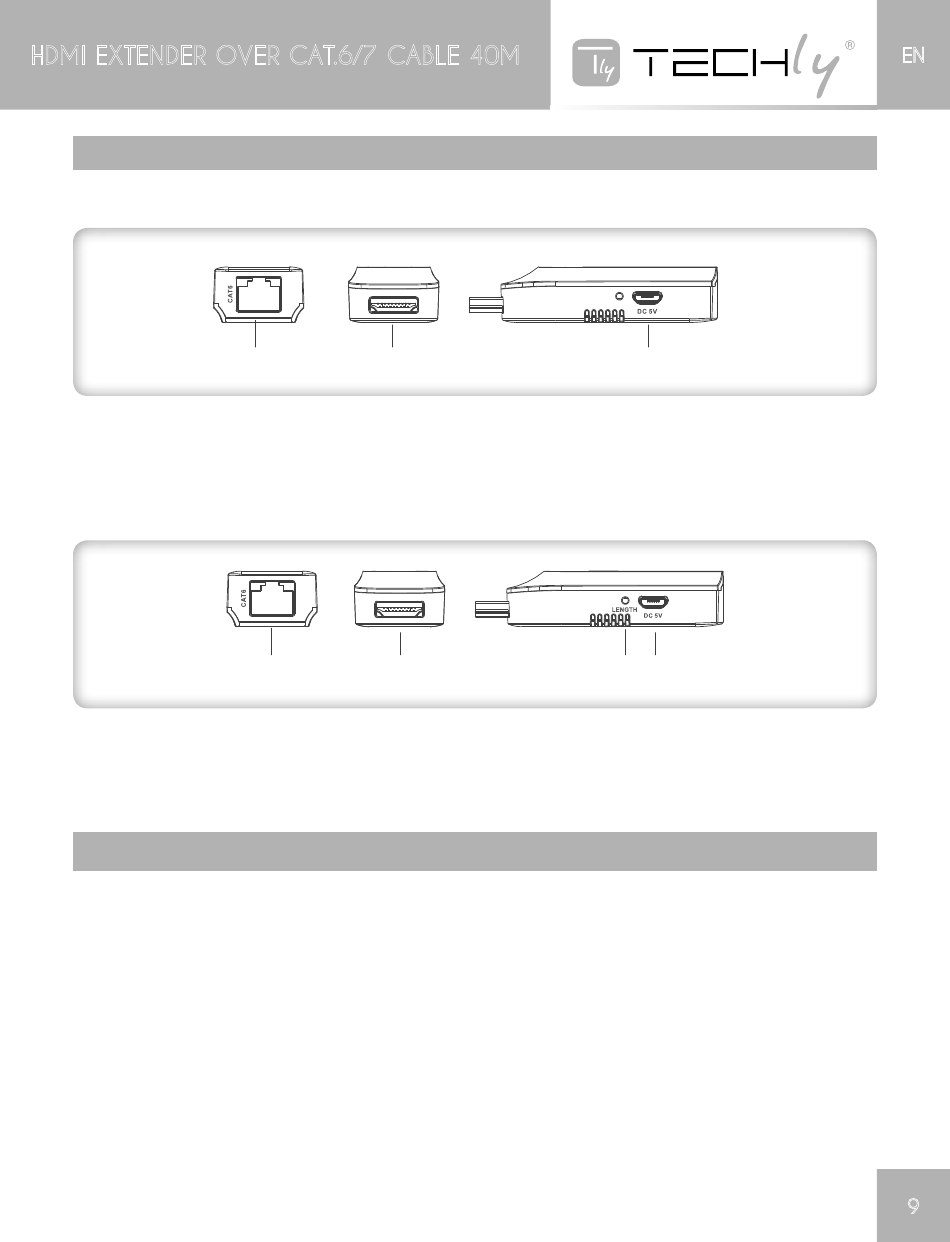

PanEL dEscrIPtIon

1.Transmitter unit (TX)
RJ45 signal output
➊
HDMI signal
➋
Power input
➌
2. Receiver unit (RX)
R145 signal input
➊
HDMI output
➋
LENGTH button
➌
Power input
➍

InstaLLatIon ProcEdurEs

How to make a Cat6 network cable?
Follow the standard of EIA-568:
1-Orange/white
4-Blue
7-Brown/white
➋
➊
Output encoded HDMI signal
Connect with HDMI source device
Connect with USB cable
➊ ➋
Input encoded HDMI signal
Connect with HDMI display device
For adjusting the unit self-adopt to the length of the network cable
Connect with the USB cable (optional)
2-Orange
5-Blue/white
8-Brown
➌ ➍
3-Green/white
6-Green
➌
