• station (IC station/HBC station):

A
B

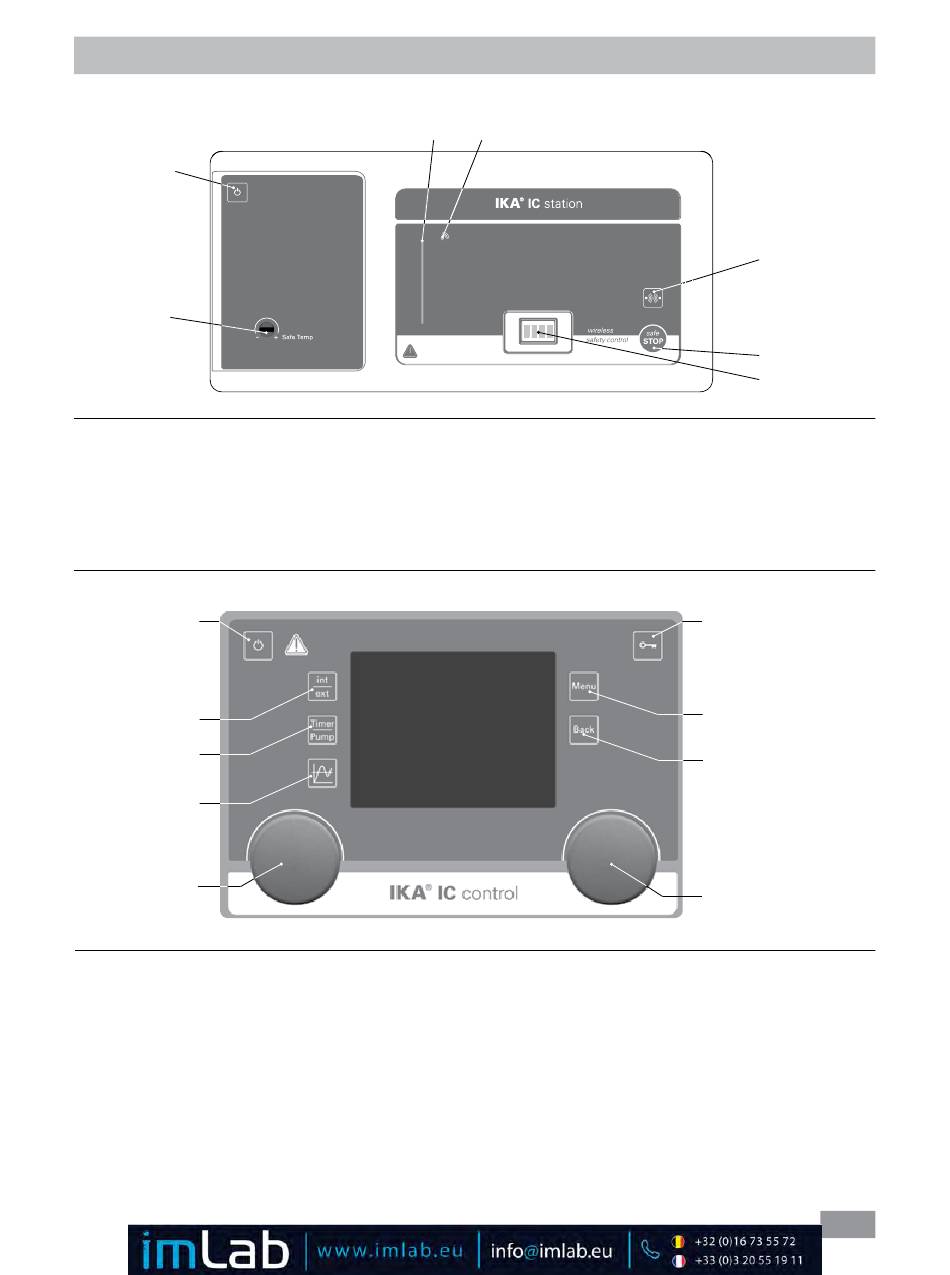

Fig. 15
Item Designation
A ON/OFF button:
B Adjustable safety circuit:
C "safe STOP" button:
D LED bar:
E Bluetooth searching button:
®
F Bluetooth LED:
®
G Contacts:

• Wireless Controller (WiCo):

L
P
R
S
K
Fig. 16
Item Designation
J Rotating/pressing knob:
K Rotating/pressing knob:
L ON/OFF button:
M "Menu" button:
N "Back" button:
O Key button:
P "int/ext" button:
R "Timer/Pump" button:
S Graph button:

Operator panel and display

D F
Function
Switch on/off the station�
Adjust the safety temperature limit with delivered screwdriver�
Safe stop the working of the circulator in emergency�
Display different status of the circulator with different color�
Search the Wireless Controller (WiCo) when the Bluetooth
Bluetooth indicator�
®
Communicate and charge the WiCo�
Function
Navigation, selecting and changing the settings in the menu
Set the pump speed value
Start/Stop the pump function
Set the temperature value
Start/Stop the heating function
Switch the WiCo on and off
Press it once: main menu is displayed
Press it a second time: back to the working screen
Return to the previous menu level
Lock/Unlock the knobs and keys
Switch between the internal and external temperature display and control
Switch between the timer and pump display
Display time/temperature graph
E
C
G
is active�
®
O
M
N
J
