Filling And Draining - IKA IC control Operating Instructions Manual

Hose olive
Fig. 9
Note: Please note the permissible temperature range of
hoses� For hot fluids we recommend the IKA LT 5�20
hoses� When the external system is not necessary, please
seal the pump connectors IN and OUT with the existing
union nuts and stoppers�

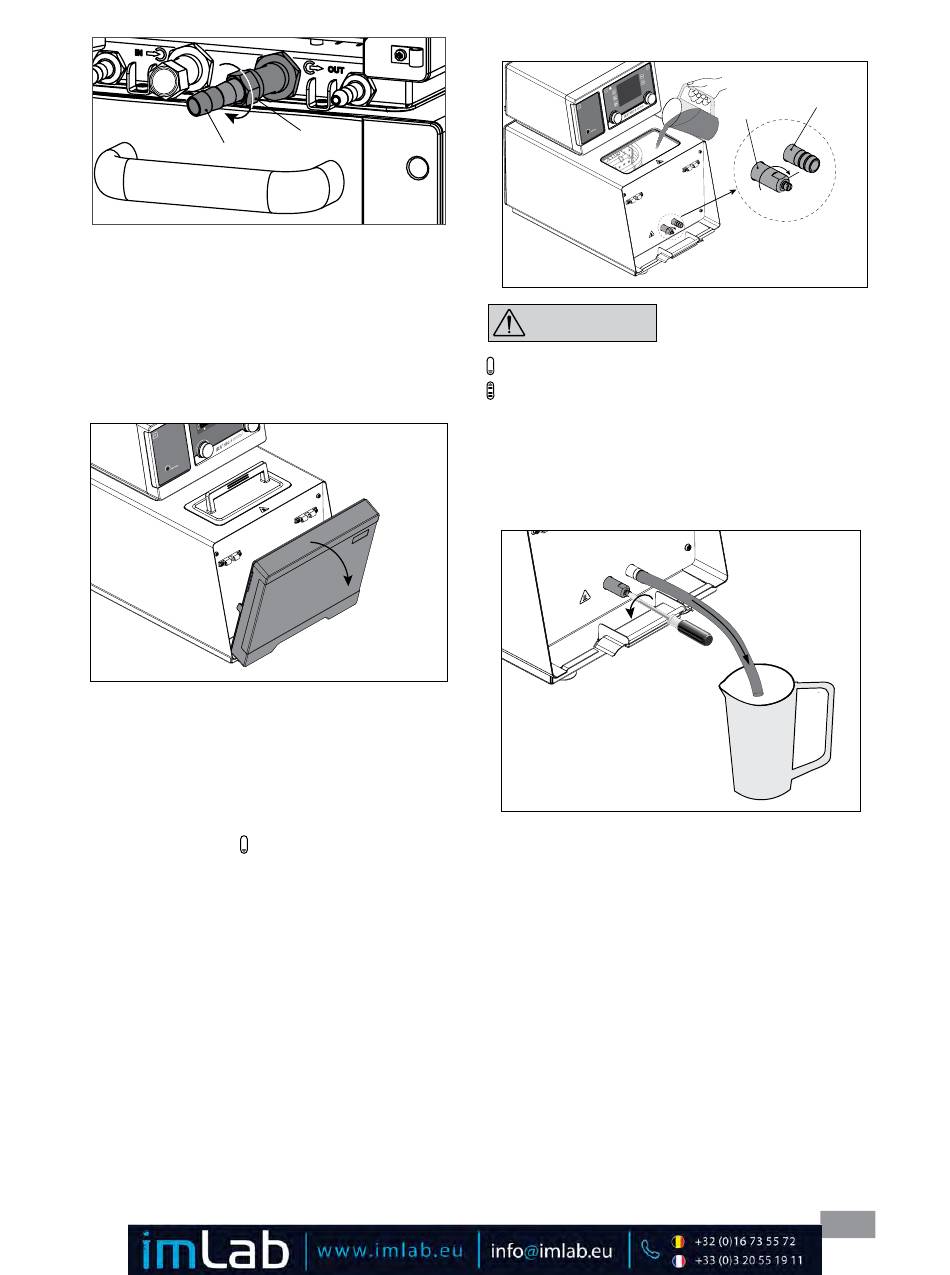

• Filling and draining:

- Before filling the fluid into the bath, open the front
cover as indicated in following figure�
Fig. 10
- Check and make sure that the drain valve is closed (the
stop position in clockwise direction, see Fig� 11)�
Note: Please note information in chapter "Commis-
sioning"�
- Connect the mains plug and turn on the device with
mains switch (2)�
- The low level icon ( ) appears on the display of the
Wireless Controller (WiCo)�
Union nut
- Open the lid (15) and fill fluid to the bath�
Fig. 11
NOTICE
— Low level
— High level
(see "Fluid level" in section " Working with Wireless
Controller (WiCo)")�
- To drain the fluid from the bath, connect a hose to the drain
port and turn the drain valve in counter clockwise direction
with a straight screwdriver�
Fig. 12
Drain port
Drain valve
Stop position
Pay attention to the fluid level
information on the display:
9
