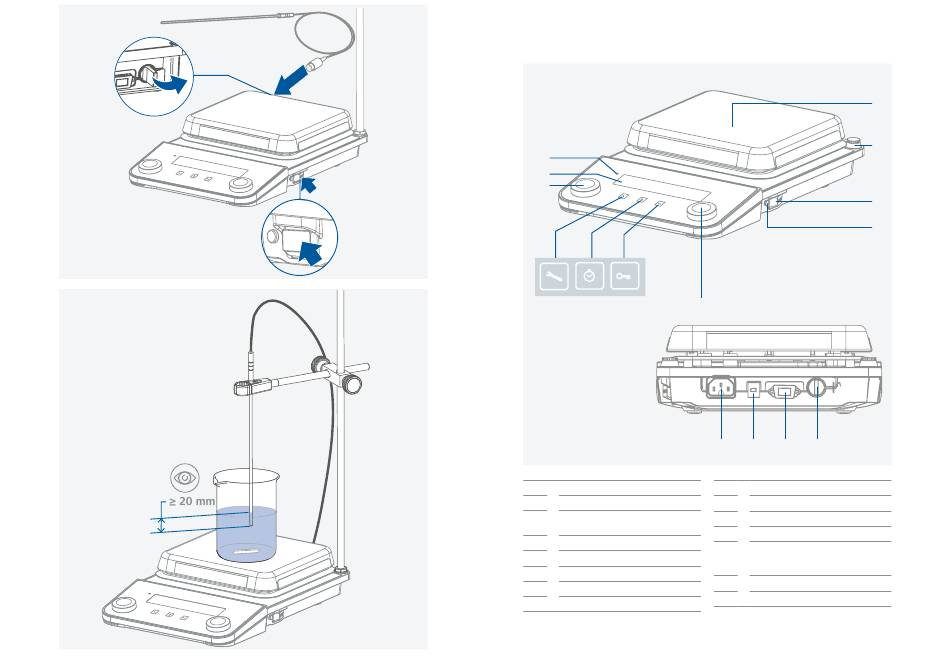

Operator panel and display

/// Operator panel
I
H
C
E F G D
A Main switch (left « on, right « off)
B Adjustable safety circuit
Rotating / pressing knob - Temperature
C
setting
D Rotating / pressing knob - Speed setting
E "Menu" button
F "Timer" button
G "Lock" button
H Display
N
O
A
B
J K L M
I Standby LED
J Power socket
K USB Interface
L RS 232 Interface
Connection for PT 1000 temperature
M sensor series, temperature probes or
contact plugs
N Heating plate
O Threaded hole for stand
