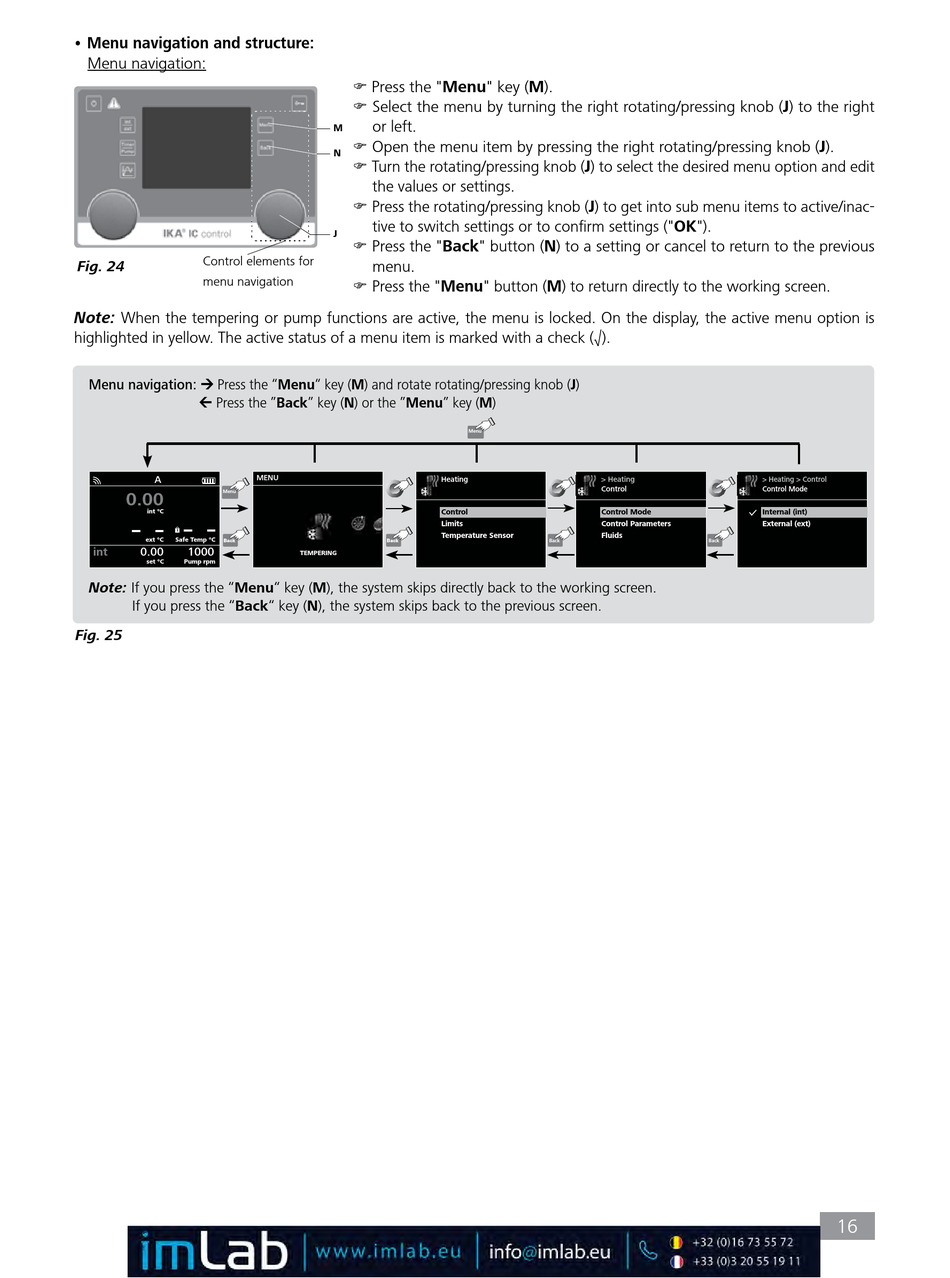

• Menu navigation and structure:

Menu navigation:
Control elements for
Fig. 24
menu navigation
Note: When the tempering or pump functions are active, the menu is locked� On the display, the active menu option is
highlighted in yellow� The active status of a menu item is marked with a check (√)�
Menu navigation:  Press the "Menu" key (M) and rotate rotating/pressing knob (J)
 Press the "Back" key (N) or the "Menu" key (M)
A
0�00 Menu
int °C
ext °C Safe Temp °C
Back
int 0.00 1000
set °C Pump rpm
Note: If you press the "Menu" key (M), the system skips directly back to the working screen�
If you press the "Back" key (N), the system skips back to the previous screen�
Fig. 25
Press the "Menu" key (M)�

Select the menu by turning the right rotating/pressing knob (J) to the right

or left�
M
Open the menu item by pressing the right rotating/pressing knob (J)�

N
Turn the rotating/pressing knob (J) to select the desired menu option and edit

the values or settings�
Press the rotating/pressing knob (J) to get into sub menu items to active/inac-

tive to switch settings or to confirm settings ("OK")�
J
Press the "Back" button (N) to a setting or cancel to return to the previous

menu�
Press the "Menu" button (M) to return directly to the working screen�

MENU
Back
TEMPERING
Menu
Heating > Heating
Control
Control Control Mode
Limits Control Parameters
Temperature Sensor Fluids
Back
> Heating > Control
Control Mode
Internal (int)
External (ext)
Back
