IKA IC control Operating Instructions Manual page 25

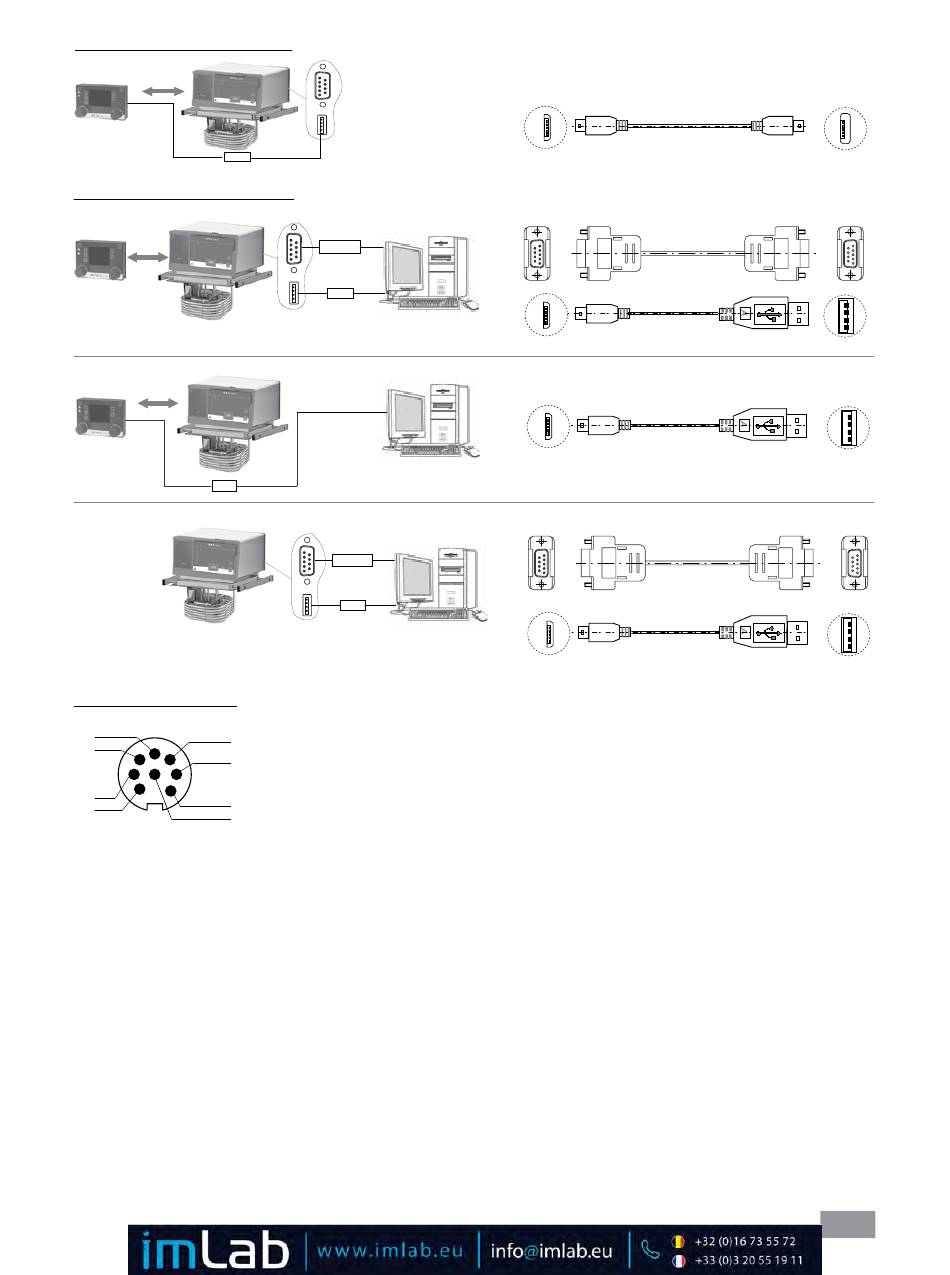

Connection WiCo to Station:
Micro B
USB
Fig. 32
Connection the device to PC:
Micro B
USB
Fig. 33
Multifunction interface:
2
5
4
3
1
7
6
8
Fig. 34
Micro A
RS 232
or
USB
Micro B USB A
USB A
RS 232
or
USB
Micro B USB A
1 M1 Output Valve + (+24Vdc/max� 0�8A)
2 M1 Output Valve -
3 M2 Output Alarm/Switch 1 (max� 30Vdc/ac/max� 1A)
4 M2 Output Alarm/Switch 2
5 M3 Input standby + (+5V ca� 10mA)
6 M3 Input standby - (0V only for Standby)
7 --- (reserved for later use, do not connect!)
8 --- (reserved for later use, do not connect!)
USB Micro B
9-pin RS 232
USB Micro B
USB Micro B
9-pin RS 232
USB Micro B
USB Micro A
9-pin RS 232
USB A
USB A
9-pin RS 232
USB A
25
