20000006188b
IC_HBC control_062019
IKA IC control
IKA HBC 5 control
IKA HBC 10 control
Operating instructions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC control and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IKA IC control

Summary of Contents for IKA IC control

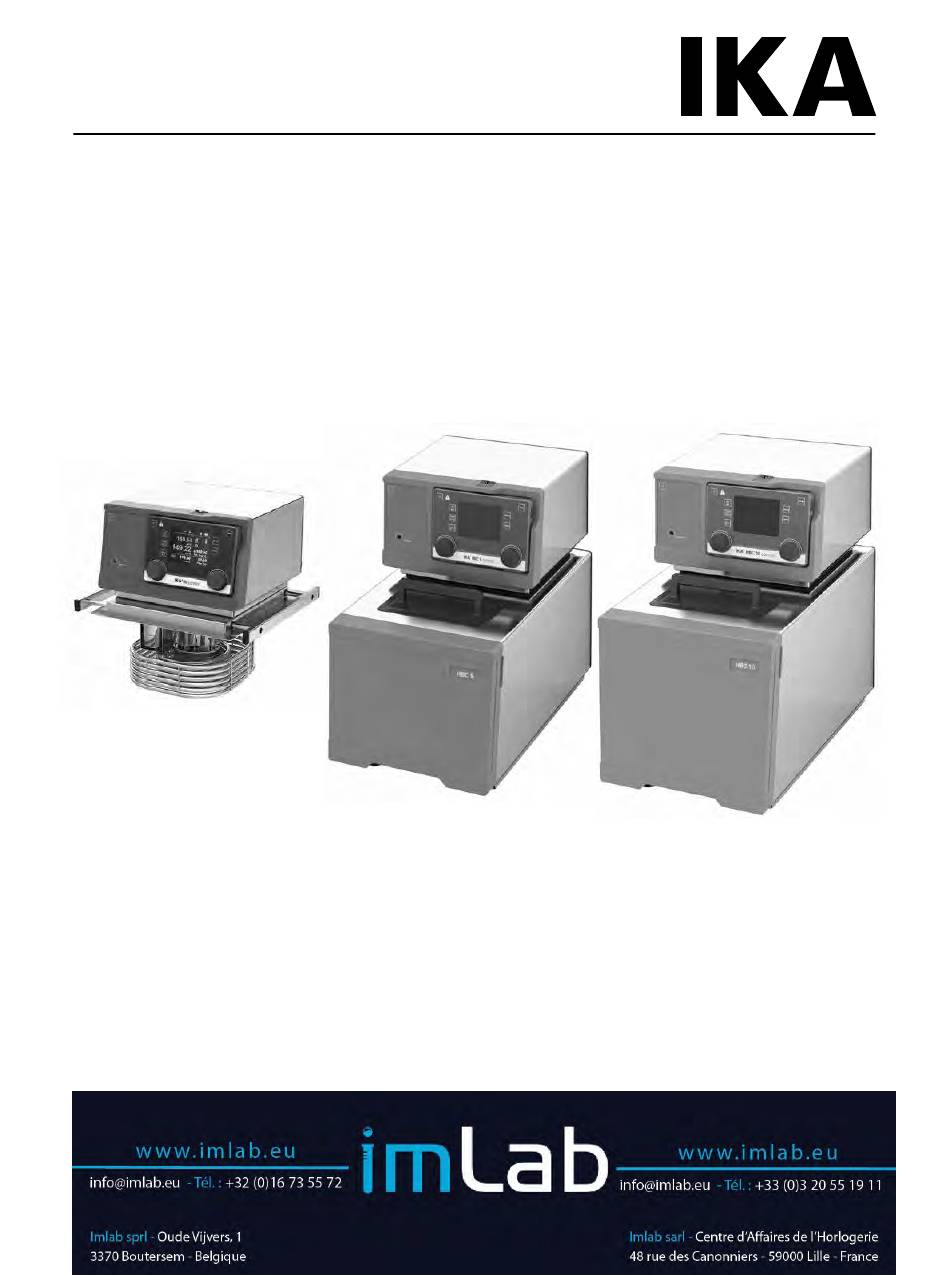

  • Page 1 20000006188b IC_HBC control_062019 IKA IC control IKA HBC 5 control IKA HBC 10 control Operating instructions...
  • Page 2 IC control, HBC 5 control, HBC 10 control: RS 232 Micro USB Pt 100 Multi I/O Fig. 1 Fig. 2 HBC 5 control, HBC 10 control: Fig. 4 Fig. 3 Item Designation Wireless Controller (WiCo) Mains switch Power socket Buoyage...

  • Page 3: Table Of Contents

    Setting up ������������������������������������������������������������������������������������������������������������������������������������������������������������ 8 Connecting the tubings ���������������������������������������������������������������������������������������������������������������������������������������� 8 Filling and draining ����������������������������������������������������������������������������������������������������������������������������������������������� 9 Fluid (Standard information for IKA fluid) ����������������������������������������������������������������������������������������������������������� 10 Cooling coil �������������������������������������������������������������������������������������������������������������������������������������������������������� 11 Charging the Battery Pack RB 1 (rechargeable battery) ��������������������������������������������������������������������������������������� 11 Changing battery to WiCo ��������������������������������������������������������������������������������������������������������������������������������� 11 WiCo –...

  • Page 4: Eu Declaration Of Conformity

    Directive: 2014/53/EU Standards: EN 60950-1, EN 300328, EN 301489-1, EN 301489-17 A copy of the complete EU Declaration of conformity can be requested at sales@ika�com� Note for USA (FCC) This equipment complies with Part 15 of the FCC rules� Any changes or modifications not expressly approved by the Manufacturer could void the user's authority to operate the equipment�...

  • Page 5: Safety Instructions

    Check the safe temperature circuit on a regular basis� any accessories� • Disconnect the mains plug before cleaning, mainte- • Securely fix the IC control immersion circulator for use nance or moving the circulator� at the bath, so that it cannot tip over�...

  • Page 6: Fluid

    It is dangerous to touch the If water is used at higher tem- CAUTION NOTICE heater� The temperature of the perature, there is heavy loss of heater can be very high� fluid due to the evaporation� • After a power failure during operation, the device may •...

  • Page 7: Intended Use

    Disposal instructions: peratures will damage the battery pack and render it unus- • When disposing of the IKA battery pack, please tape over able� Temperatures above 100 °C may cause it to explode� the contacts with adhesive tape to prevent short-circuiting •...

  • Page 8: Unpacking

    (4)� For HBC device, you need to open the lid (15) and remove the protection� • Delivery scope: IC control, HBC control, HBC 10 control: - IC control or HBC 5 control or HBC 10 control with the Wireless Controller (WiCo) according to the order Adapter Adapter...

  • Page 9: Filling And Draining

    Stop position Fig. 9 Note: Please note the permissible temperature range of hoses� For hot fluids we recommend the IKA LT 5�20 Fig. 11 hoses� When the external system is not necessary, please seal the pump connectors IN and OUT with the existing...

  • Page 10: Fluid (Standard Information For Ika Fluid)

    • Fluid (Standard information for IKA fluid): Operating temperature Operating temperature Safety temperature Flash point Designation range for open bath range for closed bath (°C) (°C) application applications (°C) (°C) CF�EG28�N10�80�8 -10 ��� 80 -10 … 80 CF�EG39�N20�80�16 -20 … 80 -20 …...

  • Page 11: Cooling Coil

    • Cooling coil: When the set temperature close to the ambient temperature, the cooling coil should be used for counter-cooling due to the self-heating� Connect the water supply and return line hoses to the cooling coil connectors (see Fig� 2)� For bath temperatures >...

  • Page 12: Operator Panel And Display

    Operator panel and display • station (IC station/HBC station): Fig. 15 Item Designation Function ON/OFF button: Switch on/off the station� Adjustable safety circuit: Adjust the safety temperature limit with delivered screwdriver� "safe STOP" button: Safe stop the working of the circulator in emergency� LED bar: Display different status of the circulator with different color�...

  • Page 13: Commissioning

    Commissioning After several seconds, screen display the information of WiCo� Check whether the voltage given on the type plate cor- responds to the available mains voltage� Information The socket used must be earthed (fitted with earth contact)� If these conditions have been met, the machine is ready Internal Max: 95 °C for operation when the mains plug is plugged in�...

  • Page 14: Setting The Safety Temperature

    In an emergency, the device If the Bluetooth function of the WiCois activated, the ® NOTICE functions can be turned off Bluetooth icon appears on the screen and the user can ® by pressing the "safe STOP" search the WiCo by pressing the searching key (E)� Then, button (C) at the front of the station�...

  • Page 15: Working With Wireless Controller (Wico)

    Working with Wireless Controller (WiCo) • Working screen at the time of delivery: Temperature Sensor: The start and information screen (see section "Commis- This symbol appears when the external temperature sioning") appears for a few seconds after the WiCo is sensor is connected�...

  • Page 16: Menu Navigation And Structure

    • Menu navigation and structure: Menu navigation: Press the "Menu" key (M)�  Select the menu by turning the right rotating/pressing knob (J) to the right  or left� Open the menu item by pressing the right rotating/pressing knob (J)� ...
  • Page 17 Menu structure: Factory Settings TEMPERING Control Control Mode Internal (int) activated External (ext) Control Parameters Automatic Accurate activated Fast Manual Internal (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) 60.0, 5.0, 0.3, 3s, +1.00, -1.00 External (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) 1.0, 15.0, 0.0, 90s, +1.00, -1.00 Information (Kp, Ti, Td, Ts, Prop_Bp, Prop_Bn) Fluids...

  • Page 18: Menu (Details)

    • Menu (Details): Ts: Sampling time The sampling time Ts (s) is the time interval over which the control deviation is determined and the respective control TEMPERING: variable (dependent on Kp, Ti and Td) is calculated� 1� Control: Ts must be adjusted to match the response characteristic (total of all time constants) of the closed loop controlled 1) Control Mode: system, so that the control variable can deliver a uniform...
  • Page 19 2� Limits: Under the option "External (ext)", the maximum and minimum temperature for external temperature control can be set� Under "l Δ T (int - ext) l", the maximum difference between the internal and external temperature can be set� Under "Power Output", the maximum heating output can be set as a percentage� 3�...
  • Page 20 PUMP GRAPH In this menu, you can set the options for the time-tem- Limits: perature diagram� In “Limits“ option, the user is allowed to set the maxi- mum and minimum speed to the pump, and also the 1� Automatic: maximum pressure� The scaling of the temperature axis (Y-axis) is automati- cally determined, depending on the target temperature and the actual internal and external temperature�...
  • Page 21 In "Ctrl�Mode Ramp", allows even heating with a defined MODULES: gradient� The segment is completed after the target tem- In "Modules" the multifunction connection (18) outputs perature has been reached� and inputs can be configured� The slope in K/min is determined by the quotient of the The outputs M1 and M2 can be controlled via "PRO- temperature difference and the time specified in the cur- GRAMS"�...
  • Page 22 Default Status: Defines the default state (OFF) of the Note: The initial time out is 30 seconds and the user "M2-Output — Alarm" as "Open" or "Closed"� It de- can define up to 60 minutes for this time limit� pends on the alarm type (normally open or closed)� 2) Speed: 2) Switch: In the “Speed“...

  • Page 23: Interface And Output

    1�1)� The NAMUR commands and the additional specific IKA co mmands serve only as low level commands for communication between the device and the PC� With a suitable terminal or communications programme these commands can be transmit- ted directly to the circulator equipment�...
  • Page 24 IN_TMODE Read temperature control 0: internal control 1: external control OUT_SP_1 xxx Set the internal setting temperature XXX (if 0: internal control) Set the external setting temperature XXX (if 1: external control) OUT_SP_12@n Set the WD safety temperature with echo of the set (defined) value� OUT_SP_4 xxx Set the pump speed XXX OUT_SP_42@n...
  • Page 25 Connection WiCo to Station: Micro B Micro A USB Micro B USB Micro A Fig. 32 Connection the device to PC: 9-pin RS 232 9-pin RS 232 RS 232 Micro B USB A USB Micro B USB A Micro B USB Micro B USB A USB A...

  • Page 26: Maintenance And Cleaning

    - Do not allow moisture to get into the device when Storage packaging is not sufficient� Please also use cleaning� suitable trans-port packaging� - Before using another than the recommended method for cleaning or decontamination, the user must ascertain with IKA that this method does not damage the device�...

  • Page 27: Error Codes

    Error codes Any malfunctions during operation will be identified by an error message on the display� Proceed as follows in such cases:  Switch off device using the main switch at the back of the device  Carry out corrective measures ...

  • Page 28: Accessories

    USB 2�0 cable micro A – micro B • • • USB 2�0 cable A – micro B • • • OS 1�0 Power supply • • • RB 1 Battery pack • • • Labworldsoft • • • ® See more accessories on www�ika�com�...

  • Page 29: Technical Data

    Technical data IC control HBC 5 control HBC 10 control Operating voltage 230 ± 10 % ���100–115 ± 10 % Frequency 50 / 60 Max� input Power 2650 (230 VAC) / 1400 (115 VAC) Working temperature range (RT+10 at 1000rpm) °C RT + 10 ���...

  • Page 30: Warranty

    Warranty In accordance with IKA warranty conditions, the warranty apply to faults resulting from improper use, insufficient period is 24 months� For claims under the warranty please care or maintenance not carried out in accordance with contact your local dealer� You may also send the machine the instructions in this operating manual�...
