IN_TMODE Read temperature control 0: internal control
OUT_SP_1 xxx Set the internal setting temperature XXX (if 0: internal control)
Set the external setting temperature XXX (if 1: external control)
OUT_SP_12@n Set the WD safety temperature with echo of the set (defined) value�
OUT_SP_4 xxx Set the pump speed XXX
OUT_SP_42@n Set the WD-safety speed with echo of the set (defined) value�
OUT_TMODE_0 Set to Internal temperature control
OUT_TMODE_1 Set to External temperature control
OUT_WD1@n Start the watchdog mode 1 and set the time for the watchdog to n (20���1500) seconds�
Echo of the Watchdog time�
During a WD1-event, the heating and pump functions are switched off�
This command needs to be send within the watchdog time�
OUT_WD2@n Start the watchdog mode 2 and set the watchdog time to n (20���1500) seconds�
Echo of the watchdog time�
During a WD2-event, the set temperature is changed to the WD safety temperature and the pump set
speed is set to the WD safety speed�
This command needs to be send within the watchdog time�
RESET Reset the PC control and stop the device functions�
START_1 Start the heating function
START_4 Start the pump function
STOP_1 Stop the heating function
STOP_4 Stop the pump function

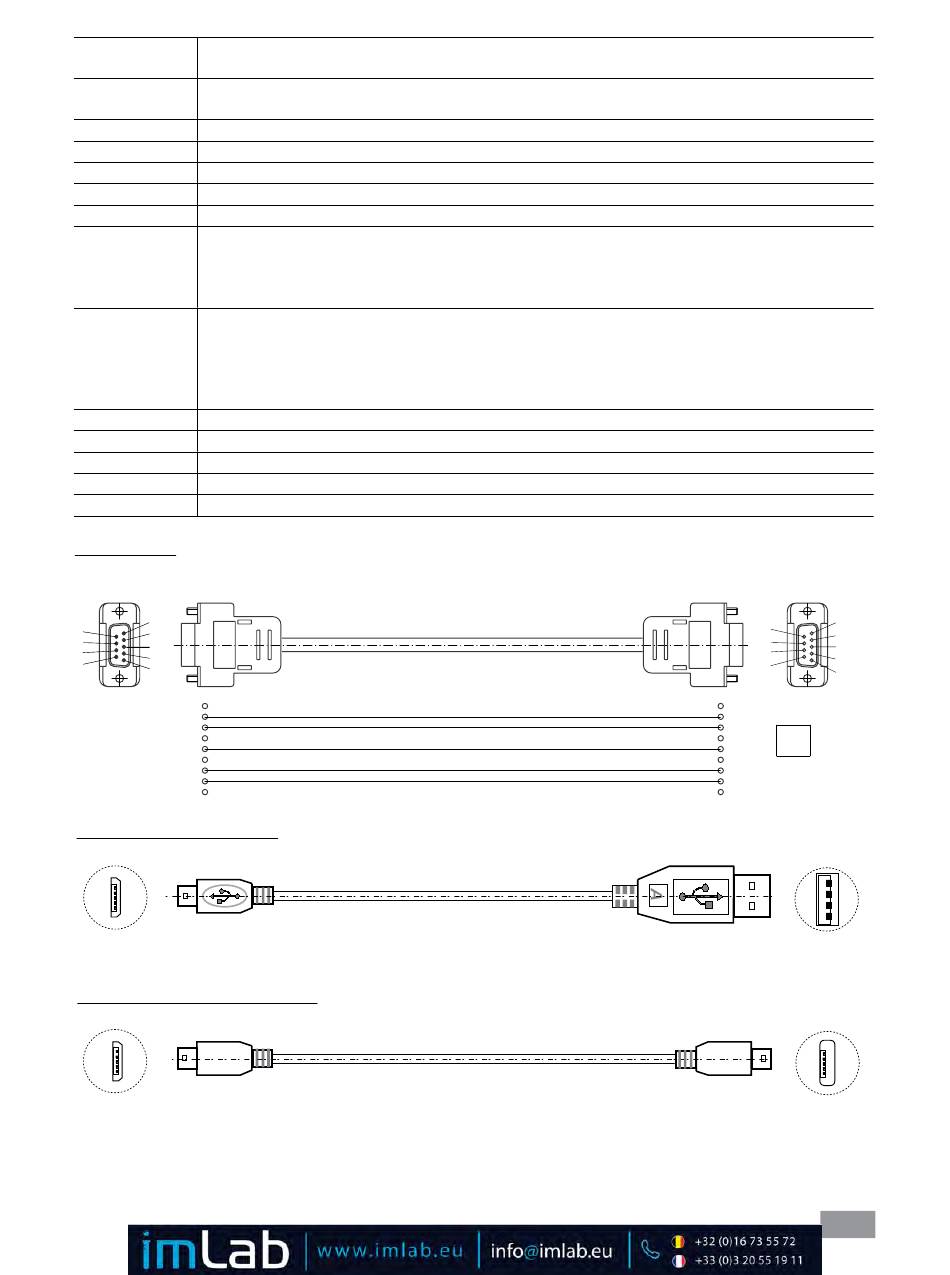

PC 1�1 Cable:
This cable is required to connect RS 232 port (9) to a PC�
1
6
2
7
3
8
4
9
5
1
RxD 2
TxD 3
4
GND 5
6
RTS 7
CTS 8
Fig. 29
9
USB 2�0 Kabel A - Micro B:
This cable is required to connect USB interface (10) to a PC�
USB micro B
Fig. 30
USB 2�0 Kabel Micro A - Micro B:
This cable is required to connect the WiCo to station�
USB Micro B
Fig. 31
1: external control
5
9
4
8
3
7
2
6
1
1
2 RxD
3 TxD
PC
4
5 GND
6
7 RTS
8 CTS
9
USB A
USB Micro A
