Summary of Contents for IKA I-MAG 300

  • Page 1 I-MAG...
  • Page 2 ENGLISH...
  • Page 3: Table Of Contents

    EU Declaration of conformity �������������������������������������������������������������6 Explication of warning symbols ��������������������������������������������������������� 6 Safety instructions ����������������������������������������������������������������������������� 7 Intended use ������������������������������������������������������������������������������������� 9 Unpacking ���������������������������������������������������������������������������������������� 9 Useful information �������������������������������������������������������������������������� 10 Fig� 1 Installation �������������������������������������������������������������������������������������� 10 Operator panel and display ������������������������������������������������������������� 12 Operation ��������������������������������������������������������������������������������������� 14 Interfaces and outputs ��������������������������������������������������������������������...
  • Page 4: Eu Declaration Of Conformity

    › Keep the operating instructions in a place where it can be accessed by everyone� › Ensure that only trained staff work with the device� A copy of the complete EU Declaration of Conformity can be requested at sales@ika.com� › Follow the safety instructions, guidelines, occupational health and safety and accident prevention regulations�...
  • Page 5: Intended Use

    /// Maintenance › The device may only be opened by qualified and IKA approved experts� The device must be unplugged from the power supply before opening� Live parts inside the device may still be live for some time after unplugging from the power supply�...
  • Page 6: Useful Information

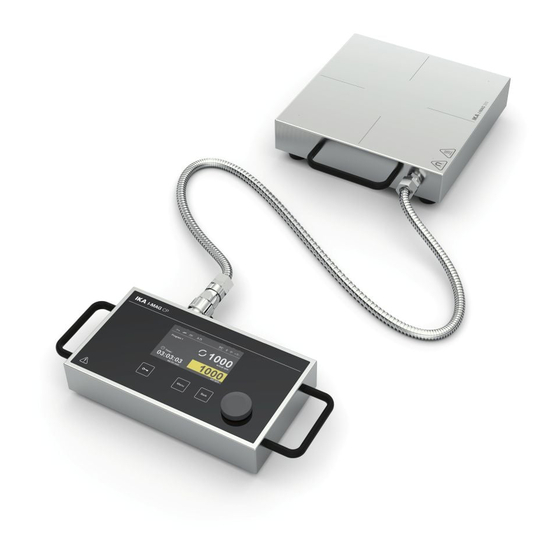

    /// Place the vessel with a magnetic rod Installation Notice! › Small vessels, especially those made of metal, must be secured against twisting! /// Connect the I-MAG 300 to the I-MAG CP I-MAG 300 Click I-MAG CP Menu...
  • Page 7: Operator Panel And Display

    RS 232 interface Display Ethernet interface Rotating / pressing knob USB interface “Back“ button Interface (Pedal switch) “Menu“ button Interface analog signal (input) Button lock Interface analog signal (output) Power socket Setup plate I-MAG 300 interface Connection cable I-MAG CP...
  • Page 8: Operation

    Operation /// Stirring › Set the speed using the rotating / pressing knob� /// Switch on The set speed value is shown on the right of the display� › Press the rotating / pressing knob to start the stirring function� Switch on (rpm) actual rpm...
  • Page 9 /// Menu structure Display Brightness 100% (10%���100%) Background Black Firmware Update Information  Sound Volume 100% (10%���100%) Menu Key tone Factory Settings Menu settings Menu Programs Network Factory settings Information Display firmware version 0�0�028 Logic firmware version 0�0�010 Minimum Speed limit 100 rpm Display build time Maximum...
  • Page 10 Analog signal Analog signals can be processed between the I-MAG and an external device that can work with Operating Mode the voltage ranging from 0 to 5 V� Note: Before the calibration, please set both "Input control" and "Output control" to "OFF"� Input control: If the analog input is activated, the set speed will be changed by the input signal After power-on / power failure no automatic restart of functions�...
  • Page 11 /// Lock button Safety › An active locking is indicated by the symbol ( )� Password In the menu option “Password”, you can lock the menu settings by a 3-digit password (factory setting: 0 0 0)� If you have forgotten the password, contact our service department� Menu Back Network...
  • Page 12: Interfaces And Outputs

    First, download the latest driver for IKA devices with USB interface from: https://www.ika.com/ika/lws/download/CP210x_Universal_Windows_Driver.zip /// Connections between I-MAG and external devices Install the driver by running the setup file� Then connect the IKA device to the PC via the USB PC 1.1 cable: data cable and follow the instructions�...
  • Page 13: Maintenance And Cleaning

    › For cleaning disconnect the mains plug! Error code | Causes | Effect | Solutions › Use only cleaning agents which have been approved by IKA to clean IKA devices� These are: water (containing surfactant) and isopropyl alcohol Error 03 - Device internal temperature is too high ›...
  • Page 14: Technical Data

    Weight 6 kg 2 kg › In accordance with IKA warranty conditions, the warranty period is 24 months� For claims under the warranty please contact your local dealer� You may also send the device direct to Protection class our factory, enclosing the delivery invoice and giving reasons for the claim� You will be liable Contamination level for freight costs�...
  • Page 15 Phone: +84 28 38202142 Phone: +66 2059 4690 Phone: +90 216 394 43 43 eMail: sales�lab-vietnam@ika�com eMail: sales�lab-thailand@ika�com eMail: sales�turkey@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
