Installation Instructions; Step 1 - Remove Head Cover; Step 2 - Remove Pushpad Assembly; Step 3 - Slide Pushpad Assembly - Command access MLRK1 Instructions Manual

Field-installable motorized latch-retraction kit for mlrk1-dor - dorma 9000 series exit devices

Hide thumbs Also See for MLRK1:

Insert instructions (10 pages)

Instructions manual (7 pages)

Installation instructions (5 pages)

Table Of Contents

Table of Contents

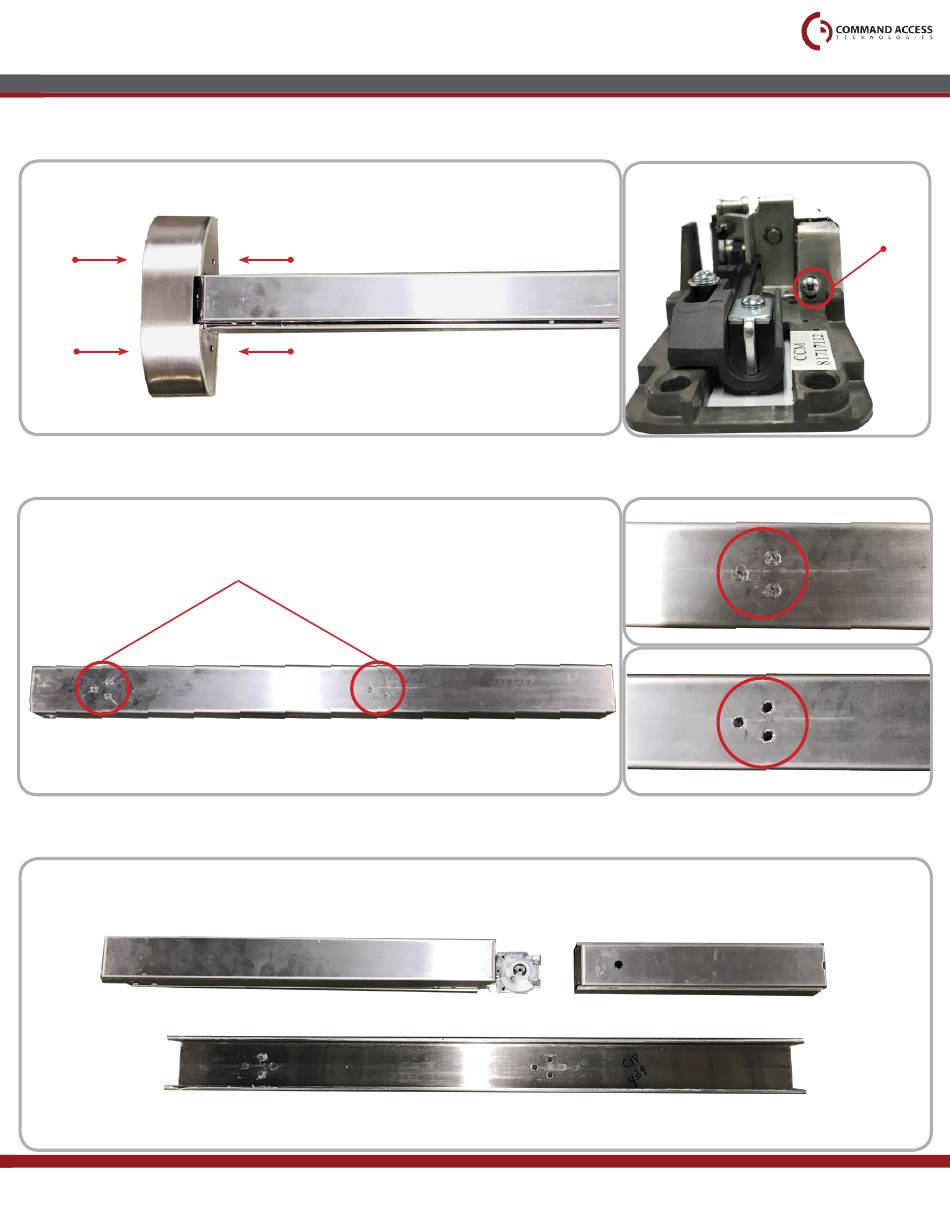

Remove Head Cover (4 screws) and Head Assembly (2 screws).

Head Cover

Flip the bar over and remove the 6 Screws holding the Pushpad Assembly to the Base Rail.

6 Screws

Slide Pushpad Assembly and Slide Cover out of the Base Rail.

Pushpad Assembly
