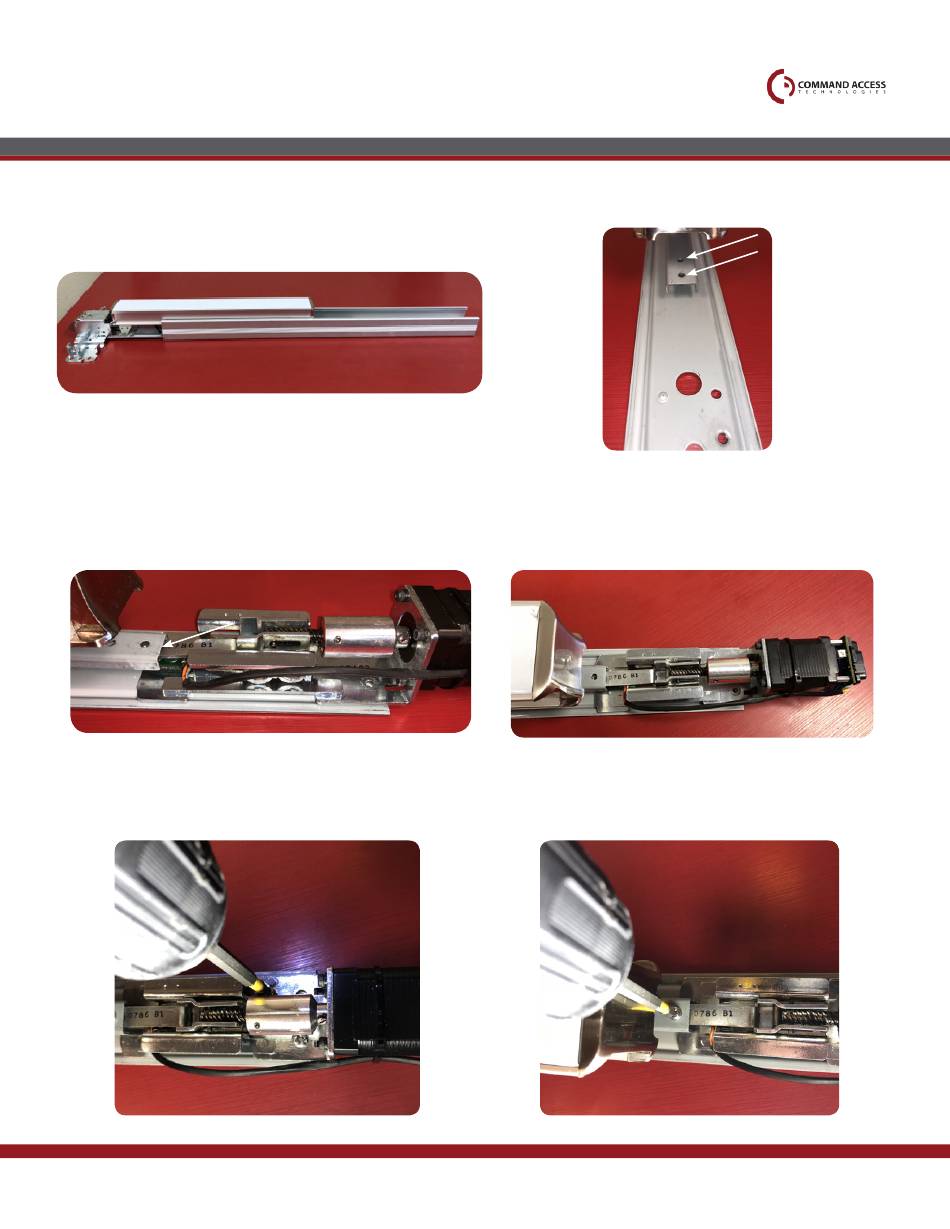

Installation Instructions - Command access MLRK1 Installation Instructions

1.
SLIDE HOUSING OFF TO REVEAL BASERAIL. YOU MAY HAVE TO REMOVE
TWO SCREWS FROM UNDERSIDE OF HOUSING BEFORE SLIDING OFF.
3.
INSTALL KIT ON TOP OF BASERAIL & ATTACHING BRACKET, SLIDING
UNDERNEATH THE CONNECTING ROD.
5.
INSTALL BOTH (40786) SCREWS & (40351) LOCK WASHERS PARTIALLY,
SO THE BASERAIL CAN STILL SLIDE BACK INTO THE HOUSING.
C o m m a n d A c c e s s T e c h n o l o g i e s | 2 2 9 0 1 L a P a l m a A v e , Y o r b a L i n d a , C A 9 2 8 8 7 | P h o n e : ( 8 8 8 ) 6 2 2 - 2 3 7 7

INSTALLATION INSTRUCTIONS

• partially tighten
2.
IF YOUR DEVICE HAS DOGGING, YOU NEED TO REMOVE BOTH SCREWS FROM
CONNECTING ROD.
4.
THE KIT WILL LINE UP WITH THE EXISTING SCREW HOLES ON THE BASERAIL &
1ST SCREW HOLE ON THE CONNECTING ROD.
6.
INSTALL (40064) SCREW TO SECURE ATTACHING BRACKET TO CONNECTING ROD
#2 For hole #2, you'll need
to start loosing it by
#1
using vise grips or a
needle nose pliers &
work the screw loose.
