MLRK1-HAG/LAW/LSDA1
The Command Access MLRK1 is a field installable motorized latch-retraction kit for:
• MLRK1-LAW - Lawrence Hardware 8000 series devices
• MLRK1-PDQ - PDQ 6200 series devices
• MLRK1-HAG - Hager 4500 series devices
• MLRK1-SQ - Stanley QED 1000 & 2000 seires devices
• MLRK1-LSDA1 - IDN LSDA 9000
A.

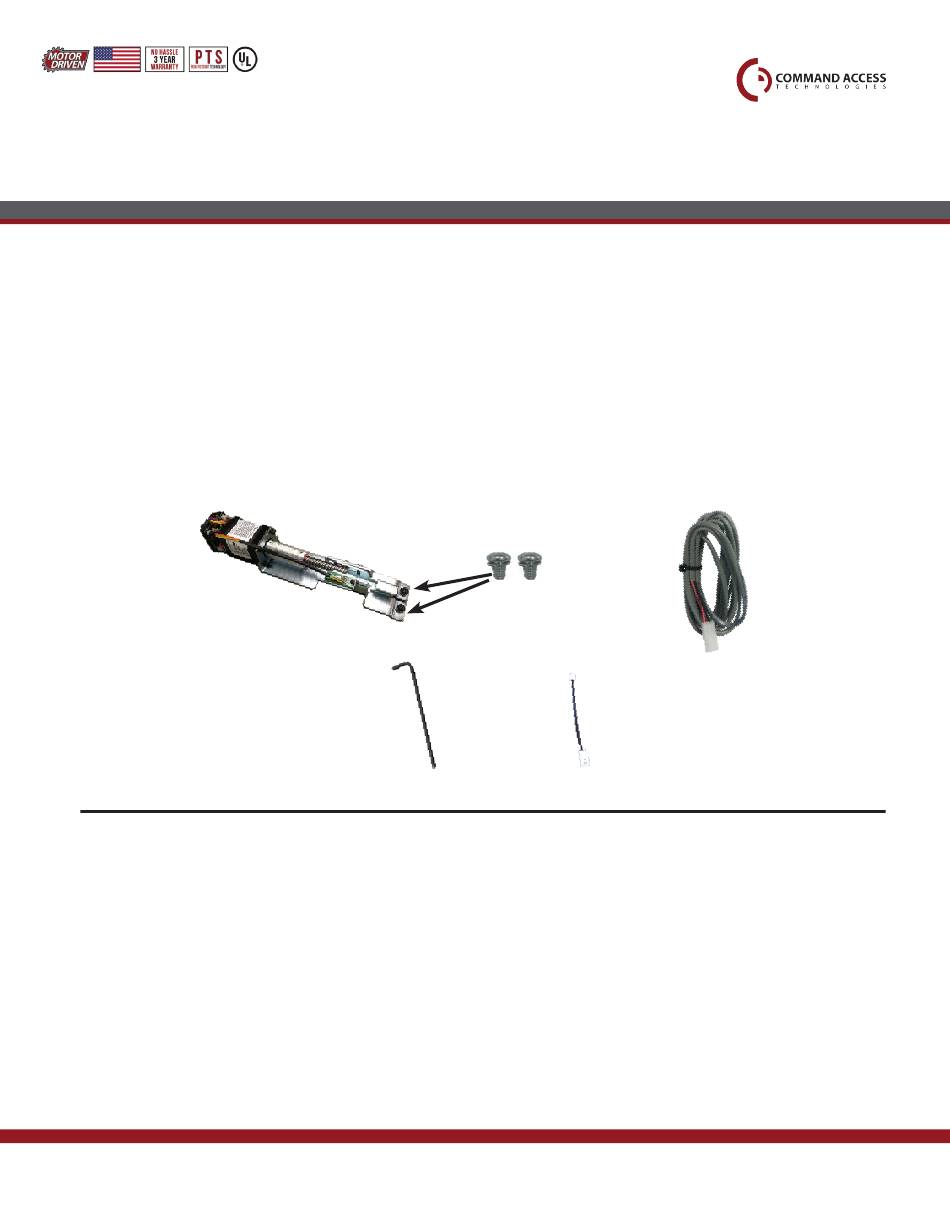

Kit I nc lu d e s
Motor Mount w/ MM4S series Module
A.
2- 40389 Allen Screws w/ 40390 Washers
B.
1- 50030 8' Power Lead
C.
1- 40389 3/32" Allen Wrench
D.
1- 50944 MM4S Socket Lead
E.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
INSERT Instructions
B.
E.
D.
C.
T oo l s R eq uir e d
#2 Phillips head screwdriver
1
# 2 0 2 2 7 _ G
Advertisement
Table of Contents
Related Manuals for Command access MLRK1-HAG
Summary of Contents for Command access MLRK1-HAG
- Page 1 MLRK1-HAG/LAW/LSDA1 INSERT Instructions The Command Access MLRK1 is a field installable motorized latch-retraction kit for: • MLRK1-LAW - Lawrence Hardware 8000 series devices • MLRK1-PDQ - PDQ 6200 series devices • MLRK1-HAG - Hager 4500 series devices • MLRK1-SQ - Stanley QED 1000 & 2000 seires devices •...
- Page 2 Technical Information SPECIFICATIONS MM4S SWITCHES Standard Torque Mode • Input Voltage: 24VDC +/- 10% Average Latch Retraction Current: 900 mA • Wire gauge: Minimum 18 gauge STANDARD TORQUE Average Holding Current: 215 mA HIGH TORQUE • Direct wire run - no relays or access control PTS PROGRAMMING ON units in-between power supply &...
- Page 3 Optional Placement R ecommend ed Po w er Su ppli e s: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. U S C U S T O M E R S U P P O R T 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | W W W . C O M M A N D A C C E S S . C O M | C A C U S T O M E R S U P P O R T 1 - 8 5 5 - 8 2 3 - 3 0 0 2...
- Page 4 Installation Instructions Remove head cover. Remove filler plate. Slide off housing, exposing baserail and push pad. Remove (2) screws securing base rail to housing. If your device has dogging, remove it with steps 6 & 7. Flip over the push pad and remove (2) phillips screws if your device doesn’t, please skip ahead 3 steps.
- Page 5 CONTINUED Remove dogging assembly and place aside. Remove (2) screws from back of the push pad. Remove push pad end cap Depress the push pad to extend dogging hole. Slide motor mount attaching hook into dogging hole. Release push pad and line up holes on baserail Install the provided (2) screws and washers with the with holes on motor mount underneath.
- Page 6 CONTINUED Re-install the push pad end cap with (2) screws. Slide housing back onto baserail, being cautious not to pitch any wires While sliding housing back on, make sure the Confirm motor has seated properly by seeing if the motor bracket fits between the exsiting groves. bottom bracket is sitting flush on the baserail.
- Page 7 CONTINUED Re-install filler plate being cautious of wires. Re-install the head cover. Hook up to power. Depress push pad & set PTS adjustment. remembering to turn the Programming Switch to the off position when completed. Setting PTS MM4S SWITCHES Select your preferred torque mode (ships in standard torque) Press the device push pad to the STANDARD TORQUE Step 1- desired setting.
