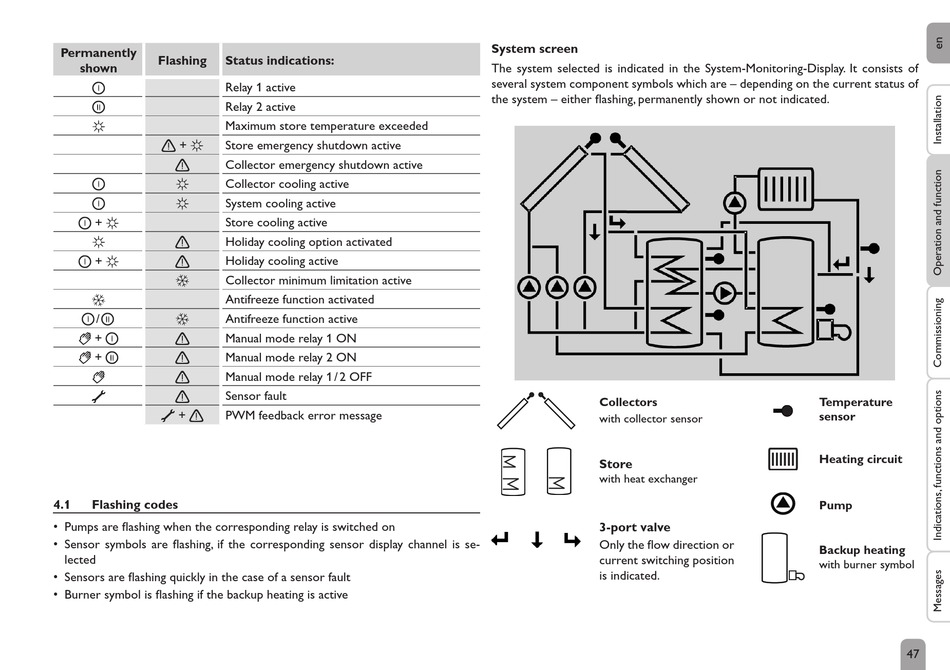

Flashing Codes - Resol DeltaSol CS Plus bidirectional Manual For The Specialised Craftsman

Permanently
Flashing Status indications:
shown
Relay 1 active
⓵
Relay 2 active
⓶
Maximum store temperature exceeded
☼
Store emergency shutdown active
⚠ + ☼
Collector emergency shutdown active
⚠
Collector cooling active
⓵ ☼
System cooling active
⓵ ☼
Store cooling active
⓵ + ☼
Holiday cooling option activated
☼ ⚠
⓵ + ☼ Holiday cooling active
⚠
Collector minimum limitation active
❄
Antifreeze function activated
❄
⓵ / ⓶ Antifreeze function active
❄
☛ + ⓵ Manual mode relay 1 ON
⚠
Manual mode relay 2 ON
☛ + ⓶
⚠
Manual mode relay 1 / 2 OFF
☛ ⚠
Sensor fault
☍ ⚠
☍ + ⚠ PWM feedback error message
4.1

Flashing codes

• Pumps are flashing when the corresponding relay is switched on
• Sensor symbols are flashing, if the corresponding sensor display channel is se-
lected
• Sensors are flashing quickly in the case of a sensor fault
• Burner symbol is flashing if the backup heating is active
System screen
The system selected is indicated in the System-Monitoring-Display. It consists of
several system component symbols which are – depending on the current status of
the system – either flashing, permanently shown or not indicated.
Collectors
with collector sensor
Store
with heat exchanger
3-port valve
Only the flow direction or
current switching position
is indicated.
Temperature
sensor
Heating circuit
Pump
Backup heating
with burner symbol
47
