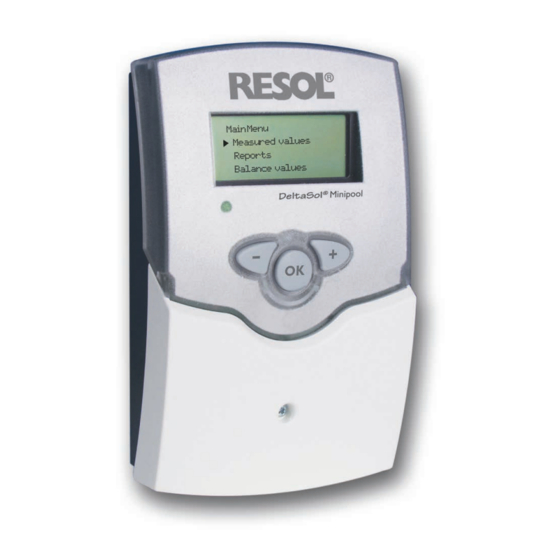

MiniPool
DeltaSol
Controller for heating a
swimming pool
Manual for the
specialised craftsman
Installation
Operation
Functions and options
Troubleshooting
en
Thank you for buying this RESOL product.
Manual
Please read this manual carefully to get the best performance from this unit.
Please keep this manual safe.
www.resol.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Resol DeltaSol MiniPool
Summary of Contents for Resol DeltaSol MiniPool
- Page 1 Manual for the specialised craftsman Installation Operation Functions and options Troubleshooting Thank you for buying this RESOL product. Manual Please read this manual carefully to get the best performance from this unit. Please keep this manual safe. www.resol.com...
- Page 2 Safety advice Target group Please pay attention to the following safety advice in order to avoid danger and These instructions are exclusively addressed to authorised skilled personnel. damage to people and property. Only qualified electricians should carry out electrical works. Initial installation must be effected by the system owner or qualified personnel named by the system owner.
-
Page 3: Table Of Contents
MiniPool DeltaSol ® The DeltaSol Minipool is a controller for heating a swimming pool by means The DeltaSol Minipool can easily be connected to other modules via the VBus ® ® ® of solar collectors and optimised operation of the filter system. Furthermore, the controller has many additional pool functions such as: maximum limitation of flow temperature, pool cooling function and a flushing function. -
Page 4: Overview
• Heat quantity measurement Supply connection: type Y attachment • Operating hours counter Standby: ca. 2 W Mode of operation: type 1.C.Y action Rated impulse voltage: 2.5 kV Data interface: RESOL VBus ® upper fastening VBus ® current supply: 30 mA Functions: function control, filter runtime monitoring, maximum flow temper- 2.6"... -
Page 5: Installation
Installation 2.1 Mounting display Electric shock! WARNING! Upon opening the housing, live parts are exposed! Î Always disconnect the controller from power supply before opening the housing! ATTENTION! ESD damage! Electrostatic discharge can lead to damage to electronic com- ponents! Î... -
Page 6: Electrical Connection
IP 20 2.2 Electrical connection 2.3 Data communication / Bus Temp. Sensor Pt1000 The controller is equipped with the RESOL VBus for data ® VBus Electric shock! WARNING! transfer with and energy supply to external modules. The con- 9 10 Upon opening the housing, live parts are exposed! nection is carried out at the two terminals marked “VBus”... -
Page 7: Basic System
Basic system Sensor allocation DeltaSol MiniPool T - freely T0,8A Tabsorber Tpool Tflow Made in Germany 220 ... 240 V~ selectable 50-60 Hz 0,5 (0,5)A (220 ... 240) V~ IP 20 0,5 (0,5)A (220 ... 240) V~ Relay allocation Temp. Sensor Pt1000... -
Page 8: Operation And Function
Operation and function 4.1 Push buttons 4.2 Operational concept Adjustment mode In the adjustment mode, different functions can be selected and values can be ad- justed. Î To access the adjustment mode, scroll down past the last adjustment channel and press button 1 for approx. three seconds. backwards (-) Î... -
Page 9: Status Display
Status display In the status display, the operating status of the system is indicated: Minimum filter runtime: Solar: on: Solar loading is active Solar: off: Solar loading is inactive Cooling is active, pool temperature is displayed Cooling: Filtration: Filter pump is active; the remaining time is displayed Adjustments: Minimum filter runtime Additionally, possible causes for the Solar: on and Solar: off status of the system... -
Page 10: Menu Structure
Menu structure 6.1 Display values 6.3 Functions / Adjustment values The following values are displayed: Display Description Display Description DTon Switch-on difference Absorber temperature in °C DToff Switch-off difference TAbsorber Pool temperature in °C Maximum pool temperature Tpool poolmax Flow temperature in °C Delay Tflow T-DTon... -
Page 11: Functions And Options
Functions and options Switch-on difference Minimum break time Adjustments/DTon Adjustments/Min off Adjustment range: 0.2 … 25.0 K Adjustment range: 0 … 10 min Factory setting: 2.5 K Factory setting: 2 min Adjustment of the switch-on difference (TAbsorber - TPool) for the solar circuit Adjustment of the minimum break time in minutes. - Page 12 Circulation function Absorber maximum limitation Adjustments/circulation Adjustments/Absorbermax. Selection: “Yes”, “No” Selection: “Yes”, “No” Factory setting: “No” Factory setting: “No” If the solar system has not been active for the period of one hour, it will be switched The absorber maximum limitation inhibits solar loading from the absorber if the on for 1 …...
-
Page 13: Error Indication
Pool cooling function Manual operation Adjustments/poolcooling Manual operation/Relay1 (2) Selection: “Yes”, “No” Selection: “Off”, “On”, “Auto” Factory setting: “No” Factory setting: “Auto” Each relay can be set into the Off / On / Auto mode. During normal operation, the Experte/Adjustments/DTcool relay is set to Auto. -
Page 14: Troubleshooting
Check the power supply. Is it disconnected? Overvoltage protection device In order to avoid overvoltage damage at collector sensors (e.g. caused by local lightning storms), we recommend the overvoltage protection RESOL SP10. The fuse of the controller could Check the supply line and recon- 10.2 VBus... - Page 15 For transmission of the data stored in the internal memory of the DL2 to a PC, an SD card can be used. The DL2 is appropriate for all controllers with RESOL VBus . It can be connected ®...
- Page 16 - they only represent use outside the copyright requires the approval of RESOL – Elektronische some examples. They can only be used at your own risk. No liability is assumed for Regelungen GmbH.
