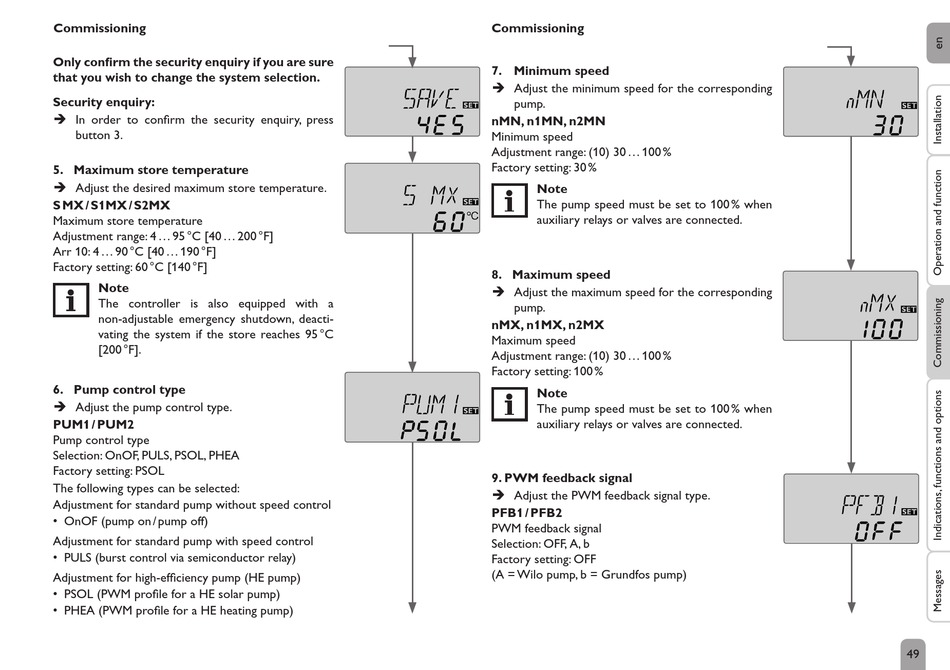

Resol DeltaSol CS Plus bidirectional Manual For The Specialised Craftsman page 49

Commissioning
Only confirm the security enquiry if you are sure
that you wish to change the system selection.
Security enquiry:
Î In order to confirm the security enquiry, press
button 3.
5. Maximum store temperature
Î Adjust the desired maximum store temperature.
S MX / S1MX / S2MX
Maximum store temperature
Adjustment range: 4 ... 95 °C [40 ... 200 °F]
Arr 10: 4 ... 90 °C [40 ... 190 °F]
Factory setting: 60 °C [140 °F]
Note
The controller is also equipped with a
non-adjustable emergency shutdown, deacti-
vating the system if the store reaches 95 °C
[200 °F].
6. Pump control type
Î Adjust the pump control type.
PUM1 / PUM2
Pump control type
Selection: OnOF, PULS, PSOL, PHEA
Factory setting: PSOL
The following types can be selected:
Adjustment for standard pump without speed control
• OnOF (pump on / pump off)
Adjustment for standard pump with speed control
• PULS (burst control via semiconductor relay)
Adjustment for high-efficiency pump (HE pump)
• PSOL (PWM profile for a HE solar pump)
• PHEA (PWM profile for a HE heating pump)
Commissioning
7. Minimum speed
Î Adjust the minimum speed for the corresponding
pump.
nMN, n1MN, n2MN
Minimum speed
Adjustment range: (10) 30 ... 100 %
Factory setting: 30 %
Note
The pump speed must be set to 100 % when
auxiliary relays or valves are connected.
8. Maximum speed
Î Adjust the maximum speed for the corresponding
pump.
nMX, n1MX, n2MX
Maximum speed
Adjustment range: (10) 30 ... 100 %
Factory setting: 100 %
Note
The pump speed must be set to 100 % when
auxiliary relays or valves are connected.
9. PWM feedback signal
Î Adjust the PWM feedback signal type.
PFB1 / PFB2
PWM feedback signal
Selection: OFF, A, b
Factory setting: OFF
(A = Wilo pump, b = Grundfos pump)
49
