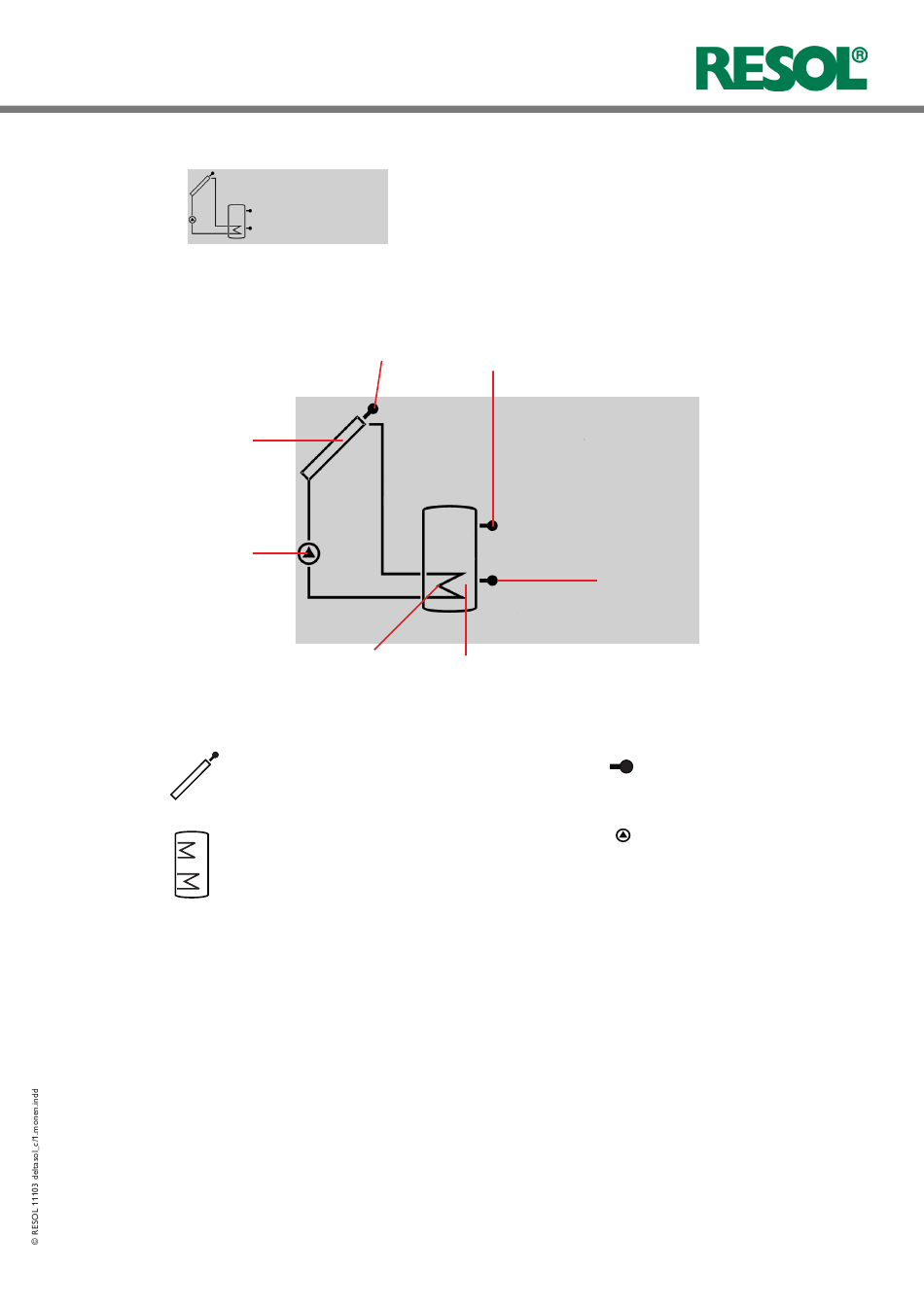

2.2.3 System-Screen

System screen
collector
pump
store heat exchanger

2.3 Flashing codes

sensor
store sensor top
store
collector
with collector sensor
store
with heat exchanger
The system screen (active arrangement) shows the scheme
which has been selected. The screen consists of several
system component symbols, which are - depending on the
current status of the system - either flashing, permanently
shown or „hidden".
sensor
• Pump symbols are flashing during the initialisation phase
• Sensor symbols are flashing when the corresponding sen-
sor display channel is selected.
• Sensor symbols are flashing in the case of a sensor fault.
temperature sensor
pump
