Resol DeltaSol CS Plus bidirectional Manual For The Specialised Craftsman page 31

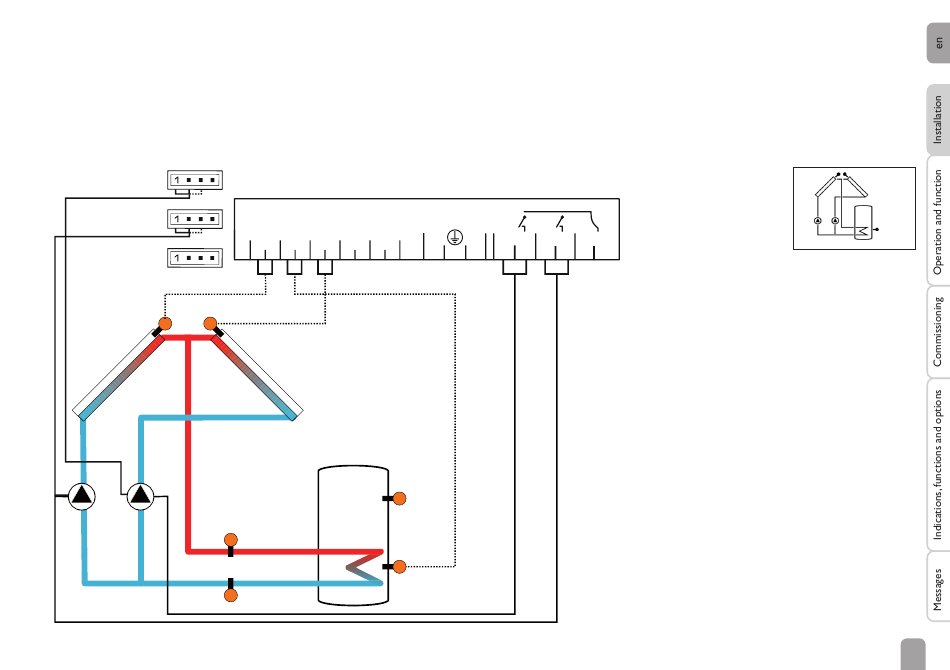

Arrangement 7: Solar system with east-/west collectors and 1 store
The controller calculates the temperature difference between collector sensors
S1 and S3 and store sensor S2. If the differences are larger than or identical to the
adjusted switch-on temperature difference (DT O), one or both pumps will be acti-
vated by relay 1 and / or relay 2, and the store will be loaded until the switch-off tem-
perature difference (DT F) or the maximum store temperature (S MX) is reached.
PWM 2
PWM 1
VFD
S3
S1
R2
R1
S1 S2 S3 S4 VBus
1 2 3 4 5 6 7 8 9 10
S4 /
TSTT
S4 / VFD / TFL
S2
S4 / VFD / TR
Sensor S4 can optionally be used as the reference sensor for the store emergency
shutdown option (OSEM). If the heat quantity measurement option (OHQM) is acti-
vated, S4 or VFD can be used for measuring the temperature (see table on p. 63).
N R2 N R1 N L
12 13 14 15 16 17
18 19 20
31
