2.2.3 System-Screen

System screen
collector
valve
pumps
store heat exchanger

2.3 Flashing codes

sensor
store
collectors
with collector sensor
store 1 and 2
with heat exchanger
3-port valve
the flow direction or the current
switching position is shown

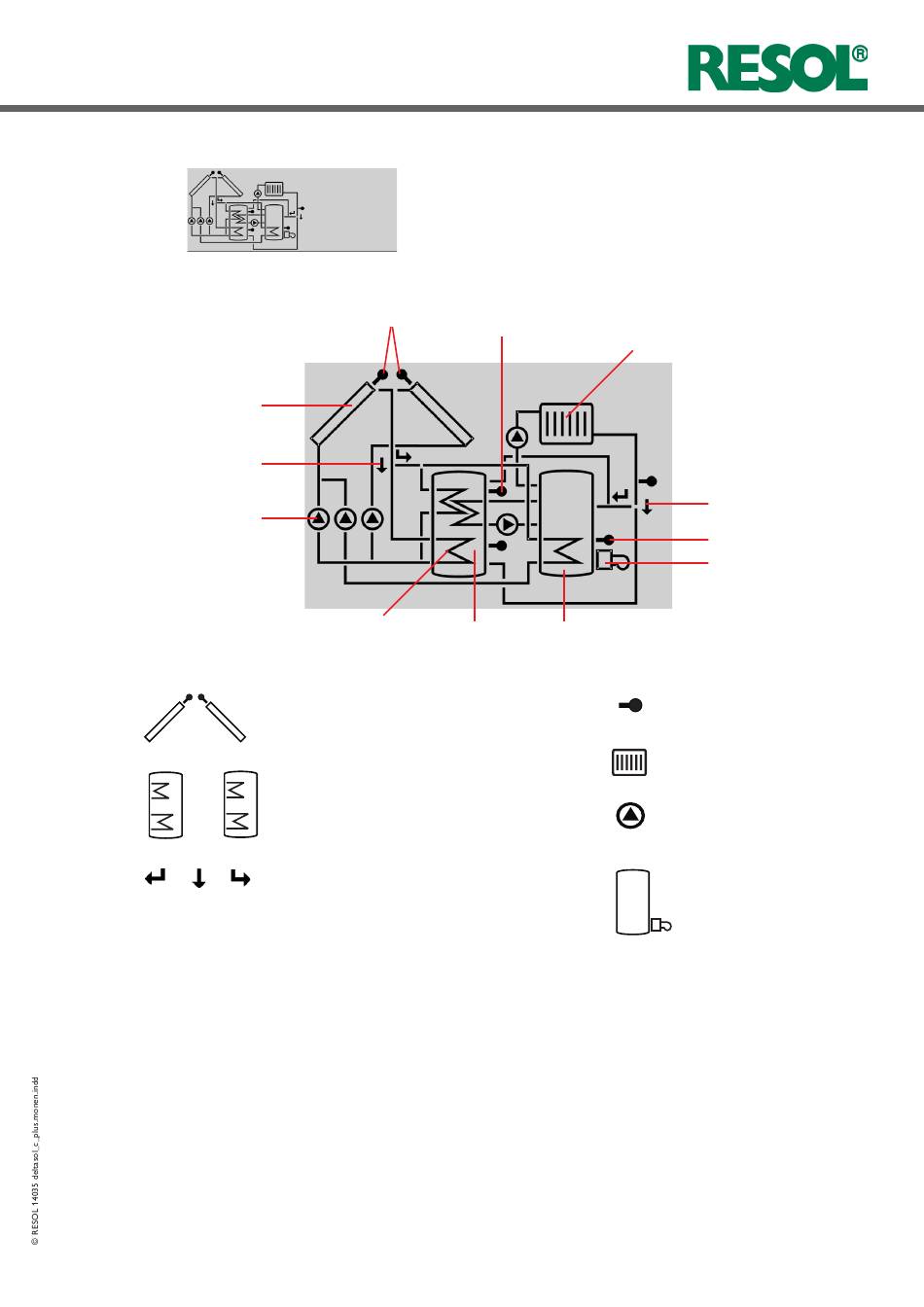

The system screen (active arrangement) shows the scheme
which has been selected. The screen consists of several
system component symbols, which are - depending on the
current status of the system - either flashing, permanently
shown or „hidden".
sensor store bottom
heating circuit
store 2 or afterheating (with
additional symbol)
• Pump symbols are flashing during the initialisation phase
• Sensor symbols are flashing when the corresponding sen-
sor display channel is selected.
• Sensor symbols are flashing in the case of a sensor fault
• Burner symbol is flashing when the after-heating is active.
valve
sensor
additional symbol
operation of the
burner
temperature sensor
heating circuit
pump
after-heating
with burner symbol
