IKA C 7000 Operating Instructions Manual page 19

3DJH
Commands and test parameters are entered in interactive mode using the key pad,
and entries can be seen in the display.
To enter parameters, there is a membrane-type key pad in the removable control
section of the calorimeter. There is also an illuminated two-line display with 40 char-
acters in each line. The display contrast can be individually adjusted using the con-
trol on the rear of the unit.
During a test, all phases of the measurement process are controlled and monitored,
and the display shows the current state of the system and test data.
In the measuring cell, calorimetric tests are carried out. They involve burning a sam-
ple of combustible material under precisely defined conditions. In the decomposition
vessel, there are four temperature sensors, which record its temperature.

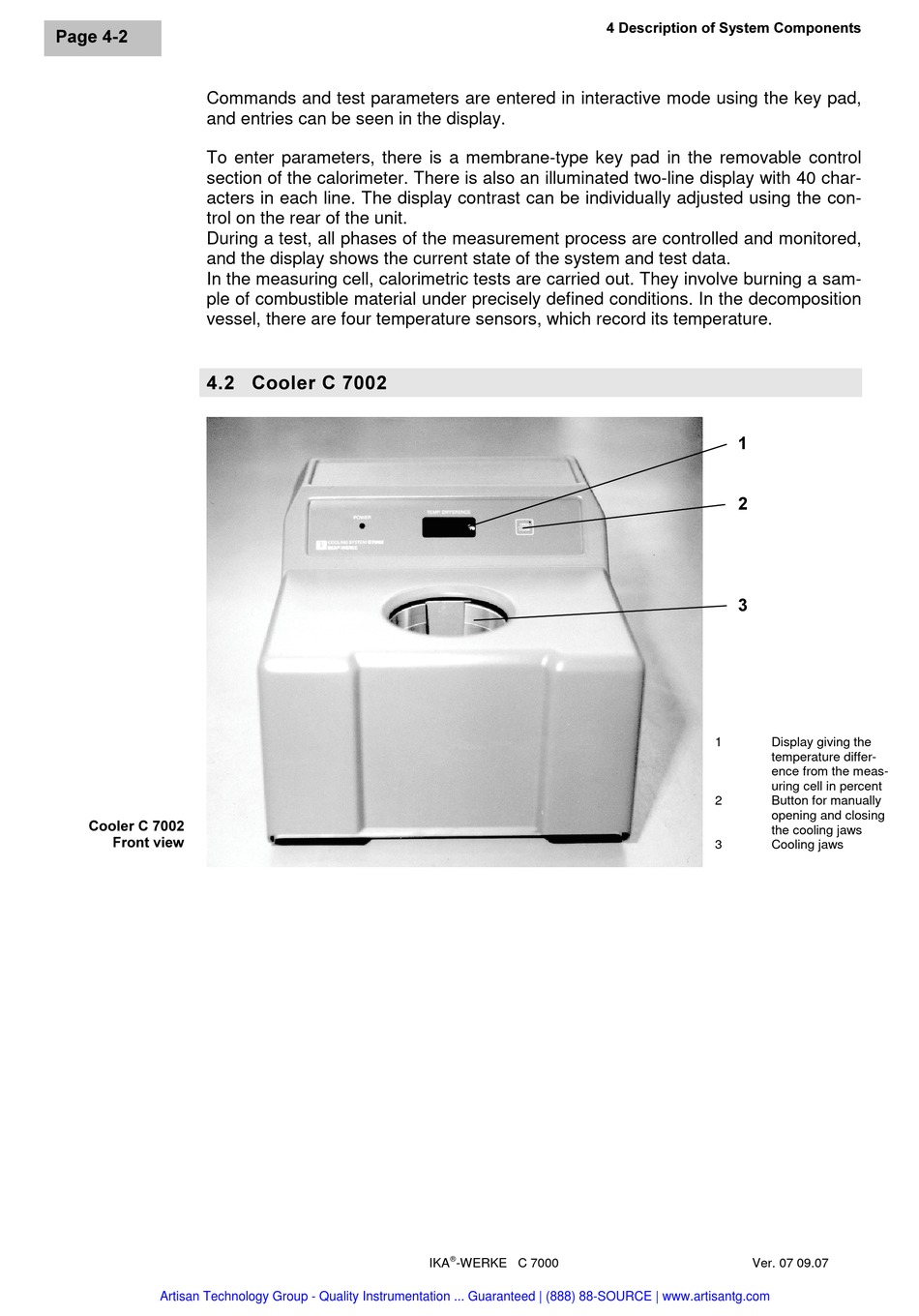

 &RROHU &
&RROHU &
)URQW YLHZ
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
®
IKA -WERKE C 7000
 'HVFULSWLRQ RI 6\VWHP &RPSRQHQWV



1 Display giving the
temperature differ-
ence from the meas-
uring cell in percent
2 Button for manually
opening and closing
the cooling jaws
3 Cooling jaws
Ver. 07 09.07
