Tsunami MP-8100 Series
Installation and Management Guide

Advertisement

Table of Contents
loading

Related Manuals for Proxim Tsunami MP-8100 Series

Summary of Contents for Proxim Tsunami MP-8100 Series

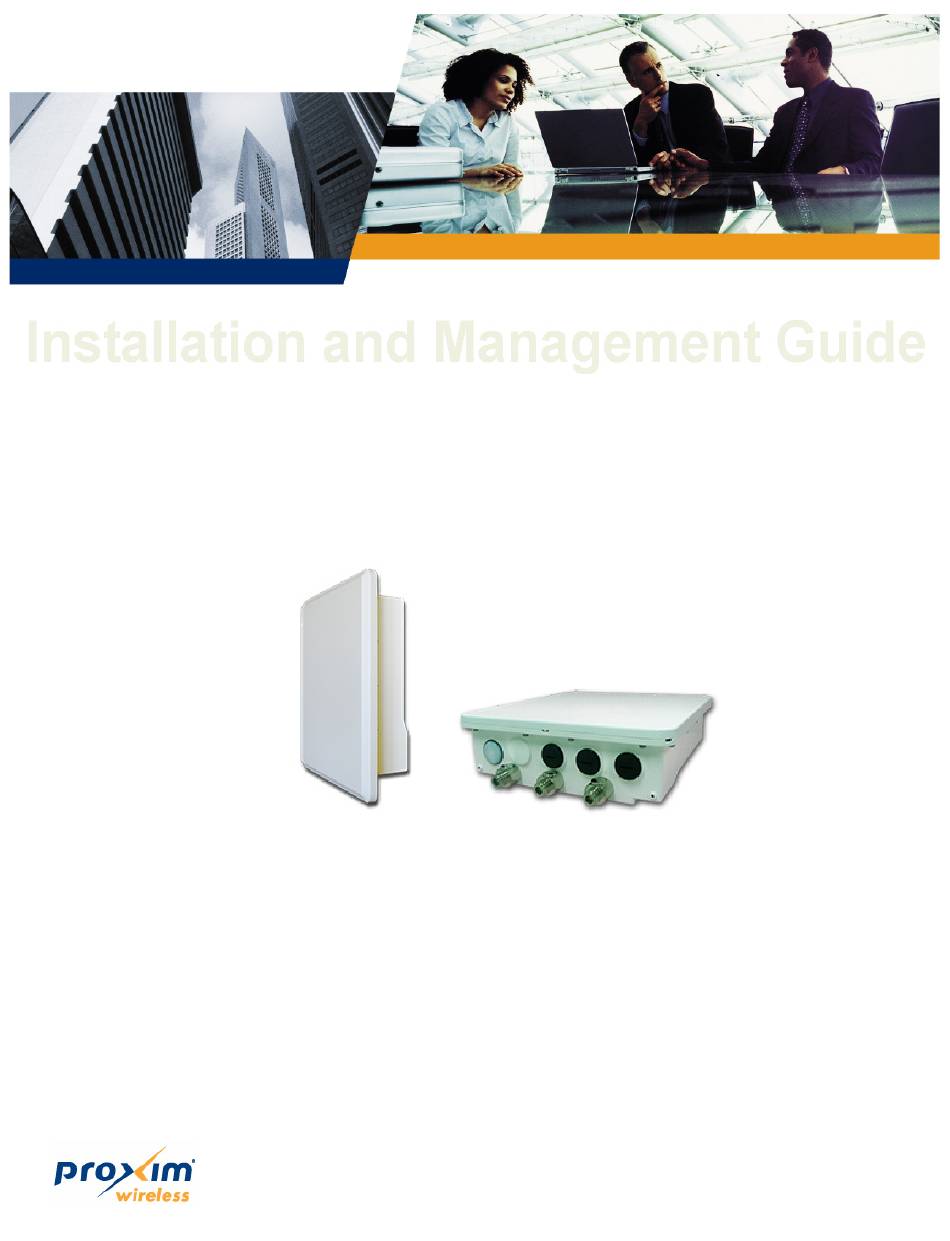

  • Page 1 Tsunami MP-8100 Series Installation and Management Guide...
  • Page 2 GNU Lesser General Public License ("LGPL"). Please see the GPL and LGPL Web sites to view the terms of each license. To access the GPL Code and LGPL Code used in Tsunami MP-8100, visit the proxim website to get a copy of the source. The GPL Code and LGPL Code used in this device are distributed WITHOUT ANY WARRANTY and are subject to the copyrights of one or more authors.

  • Page 3: Table Of Contents

    Contents Preface ..............6 Overview .
  • Page 4 System ................128 File Management .
  • Page 5 Statement of Warranty ............204 Technical Services and Support .

  • Page 6: Preface

    Wireless Outdoor Tsunami Subscriber Unit with Integrated Antenna operating in 5 GHz Band. Organization of this Manual This manual documents installing and managing of Tsunami MP series. Before installing and using the unit, Proxim recommends you to read the following chapters of this manual: •...
  • Page 7 Preface • Chapter 7 Procedures: Provides details about the various procedures involved in the operation of the MP-8100 units using the Web interface. • Chapter 8 Troubleshooting: Provides instructions and solutions to solve the issues you may encounter while installing and using the MP-8100 units. The appendixes contain supplementary information, including frequency domain tables, channel frequency, and Technical Support information.

  • Page 8: Overview

    Overview This chapter provides a description of the Tsunami MP-8100 system, its functionalities, and features. It covers the following topics: • Introduction • Wireless Network Topology (Point-to-Multipoint Link) • Multiple-Input-Multiple-Output (MIMO) • Management and Monitoring Capabilities Tsunami MP-8100 Installation and Management Guide...

  • Page 9: Introduction

    Overview 1.1 Introduction The Tsunami MP-8100 is a wireless point-to-multipoint networking solution for any enterprise or small business markets. Tsunami MP-8100 Base station and Subscriber units are flexible wireless outdoor products that lets you design solutions for point-to-point links and point-to-multipoint networks. The MP-8100 kit contains everything you need to establish a point-to-multipoint connection.

  • Page 10: Multiple-Input-Multiple-Output (Mimo)

    Overview Figure 1-1 Wireless Network Topology (Point-to-Multipoint-Link) A maximum of 250 SUs can be connected to a single BSU. Here, the BSU is equipped with either an omni-directional or a wide angle antenna, whereas the SUs are equipped with a directional antenna. 1.3 Multiple-Input-Multiple-Output (MIMO) Multiple-Input-Multiple-Output (MIMO) is a smart antenna technology that offers tremendous performance gains for wireless devices at relatively low cost.

  • Page 11: Management And Monitoring Capabilities

    Overview Figure 1-2 3x3 MIMO The simplest spatially multiplexed MIMO system contains two transmit chains, two receive chains, and two data streams. When expanding such 2x2 architecture, several factors need to be considered. For example, at the device operating frequency of 2.4 GHz, the wavelength is 12 cm, the dimension of MP-8100 is ~35cm, hence a 2x2-receive-chain system has sufficient antenna diversity to receive two uncorrelated signals.
  • Page 12 7. RFC-3414.mib (SNMP-USER-BASED-SM-MIB) Download these MIB files from the Proxim website. You must compile one or more of these MIB files into your SNMP program’s database before you manage your device using SNMP. See the documentation that came with your SNMP manager for instructions about how to compile MIBs.
  • Page 13 For all other modes of connection, you will need the IP address of the device to use the Web Interface, SNMP, or the CLI via telnet. CAUTION! For Regulatory Information and latest product updates, including firmware and the MIBs, Proxim recommends visiting the Proxim Support site at http://support.proxim.com. IMPORTANT! This user guide discusses installing the device and managing it using the Web interface only.

  • Page 14: Installation And Initialization

    Installation and Initialization This chapter describes the steps required to install and mount the MP-8100 Series units, and to align the antenna. If you are already familiar with this type of product, refer to the Tsunami MP-8100 Quick Installation Guide for streamlined installation procedures.

  • Page 15: Hardware Overview

    Ethernet port. The unit also has built-in surge protection on its Ethernet port and on N-Type Connectors. The Tsunami MP-8100 series has three major product variants based on the antenna configuration. MP-8100-BSU is a connectorized version of the Wireless Outdoor Tsunami Base Station Unit containing 3 N-Type connectors for using external antennas.
  • Page 16 Installation and Initialization Recommended Cable Function Power (DC) and Ethernet connection Type Cat5e/Cat6, UV-shielded and outdoor-rated Impedance 100 ohms Recommended cables STP, 24 AWG, UL rated Maximum Distance 330 feet / 100 meters Connector type, device end Shielded RJ45 female, weatherized using weatherproof connector Connector type, power &...

  • Page 17: Product Package

    Installation and Initialization 2.1.3 Antenna Connection The Tsunami MP-8100 series feature three major product variants based on the antenna configuration. • MP-8100-BSU: A full-featured Wireless Outdoor Tsunami Base Station Unit containing 3 N-Type connectors for use with external antennas. •...
  • Page 18 Installation and Initialization What’s in the Kit Image Mounting Kit and Hardware The mounting kit includes the following: • Mounting clamp for wall/pole • Extension arm • Mounting plate to enclosure • Mounting clamp for pole mounting The following table lists and describes some of the items included with the mounting kit: Quantity Description 6 ea.

  • Page 19: Installation Procedure

    Proxim Support site at http://support.proxim.com. WARNING! When connecting a device to the second Ethernet port (Eth2), Proxim recommends to verify if it is a 802.3af compatible device. If you are planning to use any other device, please insert a power splitter (not supplied) between the second Ethernet port and the device, otherwise it may damage the device.
  • Page 20 To make optimal use of the device, you must find a suitable location to install the hardware. The range of the radio device largely depends upon the position of the antenna. Proxim recommends you do a site survey, observing the following requirements, before mounting the hardware.
  • Page 21 2. Note the Ethernet and MAC addresses of the unit as well as the serial number. These addresses may be used when configuring the unit. NOTE: The serial number is required to obtain support from Proxim. Keep this information in a safe place. Step 5: Assemble the Cable You will be attaching an outdoor-rated 24 AWG Cat5e/Cat6 cable to the Power-over-Ethernet port on the lower side of the unit.
  • Page 22 Installation and Initialization Step 6: Assemble Mounting Hardware 1. Attach the mounting plate (A) using the provided screws and washers (Torque 9 N . m/75 in-lbs), such that the unit’s antenna will be vertically or horizontally polarized when mounted. 2. Attach the extension arm (B) to the mounting piece (A) with the screw, nut, and washers provided, as shown below. The extension arm gives the device more tilt, letting you adjust for azimuth or elevation over a larger angle.
  • Page 23 Installation and Initialization 4. Tighten all the screws (Torque 15 N . m/130 in-lbs). Torque 15 N . m/130 in-lbs The following figure shows the full assembly attached to the unit. Step 7: Mount the Unit 1. To pole-mount, insert screws through bracket (F) and fasten around the pole to bracket (C) and secure them (Torque 11 N .
  • Page 24 Installation and Initialization Step 8: Plug in the Cables NOTE: Unscrew the sealing cap for installation of the cable. 1. Plug one end of the Cat5e/Cat6 cable (Eth1) into the Ethernet (RJ45) jack of the Eth1 interface inside the enclosure. Plugging in the second Cat5e/Cat6 cable to Eth2 interface is optional.
  • Page 25 Units with integrated antennas must always be mounted in Square position to achieve Horizontal and Vertical polarization. Step 10: Install Surge Protector Proxim recommends two approved lightning surge protectors to be installed, one near to the device (supplied with the product package) and the other near to the building ingress point.
  • Page 26 Installation and Initialization Step 12: Power on the Unit Plug in the power cord into a power outlet after having connected the Power Injector and the Radio device using Cat5e/Cat6 cable. There is no ON/OFF switch on the unit. To disconnect power, unplug the RJ45 connector from the “PWR LAN-OUT” port on the power injector.
  • Page 27 Installation and Initialization LED State Eth1 Wireless LED Power/Ethernet LED Green Power is on and the Ethernet link Eth2 is up NOTE: All the four LEDs will blink during initialization. Step 14: Align the Antenna Antenna alignment is the process of physically aligning the antenna of the radio receiver and transmitter to have the best possible link established between them.
  • Page 28 Installation and Initialization • The range of the average SNR has been limited to values from 5 to 43; therefore, anything over 43 always results in a short period between beeps and values below 5 always have a long period. •...

  • Page 29: Initialization

    Installation and Initialization 2.4 Initialization Connecting to the device requires either: • A direct connection with a serial RS-232 cable. • A direct connection with an Ethernet cable or a network connection. Connecting with the Ethernet cable allows you to use of the Web Interface and SNMP in addition to the CLI. Connecting with a serial connection allows you to configure and manage the device with the CLI.
  • Page 30 Installation and Initialization Figure 2-3 Scan List NOTE: If your computer has more than one network adapter installed, it prompts you to select the adapter for the ScanTool before the Scan List appears. You can select either an Ethernet or wireless adaptor. If prompted, select an adapter and click OK.

  • Page 31: Logging In To The Web Interface

    Installation and Initialization Figure 2-4 Modifying the IP Address 2.4.3.1 Assigning the IP Address Manually 1. Select the IP Address Type as Static and then enter the appropriate IP Address, Subnet Mask, and the Gateway IP Address parameters. 2. Enter the SNMP Read/Write password in the Read/Write Password field. By default, it is public. 3.
  • Page 32 Installation and Initialization NOTES: • Depending on the settings made during the device initialization, the IP address may be either a dynamic IP address ScanTool assigned by a network DHCP server or a static IP address which is manually configured. Refer to information on how to determine the device’s IP address and manually configure a new IP address.
  • Page 33 Installation and Initialization 2.5.2 COMMIT Button Commit button is used to apply the configuration changes into the unit. When changes are made to the configuration parameters of the device, until the COMMIT button is clicked, the changes will not take effect. Some parameters may require system reboot for the changes to take effect.
  • Page 34 Installation and Initialization NOTES: • It is always mandatory to commit the changes before REBOOT, otherwise the changes will not take effect. • The System Summary can be viewed by clicking HOME. • The Event Log can be cleared by clicking Clear Event Log and can be refreshed by clicking Refresh. An error message appears when a parameter is configured with inappropriate value.

  • Page 35: Factory Default Configuration

    Installation and Initialization 2.6 Factory Default Configuration Parameter Default Network Mode Bridge Routing Disabled WORP Network Name My_Network Maximum Number of SUs (per As per license BSU) Password public IP Address Assignment Type Static IP Address 169.254.128.132 Subnet Mask 255.255.255.0 Registration Timeout Network Secret Public...

  • Page 36: Basic Configuration

    Basic Configuration This chapter provides an overview of the basic configuration settings of Tsunami MP-8100. It covers the following topics: • Country and Related Settings • Dynamic Frequency Selection (DFS) • Transmit Power Control • Setting Up a Link Between BSU and SU •...

  • Page 37: Country And Related Settings

    Basic Configuration 3.1 Country and Related Settings The unit’s Advanced Configuration window provides a frequency domain field that automatically provides the allowed bandwidth and frequencies for the selected country. Units sold in the United States are pre-configured to scan and display only the outdoor frequencies permitted by the FCC. No other country can be configured.

  • Page 38: Transmit Power Control

    Basic Configuration The Startup time is within four minutes if no radar is detected, but up to one minute is added for every selected channel that results in radar interference. Frequency Domains and Channels. For detailed information on DFS, refer to 3.3 Transmit Power Control Transmit Power Control is a manual configuration selection to reduce the unit’s output power.

  • Page 39: Quality Of Service (Qos)

    Basic Configuration on the logical LAN or WAN segment. They simplify allowing traffic to flow between hosts and their frequently- used or restricted resources according to the VLAN configuration. MP-8100 devices are fully VLAN-ready; however, by default, VLAN support is disabled. Before enabling VLAN support, certain network settings should be configured and network resources such as VLAN-aware switches should be available, based on the type of configuration.

  • Page 40: Basic Configuration Information

    Basic Configuration 3.7 Basic Configuration Information The BASIC CONFIGURATION Page in the Web-based Configuration Interface provides a one-place access to a minimum set of configuration parameters to quickly set up a point-to-multipoint network. Figure 3-1: Basic Configuration See the following table for Basic Configuration parameters and their descriptions: Parameter Description System Name...
  • Page 41 Basic Configuration Parameter Description Frequency Domain It specifies the country of operation, permitted frequency bands and regulatory rules for that country/domain. Upon choosing a frequency domain, the Dynamic Frequency Selection (DFS) and Automatic Transmit Power Control (ATPC) features are enabled automatically if the selected country and band has a regulatory domain that requires it.
  • Page 42 Basic Configuration Parameter Description Active Channel This will display the current active channel on which wireless interface is operating. If you have enabled the auto channel selection option or if the device moves to a different channel because of radar detection, then this field displays the current operating channel.
  • Page 43 Basic Configuration Parameter Description Gateway IP Address The IP address of the default gateway. This parameter is configurable only if the IP Address Assignment Type is set to Static. The default gateway IP Address is 169.254.128.132. Tsunami MP-8100 Installation and Management Guide...
  • Page 44 Advanced Configuration This chapter provides details about the Tsunami MP-8100 parameters and describes the procedures to configure them using Web-based management interface. These parameters can also be configured using the other management interfaces like SNMP and CLI. The following topics are covered in this chapter: •...

  • Page 45: System Configuration

    Advanced Configuration 4.1 System Configuration The System screen allows you to configure the MP-8100 device as a BSU or a SU, the frequency domain, and the network mode as Bridge or Routing. To configure the System 1. Click ADVANCED CONFIGURATION > System. The System screen is displayed as show below. Figure 4-1 System screen 2.

  • Page 46: Network Configuration

    Advanced Configuration NOTE: Click COMMIT and REBOOT after changing any system parameter. 4.2 Network Configuration Based on the selected mode of operation, the IP settings vary. When the device is in Bridge mode, only a single IP address is required; but for Routing mode, individual IP address are needed for each of the Ethernet and Wireless interfaces. In Bridge mode, the IP address can be statically assigned or dynamically obtained through DHCP;...
  • Page 47 Advanced Configuration Parameter Description Ethernet Address Type This field is applicable only if the Network mode on the System screen is configured in Bridge mode. This parameter specifies whether the device network parameters are to be configured through DHCP or to be assigned statically. Select Dynamic to configure the device as a Dynamic Host Configuration Protocol (DHCP) client.

  • Page 48: Ethernet Properties Configuration

    Advanced Configuration 4.3 Ethernet Properties Configuration In the Ethernet Interface Properties screen, you can configure the Ethernet transmission properties. The recommended settings are Auto for TxMode And Speed. The device supports two ethernet interfaces Ethernet 1 and Ethernet 2. To configure the Ethernet Interface 1.

  • Page 49: Wireless Configuration

    Advanced Configuration Parameter Description TxMode And Speed This parameter allows the user to select the speed and mode based on the requirement for the corresponding interface. NOTE: • Auto: Selects the best transmission mode available when both sides are set to Auto. •...
  • Page 50 Advanced Configuration Figure 4-5 Wireless Interface WORP 2. Enter the appropriate parameters in the WORP Configuration screen. See the following table for the descriptions of the parameters. 3. Click OK. Tsunami MP-8100 Installation and Management Guide...
  • Page 51 Advanced Configuration Parameter Description BSU Name Specifies the System Name given to the BSU (Refer Basic Configuration Information). If the BSU Name is specified, it forces the SU to register to the BSU with the given Network Name and BSU Name. If the BSU Name is left blank, it allows the SU to register to any BSU with the given Network Name.
  • Page 52 Advanced Configuration Parameter Description Registration Procedure Time-out specifies maximum duration registration process to complete once the SU starts registering with the BSU. Default time is 10 seconds. Retries This parameter specifies the maximum number of times a data message is retransmitted, over the wireless medium, if acknowledgement is not received.
  • Page 53 Advanced Configuration Parameter Description Radius MAC ACL Status This parameter is used to enable authentication using RADIUS server. When enabled, the BSU contacts the RADIUS server for authenticating the SU during the registration process. This option is available only in BSU mode. NOTE: •...
  • Page 54 Advanced Configuration Figure 4-6 Wireless interface properties 2. Enter the appropriate parameters. See the following table that lists the parameters and their descriptions. 3. Click OK. NOTE: If World/Russia frequency domain is selected, establishing WORP link might take longer time because the BSU has to scan relatively more number of channels.
  • Page 55 Advanced Configuration NOTE: When you modify wireless parameters and click COMMIT, it may result in brief interruption of service. Parameter Descriptions Channel Bandwidth This parameter specifies the channel bandwidth. By default, it is set to 20 MHz. 40 MHz can be selected for higher throughput. Auto Channel Selection (ACS) Enable or disable the Auto Channel Selection for wireless interface.
  • Page 56 Advanced Configuration Parameter Descriptions Satellite Density Satellite Density setting helps achieve maximum bandwidth in a wireless network. It influences the receive sensitivity of the radio interface and improves operation in environments with high noise level. Reducing the sensitivity of the device enables unwanted “noise” to be filtered out (it disappears under the threshold).
  • Page 57 Advanced Configuration Parameter Descriptions With Transmit Power Control (TPC), you can adjust the output power of the device to a lower level. This is performed to reduce interference with the neighboring devices. It can be helpful when higher gain antenna is used without violating the maximum radiated output power for a country or regulatory domain.
  • Page 58 Advanced Configuration NOTE: Click COMMIT for the changes to take effect. Parameter Description Channel Number The channel number indicates the channel that is blacklisted. Reason The reason for which that particular channel is blacklisted. The most common reason for blacklisting a channel is the presence of a radar in that channel.
  • Page 59 Advanced Configuration Figure 4-7 MIMO Properties 2. Enter the appropriate parameters on the MIMO Properties screen. See the following table that lists the parameters and their descriptions. 3. Click OK. NOTE: When you modify MIMO parameters and click COMMIT, it may result in brief interruption of service. Parameter Description Frequency Extension...
  • Page 60 Advanced Configuration Parameter Description Guard Interval Possible values for Guard interval are 800 nSec and 400 nSec. 400 nSec is valid only for 40 MHz channel bandwidth. Data Streams MIMO radio uses multiple antennas for transmitting and receiving the data. These data streams specify the number of data streams over the air transmitted or received in parallel.

  • Page 61: Security Configuration

    Advanced Configuration 4.5 Security Configuration 4.5.1 Setting Up Wireless Security In Wireless Security page, you can configure security mechanisms used to secure the communication link between the BSU and SU. By default, a security profile (WORP Security) is preconfigured with the default configuration for WORP security. However, more profiles can be created as required.
  • Page 62 Advanced Configuration Field Description Profile Name Specifies the security profile name. Entry status Used to enable or disable the security profile. Edit Click Edit to modify the Profile parameters. NOTE: • By default, WORP Security is added to the wireless security configuration. •...
  • Page 63 Advanced Configuration 3. Enter the appropriate parameters in the Wireless Security Add Row screen. See the following table for information on the parameters and their descriptions. 4. Click Add. Tsunami MP-8100 Installation and Management Guide...
  • Page 64 Advanced Configuration Field Description Profile Name Enter the security profile name. Encryption Type Select an option from None, WEP, TKIP or AES-CCM for the Encryption Type. 1. None - If this option is selected, no encryption will be applied to the wireless link frames. 2.
  • Page 65 Advanced Configuration Sample Security Profile Configuration Profile Name WORP Security WORP Security Encryption Type AES-CCM AES-CCM Key 1 1234567890abcdef 1234567890abcdef Key 2 1asdf67890abcdef 1asdf67890abcdef Key 3 abcde7890abcdefg abcde7890abcdefg Key 4 pjhohm7890abcdef pjhohm7890abcdef Transmit Key Network Secret public public Entry status Enable Enable NOTE:...
  • Page 66 Advanced Configuration To configure the Radius Server profile 1. Click ADVANCED CONFIGURATION > Security > RADIUS. The Radius Server Profile screen is displayed as shown below. Figure 4-10 RADIUS Server Profile 2. Enter the appropriate parameters on the Radius Server Profile screen. See the following table that lists the parameters and their descriptions.
  • Page 67 Advanced Configuration Parameter Description Shared Secret Specifies the password shared by the RADIUS server and the MP-8100 device. The default password is public. Entry Status Select Enable/Disable to enable or disable the RADIUS server status. Following constraints apply for Radius Profile configuration: 1.

  • Page 68: Quality Of Service (Qos) Configuration

    Advanced Configuration NOTE: Based on the Operation Type, the user can allow or deny the association of the MAC ACL profile to a SU . 3. Click OK. To add entries to MAC Access Control table 1. Click Add in the MAC Access Control screen. The MAC ACL Add Row page appears. 2.
  • Page 69 Advanced Configuration • Up to 4 pairs of Destination IP address + Mask • Up to 4 source MAC addresses + Mask • Up to 4 destination MAC addresses + Mask NOTE: IP Address, TCP/UDP Port, MAC Address need to be configured separately and associate those classification in PIR details if required.
  • Page 70 Advanced Configuration a. Ethernet Priority (low=0, high=0) (this is the equivalent of the User Priority value in the TCI (Tag Control Information) field of a VLAN tag) 17. 802.1p Voice a. Ethernet Priority (ToS low=6, ToS high=6) (this is the equivalent of the User Priority value in the TCI (Tag Control Information) field of a VLAN tag) 18.
  • Page 71 Advanced Configuration a. Scheduling Type = Best Effort b. Service Flow Direction = Uplink c. Entry Status = Enable d. Maximum Sustained Data Rate = 102400 Mbps e. Traffic Priority = 0 2. DL-Unlimited BE (same as UL-Unlimited BE, except Service Flow Direction = Downlink) 3.
  • Page 72 Advanced Configuration • Priority per rule which defines the order of execution of PIRs during packet identification process. The PIR priority is a number in the range 0-63, with priority 63 being executed first, and priority 0 being executed last. The PIR priority is defined within a QoS class and can be different for the same PIR in some other QoS class.
  • Page 73 Advanced Configuration QoS PIR MAC Address Configuration 1. Click ADVANCED CONFIGURATION > QoS > PIR List > MAC Address Entries. 2. Three predefined MAC Address entries are displayed in this page. You can configure maximum 256 entries. MAC Address and Mask combination should be unique. This MAC Address entry can be referred in the PIR Rule’s Source or Destination MAC Address Classification.
  • Page 74 Advanced Configuration QoS PIR IP Address Configuration 1. Click ADVANCED CONFIGURATION > QoS > PIR List > IP Address Entries. A single predefined IP Address entry is displayed. You can configure maximum 256 entries. IP Address, Subnet Mask combination should be unique. This IP Address entry can be referred in the PIR Rule’s Source or Destination IP Address Classification.
  • Page 75 Advanced Configuration QoS PIR TCP/UDP Port Configuration 1. Click ADVANCED CONFIGURATION > QoS > PIR List > TCP/UDP Port Entries. Three predefined TCP/UDP Port Entries are displayed. You can configure maximum 256 entries. Start Port, End Port combination should be unique. This TCP/UDP Port entry can be referred in the PIR Rule’s Source or Destination TCP/UDP Port Classification.
  • Page 76 Advanced Configuration 4.6.2.1 QoS PIR Configuration 1. Click ADVANCED CONFIGURATION > QoS > PIR List. 18 predefined PIR Rules are displayed in this page. You can configure maximum 64 entries. PIR Rule Name should be unique. This PIR Rule can be referred in the QoS Class’s Service Flow Details.
  • Page 77 Advanced Configuration Figure 4-19 QoS PIR Add Entry b. Provide the PIR Name, Entry Status details and click Add. PIR Rule Clarification Details 1. Click ADVANCED CONFIGURATION > QoS > PIR List and click Details for editing a Particular PIR Rule. Tsunami MP-8100 Installation and Management Guide...
  • Page 78 Advanced Configuration Figure 4-20 QoS PIR Edit Entry Tsunami MP-8100 Installation and Management Guide...
  • Page 79 Advanced Configuration Parameter Description Rule Name This parameter specifies the Name of the Packet Identification Rule (PIR) and can have a length of 1-32 characters. ToS Rule This parameter is used to enable/disable TOS rule. Enter the values for the following to specify the ToS-related configuration: ToS Low ToS High ToS Mask...
  • Page 80 Advanced Configuration Parameter Description Ether Type Rule This parameters is used to enable/disable Ether Type rule. Enter the values for the following to specify the Ether Type rule related configuration: Ether Type PPPoE Protocol Id Ether Value NOTE: • PPPoE Protocol Id is not valid if PPPoE Encapsulation is disabled.
  • Page 81 Advanced Configuration Adding Protocol ID a. Click Add to add a new Protocol entry. The following screen appears. Figure 4-21 QoS PIR Protocol ID b. Enter the details and click Add. For deleting an entry, click Delete for the corresponding entry in PIR Details page.
  • Page 82 Advanced Configuration Figure 4-23 QoS PIR TCP/UDP Destination Port Add Entry b. All the entries present in the PIR TCP/UDP Port Entries are displayed in the TCP/UDP Port Entry Table. Select the appropriate radio button and click Add. After adding the entry for this specific PIR, it is displayed in the Existing TCP/UDP Port Entries table.
  • Page 83 Advanced Configuration b. All the entries present in the PIR IP Address Entries are displayed in the IP Address Entry Table. Select the appropriate radio button and click Add. After adding the entry for this specific PIR, it is displayed in the Existing IP Address Entries table.
  • Page 84 Advanced Configuration Figure 4-26 QoS PIR Source MAC address Add Entry b. All the entries present in the PIR MAC Address Entries are displayed in the MAC Address Entry Table. Select the appropriate radio button and click Add. After adding the entry for this specific PIR, it is displayed in the Existing MAC Address Entries table.
  • Page 85 Advanced Configuration b. All the entries present in the PIR MAC Address Entries are displayed in the MAC Address Entry Table. Select the appropriate radio button and click Add. After adding the entry for this specific PIR, it is displayed in the Existing MAC Address Entries table.
  • Page 86 Advanced Configuration Adding a New Service Flow (SFC): a. Click Add to add new entry. The following screen appears for configuring the New PIR Entry. Figure 4-29 QoS Service Flow Add Entry 2. Specify details for the Service Flow Name, Scheduler Type, Traffic Direction, MIR, CIR, Max Latency, Tolerable Jitter, Traffic Priority, Max Messages in Burst and Entry Status.
  • Page 87 Advanced Configuration Parameter Description Max Messages in Burst Specifies the maximum number of messages that can be sent in a burst. This value ranges from 1 to 16. NOTE: Reducing the number of messages impacts the throughput. Entry Status Specifies the Service Flow status. 4.6.2.3 QoS Class Configuration 1.
  • Page 88 Advanced Configuration Parameter Description L2 Broadcast QoS Class This parameter specifies WORP to use this particular class for worp broadcast facility. L2 Broadcast QoS Class is valid only for Downlink Direction. QoS Class assigned to this profile should have at least one Downlink SFC. 4.
  • Page 89 Advanced Configuration Parameter Description Priority Specifies priority or order of execution of PIRs during packet identification process. The PIR priority is a number that can range from 0-63, with priority 63 being executed first, and priority 0 being executed last. The PIR priority is defined within a QoS class, and can be different for the same PIR in some other QoS class.
  • Page 90 Advanced Configuration Figure 4-33 QoS Class Service Flow Add Entry 3. Specify the Service Flow Name, PIR Rule Name, Priority and Entry Status and click Add to add a new entry. Adding PIR in QoS Class 1. Click on the corresponding Details provided in the Service Flow of a particular QoS Class. Maximum 8 PIR rules can be associated per SFC of an QoS Class.
  • Page 91 Advanced Configuration Figure 4-34 QoS Class PIR Details 2. Click Add. The following screen appears for association of the new PIR rule in an SFC already associated in an QoS Class. Figure 4-35 QoS Class PIR Add Entry 3. Specify the PIR Rule Name, Priority and Entry Status and click Add to add a new entry. Tsunami MP-8100 Installation and Management Guide...
  • Page 92 Advanced Configuration 4.6.2.4 QoS SU List Configuration 1. Click ADVANCED CONFIGURATION > QoS > SU List. By default, the table does not have any entry. User can configure the Wireless MAC Address of the SU here and associate the QoS Class need to be used for that particular Figure 4-36 QoS SU List Entries 2.
  • Page 93 Advanced Configuration If QoS is not configured properly, the system can become difficult to access in heavily loaded networks. One of the side effects of this misconfiguration is ping time-out, which is usually interpreted as a disconnection of the pinged node. However, with the correct QoS configuration, every node in the network can be reached at any moment.
  • Page 94 Advanced Configuration c. Click Add that corresponds to Source IP Address Entries. This displays a screen for referring the Management Station’s IP Address. New Entry Table displays all the IP Address Entries of the PIR List. Select the option button corresponding to the Management Station and then click Add.
  • Page 95 Advanced Configuration • Max Messages in Burst: 16 • Entry Status: Enable d. Click Add. The UL-Management SF is added to the QoS SFC List. NOTE: The input and output bandwidth limits set on the BSU or on the SU are used for limiting aggregate bandwidth used by the SU.

  • Page 96: Vlan Configuration (Bridge Mode Only)

    The device’s Web interface • The Command Line Interface (see “Command Line Interface” section in the Reference Manual) • SNMP (Log on to Proxim support site http://support.proxim.com for MIBs) NOTE: The VLAN parametres can be configured on selected Interface (Ethernet 1/Ethernet 2).
  • Page 97 Advanced Configuration To configure VLAN • Click ADVANCED CONFIGURATION > VLAN. Figure 4-38 Configuring VLAN VLAN parameters can be classified into two types: System-related VLAN parameters and Interface-related VLAN parameters. 1. System-related parameters: These parameters are applicable to the whole device. The following parameters are the System-related VLAN parameters.
  • Page 98 Advanced Configuration 4.7.2 VLAN Modes 4.7.2.1 Transparent Mode Transparent Mode is available for the Ethernet and Wireless interfaces for both BSU and SU. It is equivalent to NO VLAN support and is the default mode. It is used to connect VLAN aware/unaware networks. An interface in transparent mode forwards both tagged and untagged frames.
  • Page 99 Advanced Configuration Figure 4-40 VLAN operation in Trunk Mode To enable Trunk mode, click ADVANCED CONFIGURATION > VLAN > Ethernet and enter the settings as described in the following table: Parameter Description Interface Displays the name of the interface. VLAN Mode Select the VLAN Mode as Trunk.
  • Page 100 Advanced Configuration Figure 4-41 VLAN Trunk Table Add Row 2. Enter the parameters as described in the following table. 3. Click Add. Field Description Trunk Id Enter the value of the trunk VLAN Id. Entry Status Enable or disable the status of the trunk table entry.

  • Page 101: Filtering Configuration (Bridge Only)

    Advanced Configuration Figure 4-42 VLAN Ethernet Configuration 2. Enter the parameters as described in the following table. Parameter Description Interface Displays the name of the interface. VLAN Mode Select the VLAN mode as Access. Access VLAN Id The Access VLAN Id values range from 1 to 4094.
  • Page 102 Advanced Configuration • Click COMMIT for the changes to take effect in the device. To configure the filtering mechanism 1. Click ADVANCED CONFIGURATION > Filtering. The Filtering screen appears. Figure 4-43 Filtering 2. Enter the appropriate parameters in the Filtering screen. See the following table that lists all the parameters and their descriptions.
  • Page 103 Advanced Configuration 1. Click ADVANCED CONFIGURATION > Filtering > Ethernet Protocol Filtering. The Protocol Filter screen is displayed as shown below. Figure 4-44 Protocol Filter Tsunami MP-8100 Installation and Management Guide...
  • Page 104 Advanced Configuration 2. Enter the appropriate parameters in the Protocol Filter screen. See the following table that lists the parameters and their descriptions. Parameter Description Filtering Control This parameter is used to configure the interface on which filtering has to be applied. By default, it is disabled. It can be configured as: •...
  • Page 105 Advanced Configuration b. Enter the details as described in the preceding table and click Add. Figure 4-45 Protocol Filter Add Row NOTE: • By default, the system generates 19 entries. You can Enable or Disable the default entries, but the Delete option is not applicable for all the default 19 entries.
  • Page 106 Advanced Configuration • To prevent all traffic from a specific wireless MAC address from being forwarded to the wired network, configure only the Wireless MAC and Wireless mask (leave the Wired MAC address and Wired mask set to all zeros). •...
  • Page 107 Advanced Configuration • Wired Mask: 00:00:00:00:00:00 • Wireless MAC Address: 00:20:A6:12:4E:38 • Wireless Mask: FF:FF:FF:FF:FF:FF Result: The unit blocks all traffic between Wireless Client 3 and the Ethernet network. 4.8.2.5 Static MAC Address Filter Configuration To configuring Static MAC Filter 1.
  • Page 108 Advanced Configuration 3. Enter the parameters listed in the following table. Parameter Description Wired MAC Address Specifies the MAC address of the device on the wired network that is restricted from communicating with a device in the wireless network. Wired MAC Mask Specifies the range of MAC address to which this filter is to be applied.
  • Page 109 Advanced Configuration Figure 4-48 Advanced Filtering 2. The following table describes the parameters present in the Advanced Filtering table. Parameter Description Name This parameter specifies the protocol name. The following filters are supported in Advanced Filtering: • Deny IPX RIP •...
  • Page 110 Advanced Configuration Figure 4-49 Advance Filtering- Edit Entries 1. After making the desired modifications, click OK to update the table. 2. Click Back to navigate to the previous page. Click Cancel to retain the previous entries. NOTE: Click COMMIT for the changes to take effect in the device. 4.8.4 TCP/UDP Port Filter Port-based filtering controls the user access to network services by selectively blocking TCP/UDP protocols through the device.
  • Page 111 Advanced Configuration Figure 4-50 TCP/UDP Port Filter 2. Enter the appropriate parameters. See the following table that lists the parameters and their descriptions. Parameter Description Filter Control This parameter is used to enable the TCP/UDP filter. By default, Disable is selected. Protocol Name This parameter specifies the TCP/UDP protocol filter name.
  • Page 112 Advanced Configuration 4.8.4.1 Adding TCP/UDP Port Table Entries To add TCP/UDP Port Table entries 1. Click Add to create a new TCPUDP port filter. The TCPUDP Port Filter Add Row page is displayed as shown below. Figure 4-51 TCPUDP Port Filter Add Row 2.
  • Page 113 Advanced Configuration Example of Intra-Cell Blocking Groups Assume that four Intra-Cell Blocking Groups have been configured on one BSU. SUs 1 through 9 are registered to the BSU. Group1 Group2 Group3 Group4 In this example, SU 1 belongs to two groups, Group 1 and Group 3. Therefore, packets from SU 1 destined to SU 4, SU 5, SU 6, and SU 3 are not blocked.
  • Page 114 Advanced Configuration NOTE: Intra-Cell Blocking is configurable only in Bridge mode. When you change the device from Bridge to Routing mode, Intra-Cell Blocking stops working only after a Reboot. When you change the device from Routing to Bridge mode, Intra-Cell Blocking starts working only after a Reboot. WORP Intra Cell Blocking Group Table Intra Cell Group blocking table is maintained to block the connection between the SUs belonging to different groups.
  • Page 115 Advanced Configuration Figure 4-53: WORP Intra Cell Blocking Table Group Name: This parameter specifies the name of the network group. Entry Status: This parameter is used to configure the status of a specific group, Enable: Discards all the packets coming from SUs which are not members of that group Disable: Allows all the packets coming from SUs which are not the members of that group.
  • Page 116 Advanced Configuration The page navigates to the WORP Intra Cell blocking MAC Table. If there are any entries existing, you can apply the existing intra cell blocking technique by enabling them. Figure 4-54: WORP Intra Cell Blocking MAC Table NOTE: If the Entry Status of MAC address is disabled, then SU is not allowed to be the member of any table. Adding table entries: Figure 4-55: WORP Intra Cell Blocking MAC Table Add Row MAC Address: This parameter represents the SUs wireless MAC address.
  • Page 117 Advanced Configuration Entry Status: This parameter is used to configure the status of the particular MAC address. After adding the MAC address, click Add, to update the details. Edit/Delete Entries: The entries can be modified using the Edit icon. In the edit page the status of each group can be modified. To delete any entry from the table select the Entry Status as Delete.

  • Page 118: Dhcp Configuration

    Advanced Configuration 4.9 DHCP Configuration Dynamic Host Configuration Protocol (DHCP) is a network protocol that enables a server to assign an IP address to a device from a defined range of IP addresses configured for a given network. It allows you to distribute IP addresses from a central point to various hosts and simplifies the process of configuring the IP addresses to individual hosts.
  • Page 119 Advanced Configuration To configure the DHCP server and DHCP Interface table 1. Click ADVANCED Configuration > DHCP > DHCP Server > Interfaces. The DHCP screen appears as shown below. Figure 4-57 DHCP 2. Enter the appropriate parameters in the DHCP Interface Table. See the following table that lists the parameters and their descriptions.
  • Page 120 Advanced Configuration Parameter Description Comment Specifies a note for the device administrator. Entry Status Used to enable or disable the DHCP server functionality over the interface. 3. To enable DHCP Server, select Enable for DHCP Server Status. Before enabling, in interface table there should be at least one interface enabled on which the DHCP Server has to run and the DHCP server pool table should have at least one entry configured for that interface.
  • Page 121 Advanced Configuration Parameter Description Delete Allows the user to delete the added pool entry. NOTE: Up to 5 entries per interface can be added in the IP Pool Table. A pool entry can deleted but cannot be edited. 4.9.1.2 Adding a New Pool Entry To add a new Pool entry to the DHCP server 1.
  • Page 122 Advanced Configuration Figure 4-60 DHCP Relay To add Relay Server Table entry 1. Click ADVANCED CONFIGURATION > DHCP > DHCP Relay > Relay Server. 2. Click Add in the DHCP Relay Server screen. The DHCP Relay Server Add Row screen is displayed as shown below. Figure 4-61 DHCP Relay Server Add Row 3.

  • Page 123: Routing Features Configuration

    Advanced Configuration 4.10 Routing Features Configuration 4.10.1 Static Route Table (Routing Mode Only) The static routing table mechanism is available for BSU ans SU in routing mode only. It stores the route to various destinations on the network. When packets are to be routed, the routing table is referred to for the destination address. Figure 4-62 Netlp Static Route Table To set the static routing table 1.
  • Page 124 Advanced Configuration Parameter Description Entry Status This parameter is used to configure the status of the static route. Only enabled routes are considered for routing the packets. 4.10.1.1 Adding Static Route Entries To add Static Route entries 1. Click Add in the Static Route Table screen. The Static Route Table Add Row screen is displayed as shown below. Figure 4-63 Static Route Table Add Row 2.
  • Page 125 Advanced Configuration 1. Static NAT: Static mapping is used to provide inbound access. The SU maps the public IP address and its transport identifiers to the private IP address (local host address) in the local network. This is used to provide inbound access to a local server for hosts in the public network.
  • Page 126 Advanced Configuration NOTE: • To enable Dynamic NAT, set the NAT Status to Enable. To enable Static NAT, set the NAT Status to Enable and the Port Binding Status to Enable. • NAT feature is available for SU in the routing mode only. •...
  • Page 127 Advanced Configuration S.No. Protocol Support Applications H.323 H.323 ALG Multimedia Conferencing HTTP Port Mapping Web Browser inbound connection TFTP Port Mapping Trivial file transfer inbound connection Telnet Port Mapping Remote login inbound connection Port Mapping Chat and file transfer inbound connection AMANDA Port Mapping...
  • Page 128 Advanced Configuration Figure 4-66 Configuring RIP 2. Enter the appropriate parameters. See the following table that lists the parameters and their descriptions. 3. Click OK. Click COMMIT for the changes to take effect. Parameter Description Name Displays the name of the interface as Eithernet1, Ethernet2, or Wireless.

  • Page 129: System Management

    System Management This chapter provides details about the Management screen of the Web interface and describes the procedures to effectively manage the Tsunami MP-8100 device. It covers the following topics: • System • File Management • Services: Configuring the Passwords •...

  • Page 130: System

    System Management 5.1 System 5.1.1 System Information This section displays the basic system information. This information further helps in viewing the device details during troubleshooting. For configuring the system information, click MANAGEMENT > System > Information. Figure 5-1 System Information Parameter Description System Up-Time...
  • Page 131 System Management Parameter Description Phone Number Specifies the Phone number of the concerned person responsible for the device. Location Specifies the location of the device. GPS Longitude, GPS Latitude Specifies the GPS longitude, latitude and altitude at and GPS Altitude which the device is installed.
  • Page 132 System Management Figure 5-3 Licensed features Parameter Description Product Description Specifies the product description. Number of Radios Specifies the number of radios that the device is licensed to operate. Number of Ethernet Interfaces Specifies the number of Ethernet interfaces that the device is licensed to operate.

  • Page 133: File Management

    System Management NOTE: The Input and Output Bandwidth features are referred with respect to the wireless interface. That is, input bandwidth refers to the data received on the wireless interface and output bandwidth refers to the data sent out of the wireless interface.
  • Page 134 System Management 5.2.2 Upgrade Configuration via HTTP For updating the configuration via HTTP web interface, click MANAGEMENT > File Management > Upgrade Configuration > HTTP. Figure 5-5 HTTP Update-Configuration To upgrade the configuration via HTTP 1. Click Browse and locate the configuration file. 2.
  • Page 135 System Management Figure 5-6 Upgrade Firmware-TFTP Tsunami MP-8100 Installation and Management Guide...
  • Page 136 System Management To upgrade the firmware via TFTP server: 1. Enter the TFTP Server IP Address. 2. Enter the name of the firmware file to update to the device. 3. Click Update to initiate the new firmware updation or click Update and Reboot to update and reboot with new firmware immediately.
  • Page 137 System Management 2. Click Retrieve to initiate the operation and retrieve the file to the local system. Figure 5-8 HTTP Retrieve 5.2.5.2 TFTP Retrieve This option is used to retrieve files from the device to the TFTP server. The TFTP server must be running and configured in the desired directory path to copy the retrieved file.

  • Page 138: Services: Configuring The Passwords

    System Management 3. Select the type of file to upgrade from the File Type list: a. Config: To retrieve the configuration file from the device. b. Event Log: To retrieve the event log file from the device. c. Temperature Log: To retrieve the temperature log file from the device. 4.
  • Page 139 System Management The parameters for HTTP/HTTPS are described in the following table. Parameter Description Password Set a new password for the interface or interfaces (Ethernet/ Wireless) to manage the device through the Web interface. Enter a password between 6 and 32 characters in the Password field. The default password is “public”.
  • Page 140 System Management Password Set a new password for the interface or interfaces to manage the device through the CLI. The same password is used for serial CLI also. Telnet Select Enable to allow the Telnet access to the device from any host. You can also select Disable to prevent a user from accessing the device from the CLI.
  • Page 141 System Management 5.3.3 SNMP Figure 5-12 SNMP The parameters for SNMP are described in the following table. SNMP Parameter settings SNMP This parameter provides the access control for the SNMP interface. Select Enable/Disable to enable or disable the SNMP access to the device from any host. Disabling the SNMP will affect the NMS/PVES access to the device.
  • Page 142 System Management Version This parameter configures the SNMP version. The available versions are v1-v2 and v3. By default, the SNMP starts in version v2c. On selecting SNMP v1-v2c, the following parameters need to be configured. Please refer to the Tsunami MP-8100 Reference Manual for SNMPv1-v2c Configuration.
  • Page 143 System Management Auth Password This configures the pass key for Privacy protocol selected. The default password is public123 and range of this field must be between 8-32 characters. The default user in SNMPv3 is “admin” has all read-write privileges and only one user is supported.
  • Page 144 System Management NOTE: When a particular priority is selected, the messages with a priority higher than the value selected will also be logged. Change of priority does not change the priority of the messages already logged but only specifies the priority of future messages to be logged.
  • Page 145 System Management Parameter Description IP Address Represents the IP address of the SYSLOG server. Port Represents the host port number. Default port is 514. Host Comment Used to provide a note for the device administrator. Entry Status Used to configure the status of the Syslog host entry table. Tsunami MP-8100 Installation and Management Guide...

  • Page 146: Sntp

    System Management 5.4 SNTP SNTP allows a network entity to communicate with time servers in the network/Internet to retrieve and synchronize the time of day information. When this feature is enabled, the system attempts to retrieve the time of day information from the configured time servers (primary or secondary);...

  • Page 147: Access Control

    System Management NOTE: • Provide the Primary and Secondary Server details only if the SNTP status is enabled. • For any reason, if the servers configured are not responding, the SNTP client retries every minute. 5.5 Access Control The Management Access Control feature provides the option of controlling the management interfaces only from the specified hosts.

  • Page 148: Reset To Factory

    System Management Figure 5-18 Management Access Table Add Row 3. Enter the IP Address of the device. 4. Select Enable or Disable for the Entry status of the device. 5. Click Add. Ensure that the IP address of the management PC that is used to manage the device is present in the table. Otherwise, you will not be able to manage the device.

  • Page 149: Monitoring The System

    Monitoring the System This chapter describes the procedures to monitor the Tsunami MP-8100 using the MONITOR screen of the Web interface. It covers the following topics: • Interface Statistics • WORP Statistics • Bridge • Network Layer • Radius (BSU only) •...

  • Page 150: Interface Statistics

    Monitoring the System NOTE: The MONITOR screen has Refresh and Clear buttons. Click Refresh to refresh the current page with the latest statistics. Click Clear to clear the current statistics. 6.1 Interface Statistics Interface Statistics provides detailed information about the data exchanged in both directions through the device interface. The statistical information include the type of interface, operational status, MAC address of the protocol, number of packets transmitted, signal information, number of collisions and errors occurred while transmitting the data.
  • Page 151 Monitoring the System The parameters displayed in this page are explained in the following table. Field Description Type This parameter displays the type of interface. The interface type is differentiated based on the network layers. This parameter displays to the largest size of the data packet received/sent on the interface.
  • Page 152 Monitoring the System In addition to the parameters displayed for Ethernet interfaces, the following parameters are displayed for the wireless interface. Parameter Description RSSI Statistics RSSI stands for Received Signal Strength Indicator. For receiving strong signal, the RSSI should be high. This section displays the Receiver statistics.
  • Page 153 Monitoring the System Figure 6-2 Wireless Statistics Tsunami MP-8100 Installation and Management Guide...

  • Page 154: Worp Statistics

    Monitoring the System 6.2 WORP Statistics 6.2.1 General Statistics WORP General Statistics screen displays the signal information, WORP data messages, Data transmission statistics, and Registration details of all the data transmitted through the interface. To view the General Statistics, click MONITOR > WORP Statistics > Interface 1 > General Statistics. Figure 6-3 WORP General Statistics The parameters displayed in this page are described in the following table.
  • Page 155 Monitoring the System NOTE: For better results, the Send Failure/Send Retrieve must be low in comparison to Send Success. The same applies for Receive Retries/Receive Failure. Click Refresh to update the details in this page. 6.2.2 SU Statistics (BSU only) WORP SU Statistics provides the information related to the SU currently connected to the BSU.
  • Page 156 Monitoring the System 6.2.3 BSU Statistics (SU Only) WORP BSU Statistics provides information related to BSU currently connected to the SU. Figure 6-5 WORP BSU Statistics Click Refresh to get the latest updates in this page. 6.2.4 QoS Statistics (BSU Only) To view the QoS Statistics, click MONITOR >...

  • Page 157: Bridge

    Monitoring the System 6.3 Bridge 6.3.1 Bridge Statistics To view the Bridge Statistics, click MONITOR > Bridge > Bridge Statistics. Figure 6-7 Bridge Statistics The following table lists the parameters and their descriptions Parameter Description Description Displays the textual string containing information about the interface.
  • Page 158 Monitoring the System Parameter Description In Ucast Packets Displays the number of subnetwork unicast packets received at the bridge interface. In NUcast Packets Displays the number of non-unicast (i.e., subnetwork-broadcast or subnetwork-multicast) packets received at the bridge interface. In Errors Displays the number of inbound packets that contained errors and are restricted for delivering them to a higher-layer protocol at the bridge interface.

  • Page 159: Network Layer

    Monitoring the System Figure 6-8 Learn Table 6.4 Network Layer 6.4.1 Routing Table Routing table displays all the active routes of the network. These can be either static or dynamic (obtained through RIP). For every route created in the network, the details of that particular link or route will get updated in this table. To view the Routing Table, click MONITOR >...
  • Page 160 Monitoring the System Figure 6-9 Routing Table 6.4.2 IP ARP This section displays the mapping of the IP and MAC addresses of all nodes in the network. This information is based upon the Address Resolution Protocol (ARP). ARP is a L2 neighboring protocol which converts the IP address into a physical address on the Ethernet network.
  • Page 161 Monitoring the System 2. Click Refresh to get the updated or latest ARP Table. 3. Click Clear to delete all entries of the ARP Table. 6.4.3 ICMP Statistics This page provides the statistical information for both received and transmitted messages by the device. The ICMP Statistics attributes can be used to monitor message traffic.

  • Page 162: Radius (Bsu Only)

    Monitoring the System Field Description In Echos The rate of ICMP Echo messages received. In EchoReps The rate of ICMP Echo Reply messages received. In Timestamps The rate of ICMP Timestamp (request) messages received. In Timestamps Reps The rate of ICMP Timestamp Reply messages received. In Addr Masks The number of ICMP Address Mask Request messages received.
  • Page 163 Monitoring the System 6.5.1 Radius Authentication Statistics This page provides information about Radius Authentication for both the primary and backup servers for each radius server profile. To view the Radius Client Authentication Statistics table, click MONITOR > Radius > Radius client Authentication Statistics.

  • Page 164: Dhcp

    Monitoring the System Field Description Resp Specifies the number of Radius response packets received by the system since client startup. Mal Resp Specifies the number of malformed Radius Access Response messages received since client startup. Bad Auths Specifies the number of malformed Radius Access response messages containing invalid authenticators received since client startup.

  • Page 165: Logs

    Monitoring the System 6.7 Logs 6.7.1 Event Log The Event Log keeps track of events that occur during the operation of the device. It displays the event occurring time, event type, and the name of the error or the error message. Based on the priority, the event details are logged and can be used for any reference or troubleshooting.
  • Page 166 Monitoring the System 3. After setting the event log priority option, click Show Event Log to display the event logs. • To delete the Event Log, click Clear Event Log. NOTE: The recent eventlogs are stored in the flash memory. 6.7.2 Syslog System log messages are generated by the system by sending requests at various instances to the system log server.

  • Page 167: Tools

    Monitoring the System NOTE: A recording interval from one to sixty minutes with 5-minute increments can be selected. If we configure the logging interval as "0", temperature logs will be disabled. To view and configure threshold values and the logging interval, click MONITOR > Logs > Temperature Log. The threshold values of temperature are to be configured in Centigrade (Celsius) scale.
  • Page 168 Monitoring the System To view the Interface Statistics, click MONITOR > Tools > Link Test. Figure 6-18 WORP Link Test Click Explore Start to explore the established worp links. This process lists the details of the registered SUs. Clicking the Graph icon provides the local/remote station information.
  • Page 169 Monitoring the System Figure 6-19 WORP Link Status Graph To stop the link test, click Close. NOTE: Link tests are performed for maximum 3 times. By default, the Link Test Status is disabled. 6.8.2 WORP Site Survey (SU Only) WORP Site Survey is done by the SU and scans all the available channels and channel bandwidths, and collects information about all the BSUs on those channels/bandwidths with the given Network Name.
  • Page 170 Monitoring the System To initialize the survey process, click Start button. This process lists all the available BSU details. If you want to stop the site survey process, click the Stop button. NOTE: This survey process is available only for SU mode operation. Tsunami MP-8100 Installation and Management Guide...

  • Page 171: Procedures

    Procedures This chapter provides details about the various procedures involved in the operation of the MP-8100 units through the Web, CLI, and SNMP interface. The following topics are covered in this chapter: • TFTP Server Setup • Web Interface Firmware Download •...

  • Page 172: Tftp Server Setup

    You can download the SolarWinds TFTP server software from the product installation CD or from http://support.proxim.com. You can also download the latest TFTP software from SolarWind’s Web site at http://www.solarwinds.net. The following instructions are prepared with an assumption that you are using the SolarWinds TFTP server software;...

  • Page 173: Configuration Backup

    Procedures 7.3 Configuration Backup You can back up the unit’s configuration by retrieving the configuration file. You can use this file to restore the configuration Configuration Restore). You can update a configuration file through TFTP or HTTP. or to configure another similar unit (see 7.3.1 Through TFTP 1.

  • Page 174: Soft Reset To Factory Default

    Procedures 3. Fill in the following details: • File Name <configuration file name> 4. Click Update to start the file transfer. A reboot is required for the new configuration to be restored into the device. 7.5 Soft Reset to Factory Default The unit can be reset to the factory default settings.

  • Page 175: Download A New Firmware Using Cli From Bootloader

    7.8.1.1 Download Procedure Follow these steps to use ScanTool to download the firmware to a device with a missing firmware: 1. Download the latest software from http://support.proxim.com. 2. Copy the latest software updates to your TFTP server. 3. Launch ScanTool.
  • Page 176 Procedures 7.9.1.1 Download Procedure 1. Download the latest software from http://support.proxim.com. 2. Copy the latest software updates to your TFTP server’s default directory. 3. Use a cross-over serial cable to connect the Unit’s serial port to your computer’s serial port.
  • Page 177 Procedures NOTE: If the device is not responding to your network, hard reset the unit by unplugging and plugging the Power cable to POE. Tsunami MP-8100 Installation and Management Guide...

  • Page 178: Troubleshooting

    This chapter helps you to isolate and solve problems with your MP-8100 unit. If the procedures discussed in this document does not provide a solution, or the solution does not solve your problem, check our support website at http://support.proxim.com. Before you start troubleshooting, check the details in the product documentation. For details about RADIUS, TFTP, terminal and telnet programs, and Web browsers, refer to their appropriate documentation.

  • Page 179: Gigabit Ethernet Poe

    Troubleshooting 8.1 Gigabit Ethernet PoE 8.1.1 The Unit Does Not Work 1. Verify that you are using a standard UTP Category 5e/Category 6 cable. 2. Try a different port on the same Gigabit Ethernet PoE hub (remember to move the input port accordingly) – if it works, there is probably a faulty port or bad RJ-45 port connection.

  • Page 180: Communication Issues

    Troubleshooting 8.2.3 Serial Link Does Not Work 1. Make sure you are using a standard, straight-through, 9-pin serial cable. 2. Double-check the physical network connections. 3. Make sure your PC terminal program (such as HyperTerminal) is active and configured to the following values: –...

  • Page 181: Setup And Configuration Issues

    Troubleshooting If a wireless link is not established after testing two units within close distance of each other, then the problem is either hardware or configuration related, such as a wrong Network name, Encryption key, Network Secret or BSU Name. To eliminate these issues from being a factor, resetting the both units to factory defaults is the recommended solution.
  • Page 182 Troubleshooting 5. If you use static IP Address assignments and cannot access the unit over Ethernet, follow the Initializing the IP Address using CLI procedure. Once the IP Address is set, you can use the Ethernet Interface to complete configuration. If the device contains the default or known IP and is not accessible, then you need to check the Management VLAN configuration.
  • Page 183 Troubleshooting 8.4.7.2 Attaching the Serial Port Cable 1. Connect one end of the serial cable to the unit and the other end to a serial port on your computer. 2. Power on the computer and unit, if necessary. 8.4.7.3 Initializing the IP Address using CLI After installing the serial port, you may use the CLI to communicate with the device.
  • Page 184 Troubleshooting System Name(config-net-ip)# ethernet-ip-table System Name(config-net-ip-etherip)# index 1 ipaddress <ipaddress> System Name(config-net-ip-etherip)# index 1 mask <subnet mask> System Name(config-net-ip-etherip)# index 1 address-type <Address Type> System Name(config-net-ip-etherip)# default-gateway <IP Gateway> System Name(config-net-ip)# default-gateway <IP Gateway> System Name(config-net-ip-etherip)#exit System Name(config-net-ip)#exit System Name(config-net)#exit System Name(config)# commit 1 System Name(config)# reboot 1 6.
  • Page 185 • Download a New Image Using ScanTool • Download a New Image Using the Bootloader CLI Because the CLI option requires a physical connection to the unit’s serial port, Proxim recommends the ScanTool Option. Tsunami MP-8100 Installation and Management Guide...
  • Page 186 Troubleshooting 8.4.14 VLAN Operation Issues The correct VLAN configuration can be verified by “pinging” both wired and wireless hosts from both sides of the device and the network switch. Traffic can be “sniffed” on the wired (Ethernet), if configured. Bridge frames generated by wireless clients and viewed on one of the backbones should contain IEEE 802.1Q compliant VLAN headers or tags.
  • Page 187 By turning the antenna 360 degrees, one can check from which direction the interference is coming. The analyzer will also display the frequencies and the level of signal is detected. Proxim recommends performing the test at various locations to find the most ideal location for the equipment.
  • Page 188 Troubleshooting Move the antennas to a different location on the premises. This causes the devices to look from a different angle, causing a different pattern in the reception of the signals. Use obstructions such as buildings, when possible, to shield from the interference.
  • Page 189 Frequency Domains and Channels Introduction The Tsunami MP-8100 is available in two SKUs one for US (US) and the Other for World (WD) Markets. Depending on the SKU, the device is hard programmed at factory to that Regulatory domain. Regulatory domain controls the list of frequency domains that are available in that SKU.
  • Page 190 Frequency Domains and Channels 2.4 GHz Channels/Frequencies by Country Frequency Domain Frequency Allowed Channels Allowed Channels for Allowed Channels for Band (Center Frequency) for 40 PLUS MHz 40 MINUS MHz 20 MHz United States 2.4 GHz 2.412-2.462 1 (2412), 2 (2417), 1 (2412), 2 (2417), 5 (2432), 6 (2437), 3 (2422)..
  • Page 191 Frequency Domains and Channels 5 GHz Channels/Frequencies by Country Frequency Frequency Allowed Channels Allowed Channels Allowed Channels Domain Band (Center Frequency) for 40 PLUS MHz for 40 MINUS MHz for 20 MHz United States 5.26 ~ 5.32 52(5260), 56(5280), 52(5260), 60(5300). 56(5280), 64(5320).
  • Page 192 Frequency Domains and Channels Frequency Frequency Allowed Channels Allowed Channels Allowed Channels Domain Band (Center Frequency) for 40 PLUS MHz for 40 MINUS MHz for 20 MHz Taiwan 5 GHz 5.500 ~ 5.700 100(5500), 104(5520), 100(5500),108(5540), 104(5520), 112(5560), GHz (DFS). 108(5540), 112(5560), 116(5580),124(5620), 120(5600),128(5640),...
  • Page 193 Frequency Domains and Channels Dynamic Frequency Selection (DFS) The Tsunami MP-8100 supports Dynamic Frequency Selection (DFS) for FCC, IC, and ETSI regulatory domains per FCC Part 15 Rules for U-NII devices, IC RSS-210, and ETSI EN 301-893 and 302-502 regulations, respectively. These rules and regulations require that the devices operating in the 5 GHz band must use DFS to prevent interference with radar systems.

  • Page 194: B Boot Loader Cli And Scantool

    Boot Loader CLI and ScanTool Boot Loader CLI The Boot Loader CLI is a minimal subset of the normal CLI used to perform initial configuration of the unit. The Boot Loader CLI is available when the unit’s embedded software is not running. This interface is only accessible through the serial interface, if: •...
  • Page 195 Boot Loader CLI and ScanTool To Load the Firmware from the Network • Use the show command to view the parameters and their values and use the set command to set the values to the parameters as per the requirement. To Get the IP Parameters Dynamically for Loading the Firmware 1.

  • Page 196: C Technical Specifications

    Technical Specifications This chapter provides information on the following topics: • Part Numbers • Regulatory Approval and Frequency Domains • Integrated Panel Antenna Specifications • Radio and Transmission Specifications • OFDM Modulation Rates • Wireless Protocol • Interfaces • Transmit Power Settings •...
  • Page 197 Technical Specifications Part Numbers MP-8100 Units Model # CPN # Description Tsunami MP 8100 Base Station Unit, 300 Mbps, 2.4 and 5.8 GHz, MP-8100-BSU-US 76705 Type-N Connectors - US PoE MP-8100-SUA-US 76706 Tsunami MP 8100 Subscriber Unit, 2.4 and 5.8 GHz, Type-N Connectors - US PoE MP-8150-SUR-US 76707...
  • Page 198 Technical Specifications Regulatory Approval and Frequency Domains • Safety Standards: UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 • Regulatory Certifications: FCC, IC and ETSI 2.4 GHz Channels/Frequencies Region/Country Frequency Domain Frequency No. of Channels Band (GHz) 40 PLUS 20 MHz MINUS North America...
  • Page 199 Technical Specifications 5 GHz Channels/Frequencies Region/Country Frequency Domain Frequency No. of Channels Band (GHz) 40 PLUS 40 MINUS 20 MHz North America United States 5 GHz 5.26 ~ 5.32, Up to 9 Up to 9 Up to 20 5.50 ~ 5.70, 5.745 ~ 5.825 United States 5.8 5.745 ~ 5.825...
  • Page 200 Technical Specifications Feature Specification Cross Polarization -25 dB Port to port isolation -30 dB Power Handling 5 W (cw) VSWR 1.7:1 Max Cable ULA 316, 30 cm Connector IPEX Standard Compliance ETSI TS3, TS4, TS5 Radio and Transmission Specifications Category Specification Modulation Method OFDM...
  • Page 201 Technical Specifications Wireless Protocol Category Specification Wireless Protocol WORP (Wireless Outdoor Router Protocol) Interfaces Category Specification Wired Ethernet Two auto MDI-X RJ45 Gigabit Ethernet – Port #1 with PoE in & Data – Port #2 with PoE out (802.3af pin out) &...
  • Page 202 Technical Specifications Receive Sensitivity NOTE: Rx Sensitivity values should be considered with a tolerance +/- 2 dB. Modulation (40 MHz) Rx Sensitivity Modulation (20 MHz) Rx Sensitivity 2.4 GHz 5 GHz 2.4 GHz 5 GHz 64 QAM 5/6 -71.0 -71.0 64 QAM 5/6 -75.0 -75.0...
  • Page 203 Technical Specifications Management Category Specification Local RS232 serial CLI (up to 115200 bps) • Telnet and SSH, Web GUI (http) and SSL (https), TFTP Remote • SNMP v1, v2c and v3 • SNMP trap and Syslog Power Supply Category Specification •...
  • Page 204 Technical Specifications Software Features Category Specification • Key Features WORP protocol • Transmit Power Control • Antenna Alignment • Integrity Check for Software Upload • IEEE 802.16e based QoS Support; up to 8 classes of service, up to 8 service flows per class (BSU only) •...
  • Page 205 Technical Specifications Category Specification • Tools Site Survey (to be performed on SU) • Link Test to determine the local/remote signal/noise levels. Management Interface Flexible and responsive management interfaces through Web, CLI and SNMP. SNMPv3 support facilitates secure management. Hardware Specifications Category Specification Radio...

  • Page 206: D Lightning Protection

    The surge arrestor (sometimes referred to as a lightning protector) can protect your sensitive electronic equipment from high-voltage surges caused by discharges and transients at the PoE. Proxim Wireless offers superior lightning and surge protection for Tsunami MP-8100 series products. Contact your reseller or distributor for more information.
  • Page 207 Limitations of Warranty The express warranties set forth in this Agreement will not apply to defects in a Product caused; (i) through no fault of Proxim Wireless during shipment to or from Buyer, (ii) by the use of software other than that provided with or installed in the...
  • Page 208 Calls to the Customer Service Center for reasons other than Product failure will not be accepted unless Buyer has purchased a Proxim Wireless Service Contract or the call is made within the first thirty (30) days of the Product’s invoice date. Calls that are outside of the 30-day free support time will be charged a fee of $250.00 (US Dollars) per Support Call.
  • Page 209 Obtaining Technical Service and Support If you are having trouble using the Proxim product, please read this manual and the additional documentation provided with your product. If you require additional support to resolve your issue, please be ready to provide the following information before you contact Proxim’s Technical Services:...
  • Page 210 Extended Warranty: Extend the life of your networking investment by adding 1, 2, or 3 years to your products standard warranty. This service coverage provides unlimited repair of your Proxim hardware for the life of the service contract. The cost of an extended warranty is far less than the cost of a repair providing a sensible return on your investment.
  • Page 211 Depot Repair To purchase ServPak support services, please contact your authorized Proxim distributor. To receive more information or for questions on any of the available ServPak support options, call Proxim Support at 408-383-7700 or send an email to servpak@proxim.com. Tsunami MP-8100 Installation and Management Guide...

This manual is also suitable for:

Tsunami mp-8100-bsuTsunami mp-8100-suaTsunami mp-8150-sur

Table of Contents
