Netstreams DigiLinX Installation And Design Manual page 61

DigiLinX Installation and Design Guide
Legend
CAT5
7-4
All specifications subject to change without notification. All rights reserved. Copyright © 2008 NetStreams
The cable and EIM splitter are located under the cardboard bottom in
IMPORTANT!
the KeyLinX box.

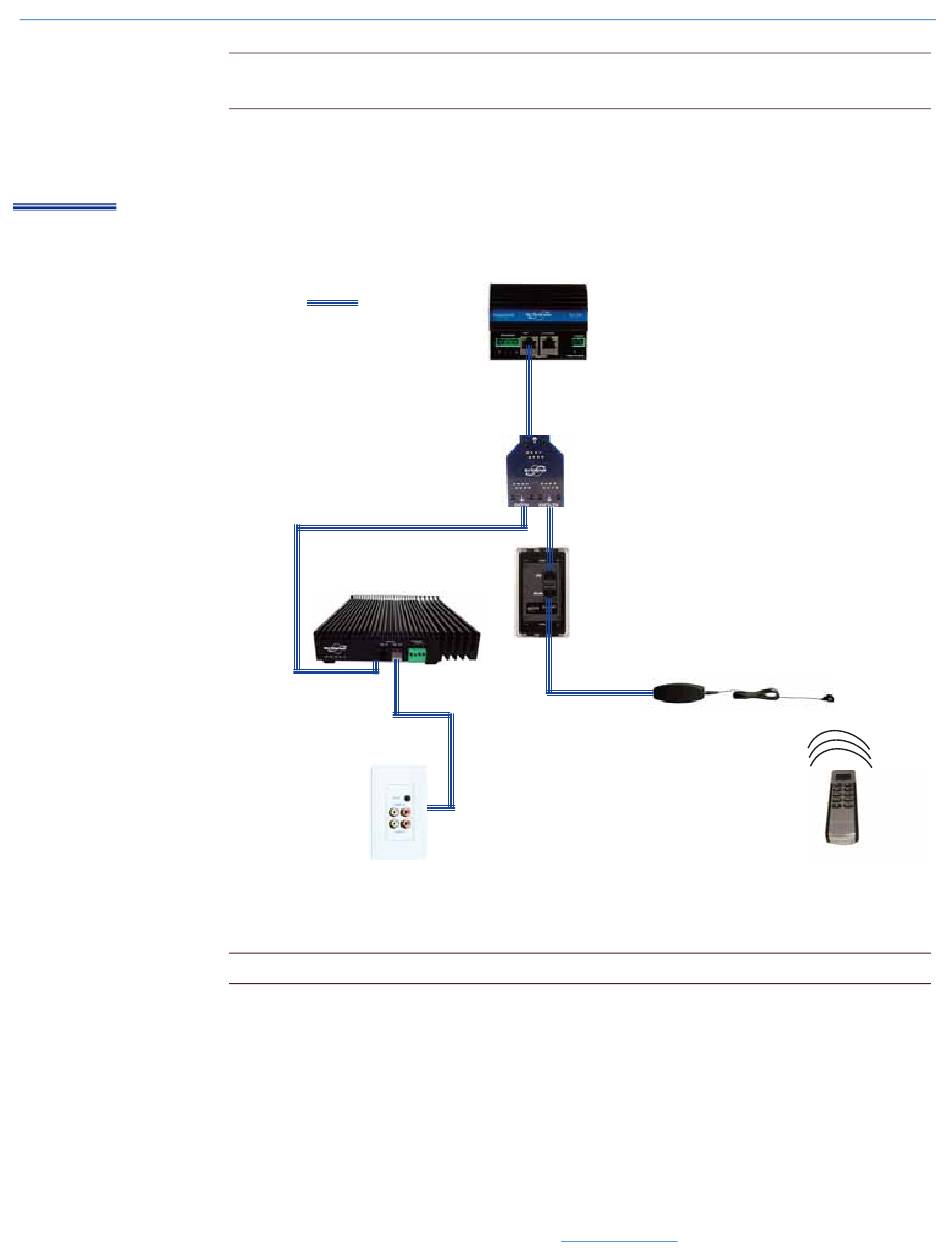

Figure 7-1 KeyLinX Configuration
Maximum CAT5 cable length for EIM connections is 60 feet.
NOTE:
To connect the KeyLinX configuration shown in the figure above, follow these steps:
Locate the cable and splitter under the cardboard located at the bottom of the Key-
1.
LinX box.
Connect the SpeakerLinX to the EIM splitter connector labeled SpeakerLinX using
2.
the 1 foot cable provided.
Connect the KeyLinX to the EIM splitter jack labeled KeyLinX.
3.
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.
KL1R
