DigiLinX Installation and Design Guide
Example Configuration 3 - Four - Zone Wiring
16-4
All specifications subject to change without notification. All rights reserved. Copyright © 2007 NetStreams
Figure 16-3 shows another possible DigiLinX configuration. This is a four-zone
system.

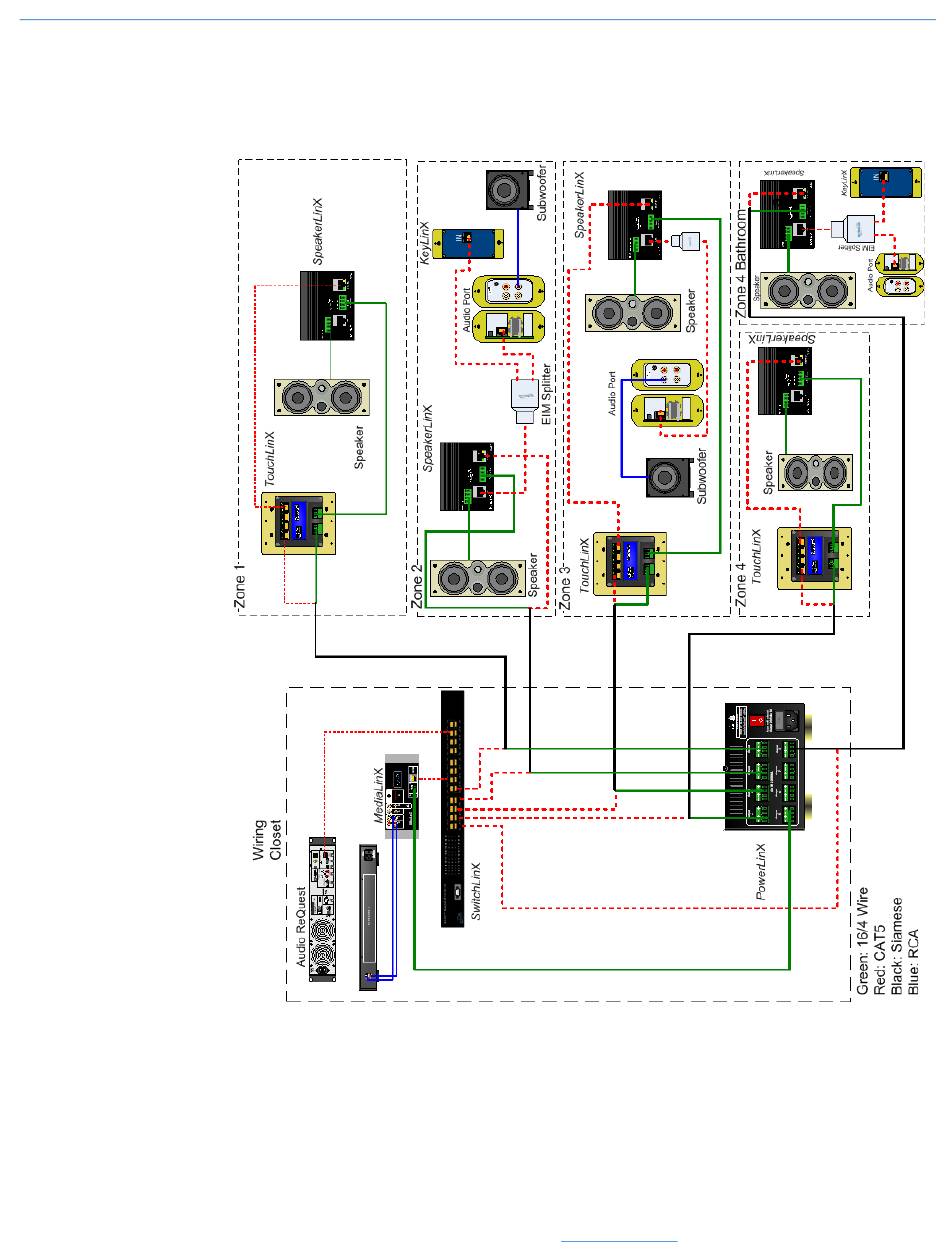

Figure 16-3
Example 3 - Four-Zone System
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 78727 /
www.netstreams.com.
