DigiLinX Installation and Design Guide

Installing a SpeakerLinX with an IRLinX and TouchLinX

4-6
All specifications subject to change without notification. All rights reserved. Copyright © 2008 NetStreams
an RP24/RP25 rack mount plate (sold separately).
The SL9250-CS will mount directly into a rack using the include rack mount ears.
To install a SpeakerLinX into a rack, complete the following steps:
Screw the SpeakerLinX' (up to four) onto the rack mount plate (see Figure 4-4).
1.
Screw the rack mount plate to the back of the rack.
2.

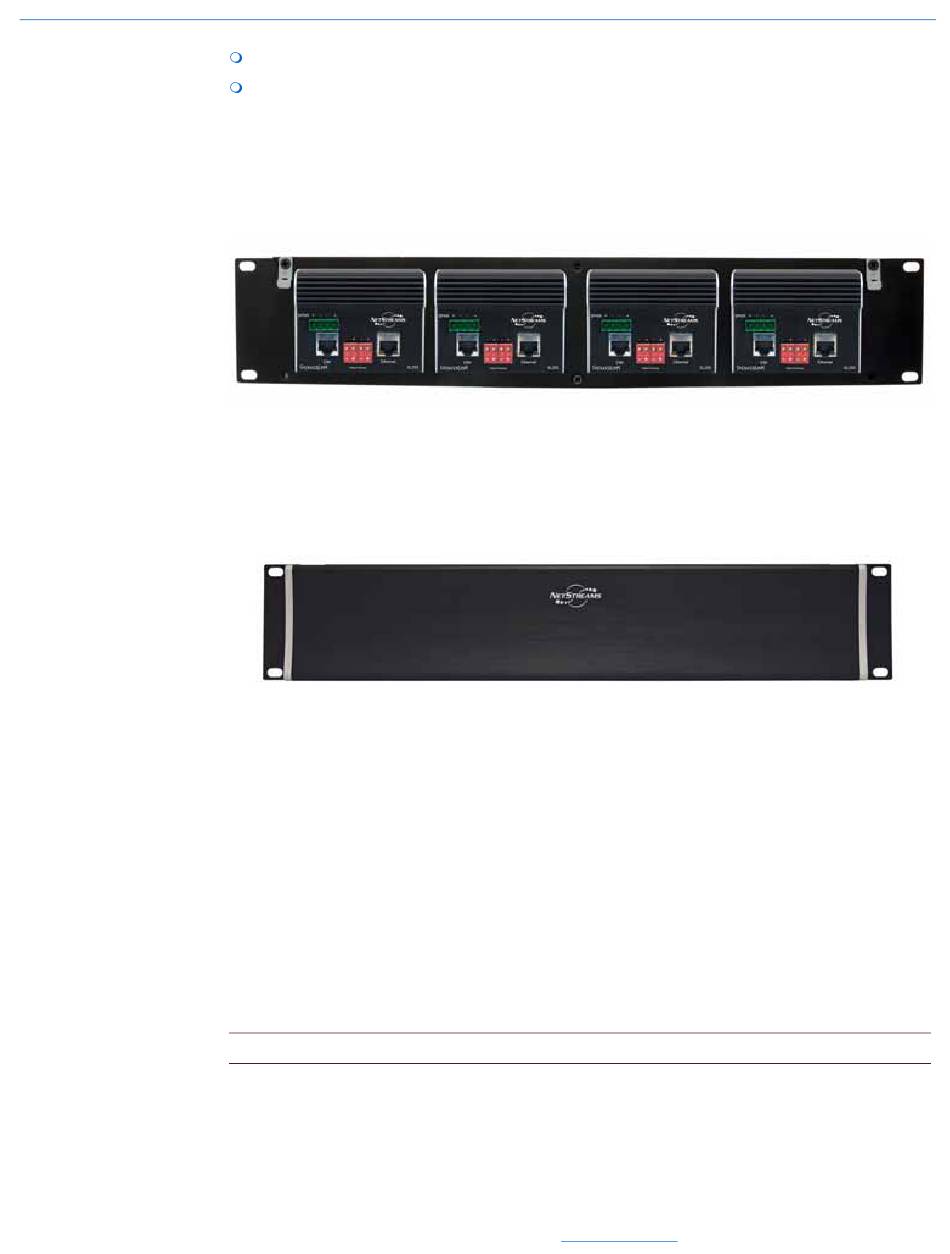

Figure 4-4 SpeakerLinX rack mount
Screw the rack mount plate cover in place, if desired (see Figure 4-5).
3.
Figure 4-5 Rack mount plate cover
The SpeakerLinX can be installed with an IRLinX via an EIM splitter as shown in
Figure 4-6. Follow these steps to connect an IRLinX and a TouchLinX to a
SpeakerLinX.
Connect the TouchLinX to the SpeakerLinX connector labeled Ethernet.
1.
Locate the EIM splitter under the cardboard at the bottom of the IRLinX box.
2.
Connect the EIM splitter to the SpeakerLinX connector labeled EIM using the
3.
provided 1 foot CAT5 cable.
Connect the IRLinX to the EIM splitter connector labeled KeyLinX.
4.
Connect the TouchLinX to the SwitchLinX.
5.
Only one SpeakerLinX can be plugged into a TouchLinX.
NOTE:
