4.5.Play 2

1. Fix one M3*8 Copper Standoff to A15.

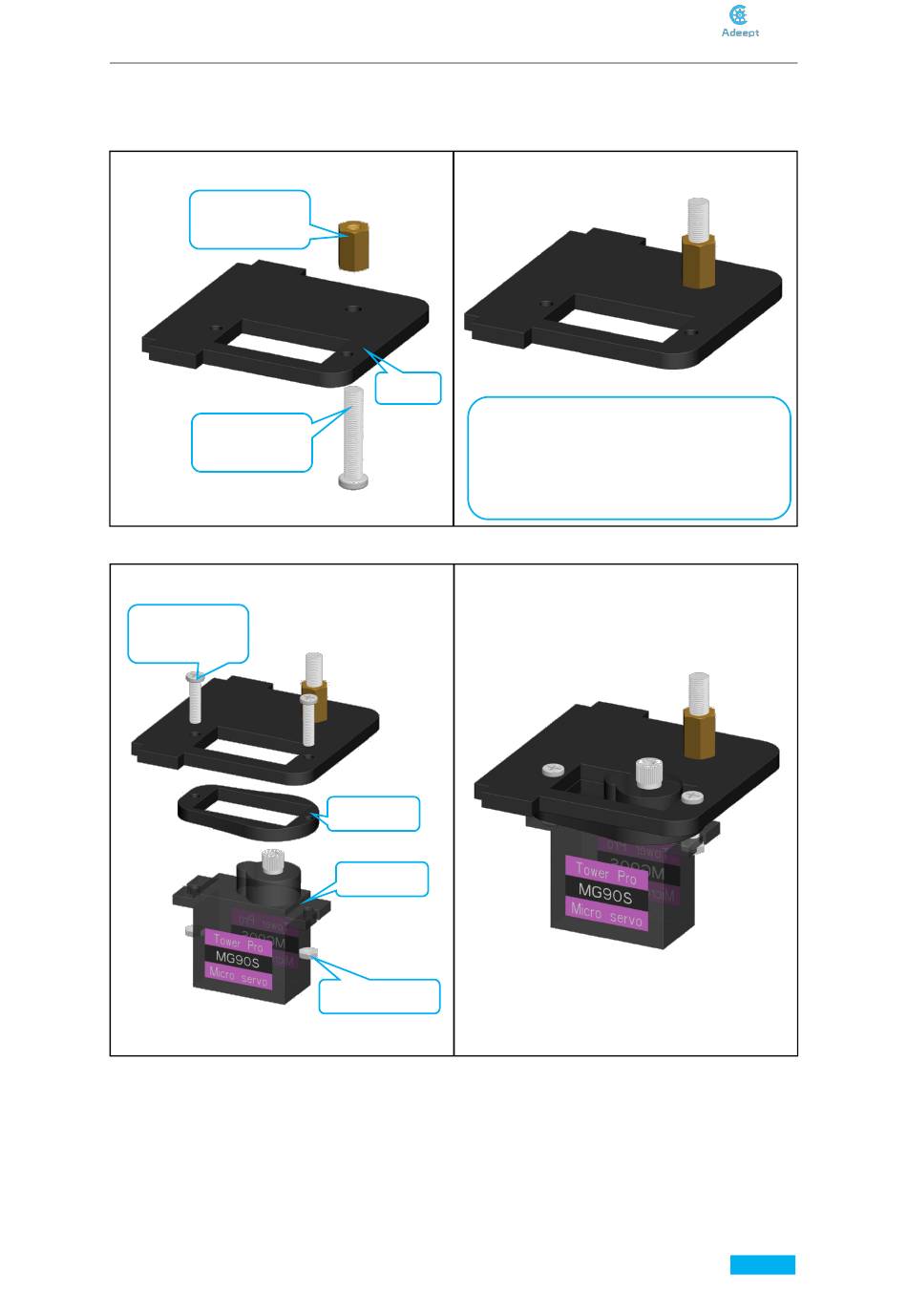

Assemble the following components
M3*8 Copper
Standoff
M3*18 Screw
x1
2. Fix a debugged servo to A15.
Assemble the following components
M2*10 Screw
x2
Effect diagram after assembling
A15
Install it in strict accordance with the
position shown in the figure. Do not
mount the M3*8 Copper Standoff on the
other side of the A15.
Effect diagram after assembling
A09 x1
Servo x1
M2 Nut x2
