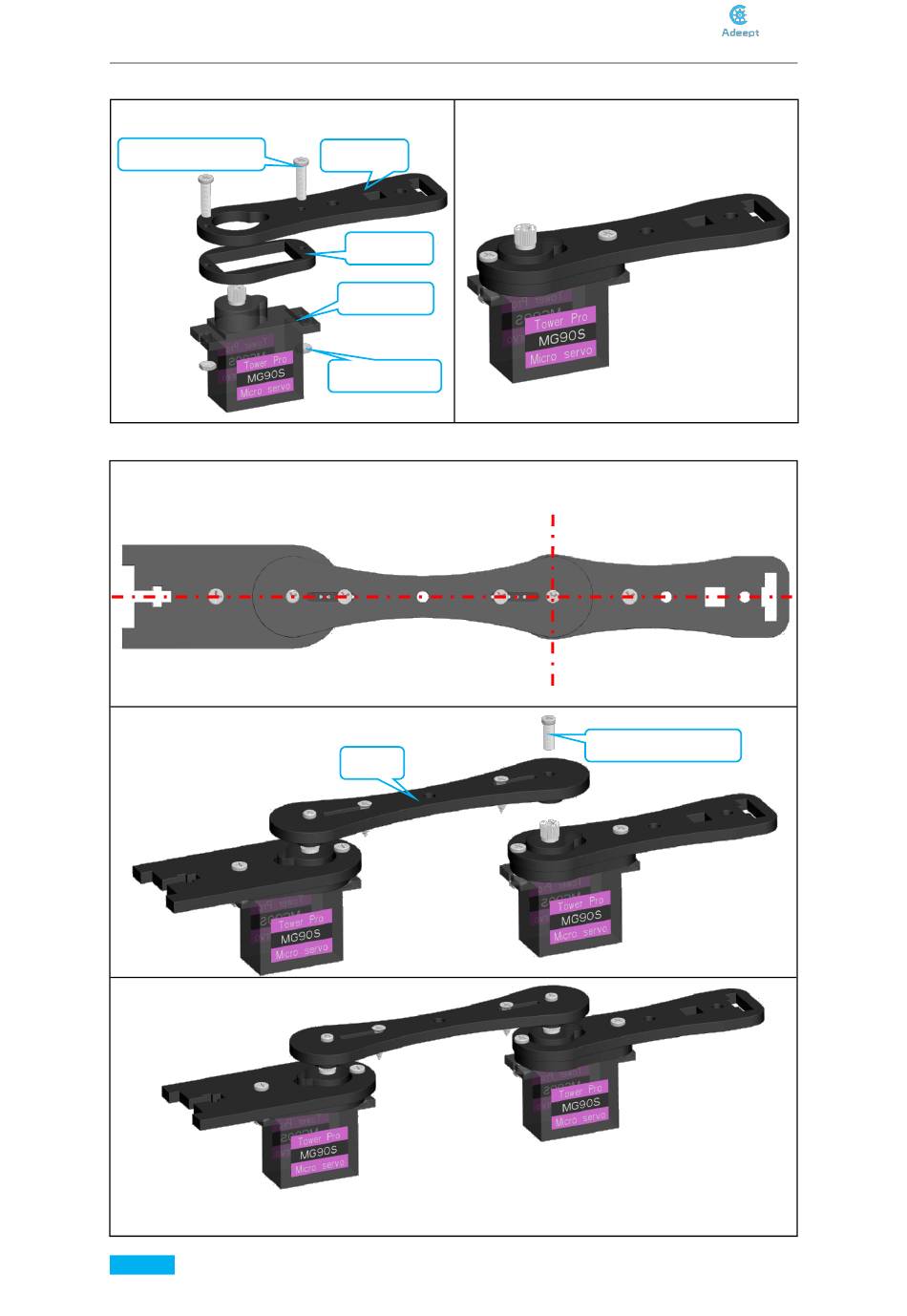

9. Fix a debugged servo to A10.
Assemble the following components
M2*10 Screw x2
10. Then fix the other end of the A07 to the servo on the A10.
First install the rocker arm on the A07 into the servo. When installing, the mounting hole of
the rocker arm should be aligned with the round hole on the A07. Install it at the angle
shown below.
Assemble the following components
Effect diagram after assembling
40
Effect diagram after assembling
A10 x1
A09 x1
Servo x1
M2 Nut x2
A07
www.adeept.com
M2.5*7 Screw x1
