4.6.Circuit Connection

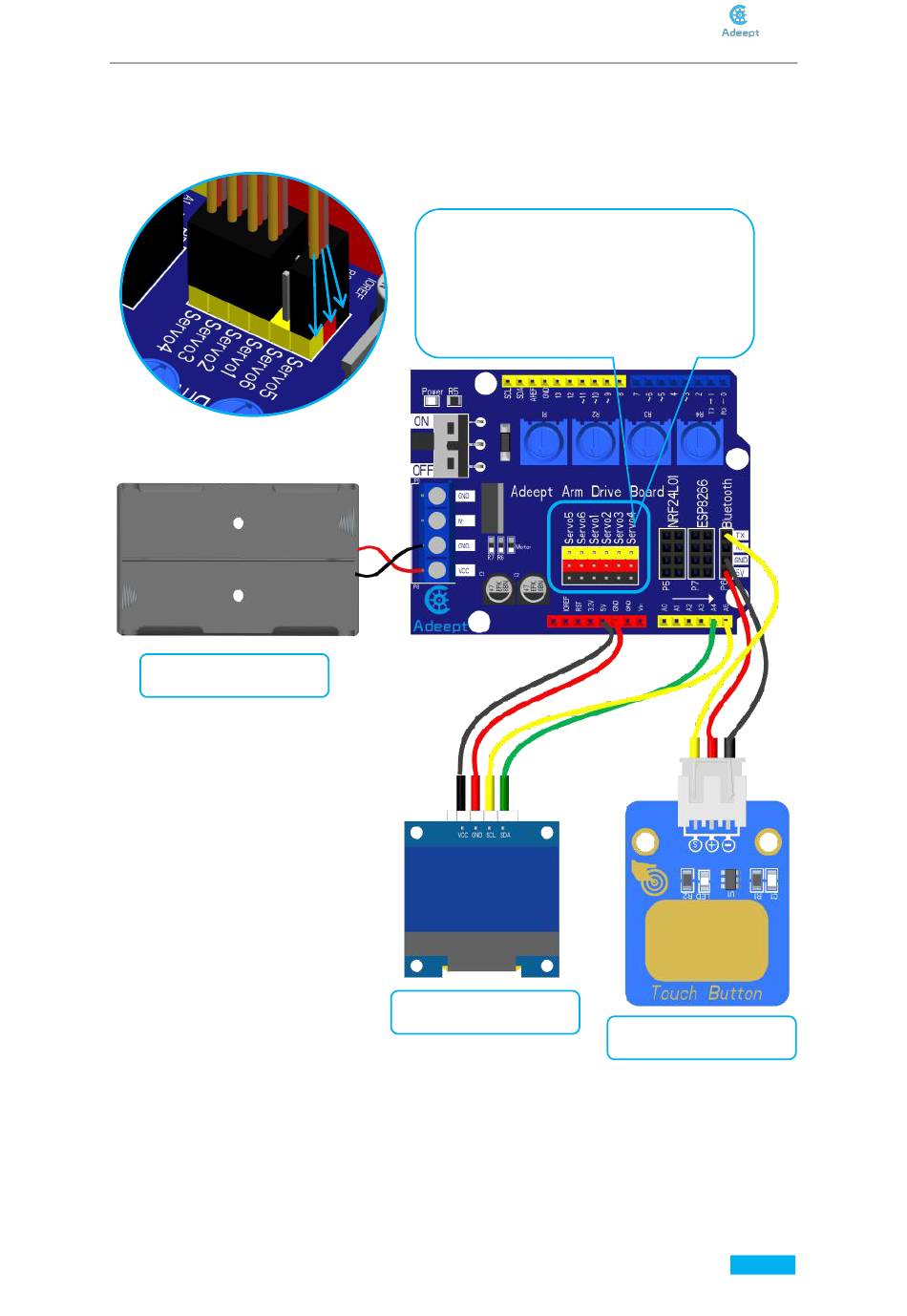

Connection of each devices for the robotic arm:

18650x2 Battery Holder
Insert the servo numbered in the last step
into the port here correspondently. The
color of the three power cables of the servo
corresponds to the port color (as shown on
the left).
OLED
