Installing the Device
2.3.3 Mounting the Device to a Panel
To mount the device to a DIN rail, do the following:
1.
2.
2.3.3

Mounting the Device to a Panel

For panel installations, the RUGGEDCOM RSG2488F can be ordered with panel/DIN
rail adapters pre-installed on each side of the chassis. The adapters allow the device
to be attached to a panel using screws.
10
Align the adapters with the DIN rails and slide the device into place.
3
1
2
1
2
DIN Rail
1
Panel/DIN Rail Adaptor
2
Screw
3

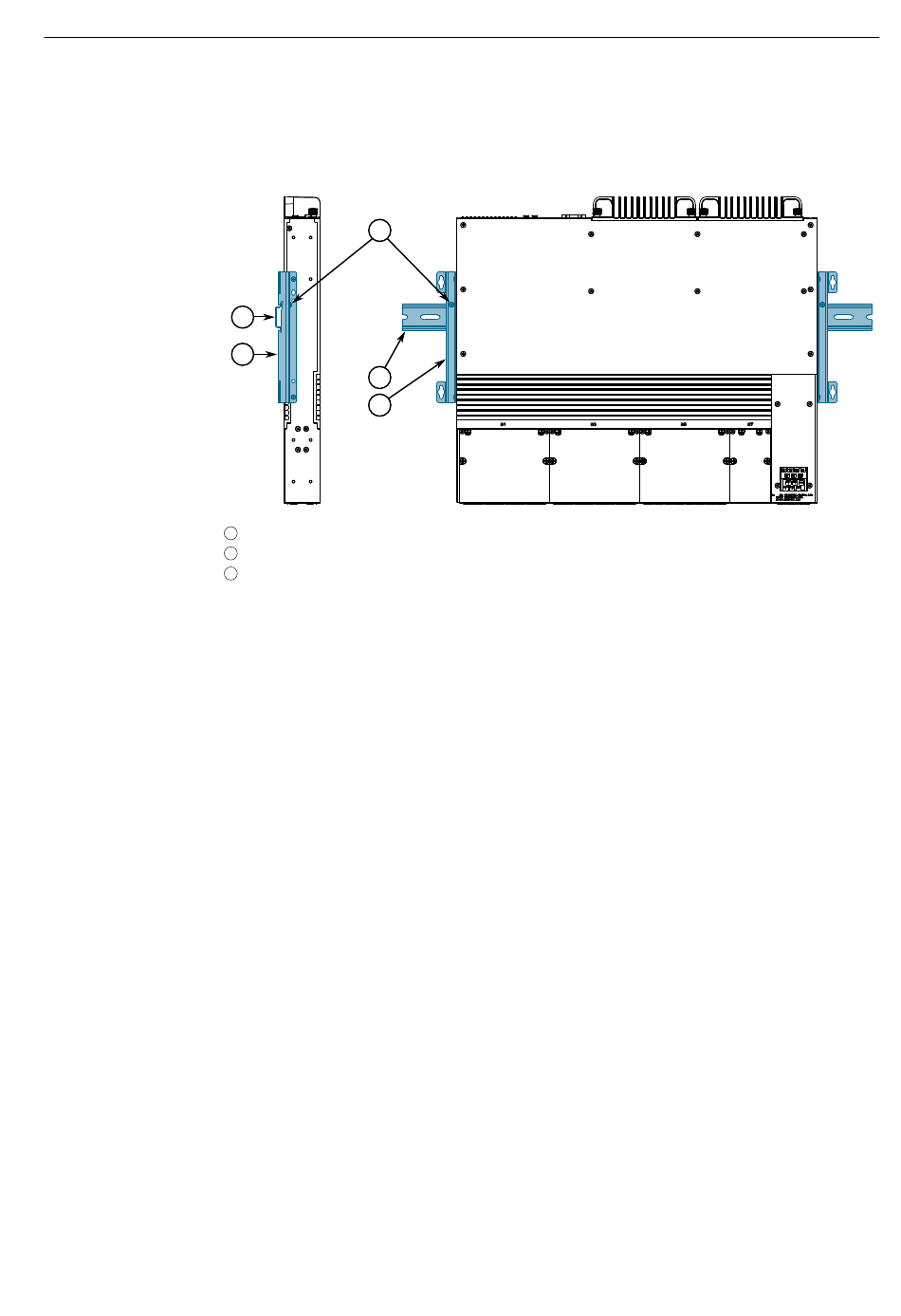

Figure 2.2 DIN Rail Mounting
Install one of the supplied screws on either side of the device to secure the
adapters to the DIN rails.
