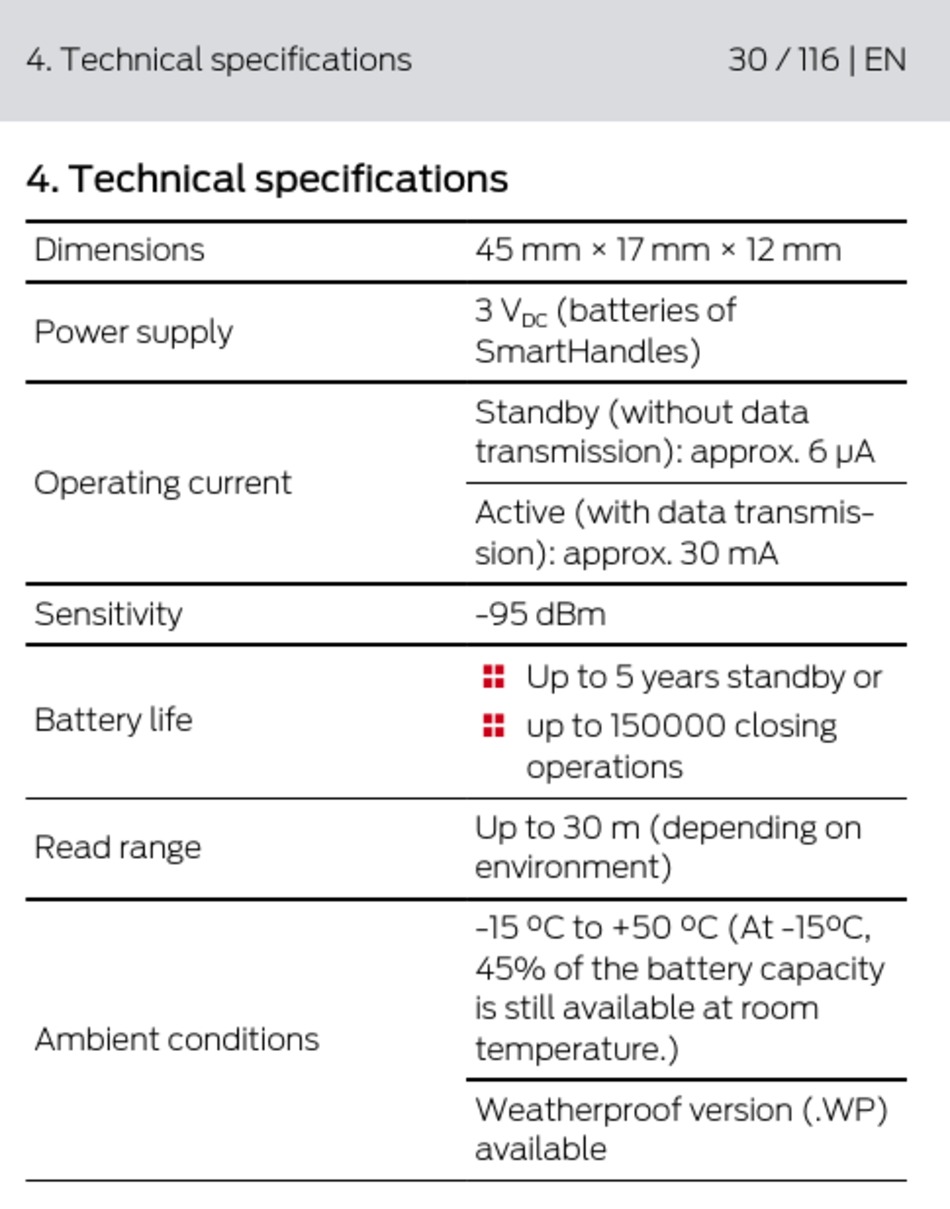

4. Technical specifications
4. Technical specifications
Dimensions
Power supply
Operating current
Sensitivity
Battery life
Read range
Ambient conditions
45 mm × 17 mm × 12 mm
3 V
(batteries of
DC
SmartHandles)
Standby (without data
transmission): approx. 6 µA
Active (with data transmis-
sion): approx. 30 mA
-95 dBm
Up to 5 years standby or
up to 150000 closing
operations
Up to 30 m (depending on
environment)
-15 °C to +50 °C (At -15°C,
45% of the battery capacity
is still available at room
temperature.)
Weatherproof version (.WP)
available
30 / 116 | EN
