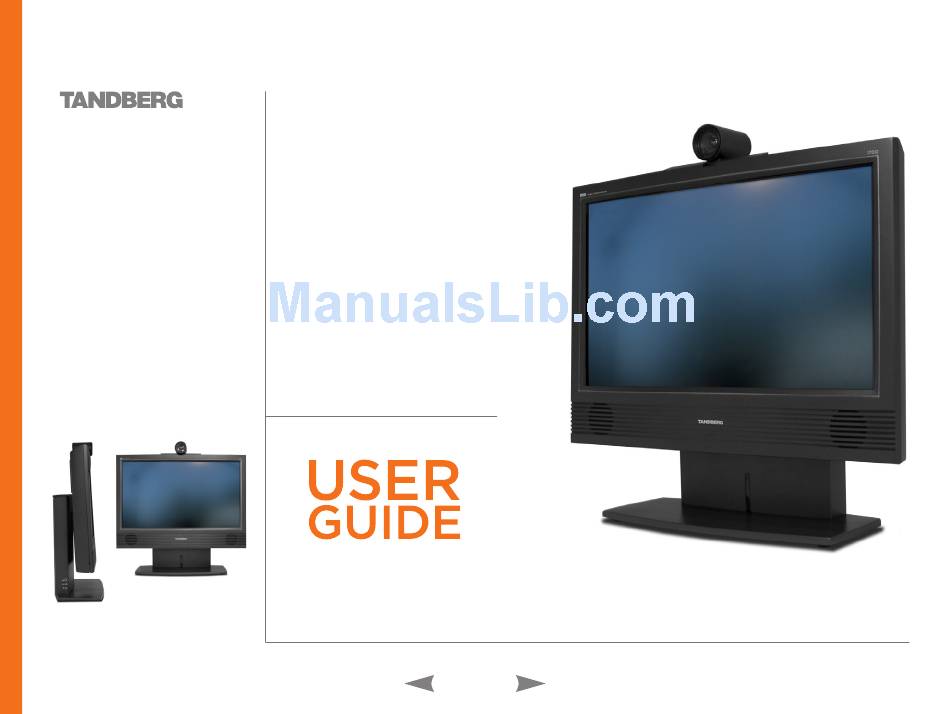

Administrator's Manual
1700
MXP
•

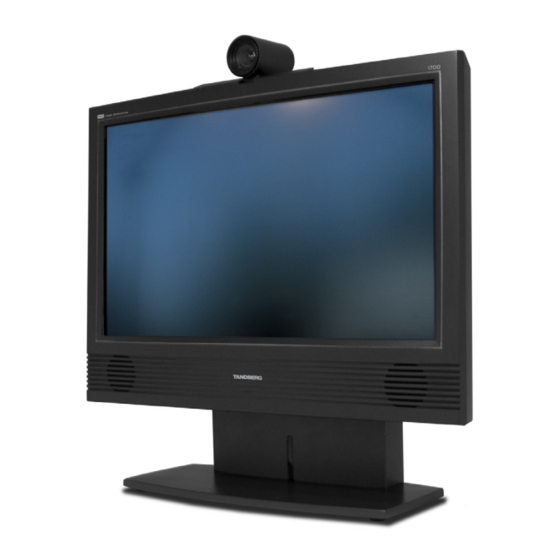

Highly integrated stand-alone
executive video system
•
Integrated 20" LCD wide screen
•
Integrated High Definition camera
•
Simple user interface
•
Optional MultiSite capabilities
•
Optional presentation and
dual video stream capabilities
•
Headset connection for privacy
•
Standards-based embedded
encryption (AES & DES)
•
Protection against network interruptions
with automatic Downspeeding and IPLR
Software version F5
D13954.01
JUNE 2006
Advertisement
Table of Contents
Related Manuals for TANDBERG 1700 MXP
Summary of Contents for TANDBERG 1700 MXP
- Page 1 1700 • Highly integrated stand-alone • Integrated 20” LCD wide screen • Integrated High Definition camera • Simple user interface • Optional MultiSite capabilities • Optional presentation and • Headset connection for privacy • Standards-based embedded • Protection against network interruptions executive video system dual video stream capabilities encryption (AES & DES) with automatic Downspeeding and IPLR Software version F5 D13954.01 JUNE 2006...
-
Page 2: Trademarks And Copyright
Trademarks and Copyright We recommend that you check out the All rights reserved. This document contains information TANDBERG web site regularly for updated that is proprietary to TANDBERG. No part of this publication versions of this manual: may be reproduced, stored in a retrieval system, or http://www.tandberg.net/support/ documentation.php transmitted, in any form, or by any means, electronically, mechanically, by photocopying, or otherwise, without the prior written permission of TANDBERG. Nationally and internationally recognized trademarks and tradenames are the property of their respective holders and are hereby acknowledged. COPYRIGHT © 2006, TANDBERG Philip Pedersens vei 22 1366 Lysaker, Norway Tel: Fax: e-mail: tandberg@tandberg.net +47 67 125 125 +47 67 125 234... -
Page 3: Disclaimer & License Agreements
Disclaimer & License Agreements We recommend that you check out the The information in this document is furnished for TANDBERG web site regularly for updated informational purposes only, is subject to change without versions of this manual: prior notice, and should not be construed as a commitment http://www.tandberg.net/support/ documentation.php by TANDBERG. TANDBERG reserves the right to amend any of the information given in this document in order to take account of new developments. Every effort has been made to supply complete and accurate information, however, TANDBERG assumes no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights of third parties resulting from its use. No license is granted under any patents or patent rights of TANDBERG. -
Page 4: Disclaimer & License Agreements
Disclaimer & License Agreements, Patent Information Disclaimer The information in this document is furnished for informational pur- poses only, is subject to change without prior notice, and should not be construed as a commitment by TANDBERG. TANDBERG reserves the right to amend any of the information given in this document in order to take account of new develop- ments. Every effort has been made to supply complete and accurate infor- mation, however, TANDBERG assumes no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights of third parties resulting from its use. No license is granted under any patents or patent rights of TANDBERG. License Agreements All rights reserved. This document contains information that is proprietary to TANDBERG. No part of this publication may be repro- duced, stored in a retrieval system, or transmitted, in any form, or by any means, electronically, mechanically, by photocopying, or oth- erwise, without the prior ritten permission of TANDBERG. Nationally and internationally recognized trademarks and trade names are the property of their respective holders and are hereby acknowledged. Copyright notices for third-party software on the TANDBERG MXP systems are listed below: • Full copies of the licenses and warranty statements are located on the product CD in the the license_files directory. • The non-commercial third party code is distributed in binary form under the terms of non-copyleft style open source licenses such as BSD, Artistic, or MIT/X Consortium. • The product also contains some binary code distributed in binary form under the terms of the GNU public license with an exemption which allows static links to non-copyleft commercial code. -
Page 5: Operator Safety / Environmental Issues
Operator Safety / Environmental Issues We recommend that you check out the For your own protection, please read the overleaf safety TANDBERG web site regularly for updated instructions completely, before operating the equipment versions of this manual: and keep this manual for future reference. The information http://www.tandberg.net/support/ documentation.php in this summary is intended for operators. Carefully observe all warnings, precautions and instructions both on the apparatus and in the operating instructions. -
Page 6: Safety Instructions
Do not tug the power cord. Accessories • If the provided plug does not fit into your Use only accessories specified by the outlet, consult an electrician. manufacturer, or sold with the apparatus. • Never install cables, or any peripherals, without first unplugging the device from it's Communication Lines power source. Do not use communication equipment to • Always use the power supply (AC–DC adap- report a gas leak in the vicinity of the leak. tor) provided with this product. • Replace only with power supply (AC–DC adaptor) specified by TANDBERG. • Never connect attached power supply (AC–DC adaptor) to other products. Servicing • Do not attempt to service the apparatus yourself as opening or removing covers may expose you to dangerous voltages or other hazards, and will void the warranty. Refer all servicing to qualified service personnel. • Unplug the apparatus from its power source and refer servicing to qualified personnel under the following conditions: • If the power cord or plug is damaged or frayed. •... -
Page 7: Environmental Issues
Environmental Issues Thank you for buying a product which contributes to a reduc- tion in pollution, and thereby helps save the environment. Our products reduce the need for travel and transport and thereby reduce pollution. Our products have either none or few consum- able parts (chemicals, toner, gas, paper). Our products are low energy consuming products. TANDBERG’s Environmental Policy Environmental stewardship is important to TANDBERG’s culture. As a global company with strong corporate values, TANDBERG is committed to following international environmen- tal legislation and designing technologies that help companies, individuals and communities creatively address environmental challenges. TANDBERG’s environmental objectives are to: • Develop products that reduce energy consumption, CO emissions, and traffic congestion • Provide products and services that improve quality of life for our customers • Produce products that can be recycled or disposed of safely at the end of product life • Comply with all relevant environmental legislation. D 13954.01 JUNE 2006 European Environmental Directives As a manufacturer of electrical and electronic equipment TAND- BERG is responsible for compliance with the requirements in the European Directives 2002/96/EC (WEEE) and 2002/95/EC (RoHS). The primary aim of the WEEE Directive and RoHS Directive is to reduce the impact of disposal of electrical and electronic equipment at end-of-life. The WEEE Directive aims to reduce... -
Page 8: Finding The Information You Need
Finding the Information You Need We recommend that you check out the Thank you for choosing TANDBERG! TANDBERG web site regularly for updated The TANDBERG 1700MXP has been designed to provide versions of this manual: http://www.tandberg.net/support/ you with many years of safe, reliable operation. documentation.php Your approach to the 1700MXP documentation depends on what you want to do and how much you already know. This User Guide has been divided into several separate sections. Each section provides different information. Depending on your requirements and your familiarity with the 1700MXP and video meeting systems as such, you may find that you use some parts of this User Guide often and others not at all. Our objective with this manual has been to address your goals and needs. Please let us know how well we succeeded! -
Page 9: Table Of Contents
Lightning ..6 Dust ... 6 Vibration ..6 Power Connection and Hazardous Voltage ... 6 Servicing ... 6 Accessories ... 6 Communication Lines ..6 TANDBERG’s Environmental Policy ... 7 European Environmental Directives ... 7 Waste Handling ..7 Information for Recyclers ..7 Digital User Guides ... 7 Viewing Angle Adjustment ..13 Connecting Headset ..13 Connecting Cables ... - Page 10 Call Handling Access Codes ... 25 About Access Codes ... 25 Making Calls when Prompted for an Access Code ... 25 Making Point-to-Point Video & Telephone Calls Manually ... 26 Making Video Calls Manually ... 26 Making Telephone Calls Manually ... 26 Choosing Between Video and Telephone Call ..26 Making Point-to-Point Calls Using the Phone Book ...27 About the Phone Book ..27 Making Calls Using the Phone Book ... 27 System Asks for Access Code? ...
- Page 11 Audio Algorithm ... 87 AAC-LD 128 kbps (Stereo Audio) ... 88 Natural Video ... 89 Maximum Upstream Rate (kbps) ... 90 Video Quality ... 91 About Intelligent Video Management (IVM) on TANDBERG Systems ... 92 Intelligent Video Management (IVM) ... 92 Motion ..92 Sharpness ... 92 IVM Resolution .
-
Page 12: Getting Acquainted With The System
Getting Acquainted with the System Before you start using the system we recommend that We recommend that you check out the TANDBERG web site regularly for updated you take your time to read through this section of the versions of this manual: User Guide to get you up and going. http://www.tandberg.net/support/ documentation.php This section outlines how to connect the system and the basic operating principles. Important video and sound matters are also covered. -
Page 13: Preparing For Use
Connect the video system DVI-I for PC to your LAN presentations RS-232 (for adminstrator use) CAUTION! Do not rest the system on the camera or on the screen. Use the mirror to locate the connectors. is here. There is a lid in the accessories box. Mount the lid as shown. The lid will be held in place by magnets. Camera Matters The Lens Cap is held in place by a magnet. To let the PC and Power the video system share a single LAN connection, connect Turn the ring to focus your PC to the LAN the camera. To see through the video yourself press the system. Selfview key on the Remote Control. TANDBERG 1700 USER GUIDE Selfview key Tilt the camera manually to make it point at you. Some drawing details may differ from actual system. -
Page 14: User Guide
Press OK to show the menu and select menu items. Volume + and – adjusts the volume. Layout key toggles between full screen and different display layouts. Press the Call key to place a call. Presets Not used on 1700 MXP. The Alphanumerical keypad functions in the same manner as a cellular phone. Snapshot Snapshot takes a snap- shot, but only during a call. TANDBERG 1700 Presentation key switches to a predefined pres- entation source. If the Presentation key is held down for 1 second then the Presentation video sources menu will appear. keys are used to navigate in the menus. Arrow Use Zoom + and – to zoom the camera in and out. Selfview displays your outgoing video. Press again to turn off. Cancel takes you back one step in the menu sys- tem, i.e. to leave a menu undoing any changes. Use Cancel to delete characters in an input field. Press and hold the Cancel key for 1 second to close the menu. -
Page 15: Operating Principles
Once a topic has been selected, press OK to enter that topic. Navigate as described above. Camera Presets Touch tones Snapshot Touch tones Editing a Setting Using Radio Buttons Radio buttons, use Horizontal Arrow keys to select the appropriate setting. Press OK to select a setting. Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE Use the horizontal Arrow keys to navigate in the menu line and press OK to enter a submenu. Camera Presets Snapshot Touch tones To go deeper into the menu structure, all menus with an arrow appended allow you to enter a submenu by means of the OK or Right Arrow key. Navigate as before. -
Page 16: Camera Adjustments
Getting Acquainted with the System Camera Adjustments About Camera Adjustments The focus of the camera is adjusted manu- ally by rotating the ring as pointed out in Preparing for Use. The camera can be tilted manually as explained on the same page. This leaves us with the following adjustments carried out through the menu system: • Whitebalance • Brightness • Backlight Compensation D 13954.01 JUNE 2006 Adjusting the Camera Press OK and navigate to the Camera Control icon. Click OK and use the Arrow keys to navigate and adjust or select the settings available. Click OK when satisfied, navigate to any other settings in need of adjustment and repeat the procedure. Exit the menu in the usual manner. TANDBERG 1700 Click OK to enter the Picture Control options and navigate to the Picture Control icon. USER GUIDE... -
Page 17: The Icons Appearing On The Screen
Microphone Off This indicator is shown when the volume is turned off. Press Volume off button volume back on. Secure Conference, AES Secure Conference, DES This padlock indicator is shown when DES encryption (Secure Conference) is active. Telephone Volume Off On Air When you have the floor in a multisite con- ference this is indicated by the On Air icon. + to turn the Not Secure Conference This open padlock indicator is shown dur- ing the initialization phase for AES or DES encryption. During this period the call is not secure. Bad Network This indicator appears if the system detects network anomalies like packet loss, jitter etc., during a call. Open the menu by press- ing the OK/Menu button and select the warnings icon too see details. TANDBERG 1700 USER GUIDE... -
Page 18: Selfview
Touch tones Using Selfview in a Point-to-Point Call with Dual Video Stream Dual video stream Camera Presets Snapshot Touch tones Near end video Far end video Camera Presets In a point to point call with a dual video stream, the duo video is displayed in the big picture. Press the Selfview button to toggle to the Near Snapshot Touch tones ture, then the Far End picture, and finally back to the Dual Video TANDBERG 1700 USER GUIDE Camera Presets Snapshot Touch tones End pic- Stream. -
Page 19: Screen Layout
Layout key. Auto Layout applies when you open or close a dual video stream, or add or disconnect participants. Auto Layout also includes automatic PIP. That implies that PIP will be shown when suitable, e.g. to display selfview when you move your near end camera. The automatic PIP times out after a couple of seconds. OFF means no automatic layout changes during a call – you must manually control the images with the Layout key. Auto is default ON. To turn Auto Layout to Control Panel > Screen Settings. Side-by-Side (1+1) Camera Presets Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE Layout OFF, go Camera Presets Snapshot Touch tones... -
Page 20: Local Pc Display
D 13954.01 JUNE 2006 Using the Display as Local PC Display You are using the monitor You accept an as a PC monitor. incoming call. Local PC display. Camera Presets Snapshot Camera Presets Snapshot Touch tones Camera Presets Snapshot Near end video TANDBERG 1700 Touch tones Camera Presets Snapshot Touch tones Touch tones Far end video USER GUIDE... -
Page 21: Sound Matters
Using the Internal / Headset Switch There are connectors for the headset and the headset-microphone on the left side of the socket, when viewed from the front – see Fig. The little switch is used to toggle between the system’s own speakers/microphone and the headset’s. • If you connect headset only (no microphone) the toggling will be between the systems’s loudspeakers and the headset’s. • If you connect headset and mic., the toggling will be between the system’s speakers/microphone and the headset’s. • If you connect a microphone only (no headset), nothing will happen when you press the switch. TANDBERG 1700 USER GUIDE …you will end up using Headset loudspeaker Internal microphone Headset loudspeaker Headset microphone Internal loudspeaker Internal microphone Headset toggle button... -
Page 22: Numerical Keypad Features
• To write numbers in a text input field, repeatedly press the corresponding key a number of times until the digit appears. Example: How do I write System 123 in the System input field (in General in Administrator Do as follows: Press the 7-key four times to get an S. Press the #-key once to switch between upper case and lower case letters. Press the -key three times to get a y. Press the 7-key four times to get an s. Press the 8-key once to get a t. Press the 3-key twice to get an e. Press the -key once to get an m. Press the 0-key once to get space. tones button. An Press the 1-key three times to get a 1. Press the 2-key four times to get a 2. Press the 3-key four times to get a 3. TANDBERG 1700 keypad are automatically a/A key, Name Settings)? Presets Presets Snapshot Snapshot USER GUIDE Touch tones Touch tones... -
Page 23: Standby
Press OK/Menu and navigate to the Navigate to the Delay Standby for 1 Standby icon. Select Standby from hour icon and click OK. the menu and click OK. To Enable Delay Standby Mode for 3 Hours Press OK/Menu and navigate to the Navigate to the Delay Standby for 3 hours icon and click OK. Standby icon. Select Standby from the menu and click OK. TANDBERG 1700 USER GUIDE now icon The system will now enter Standby Mode immediately. The system will enter Standby in 1 hour from now. The system will enter Standby in 3 hours from now. Mode... -
Page 24: Call Handling
Call Handling Your TANDBERG 1700 MXP can do point-to-point video and We recommend that you check out the TANDBERG web site regularly for updated telephone calls as well as video conferences with up to 4 versions of this manual: video calls and 3 telephone calls (this is called MultiSite). http://www.tandberg.net/support/ documentation.php This section of the User Guide outlines the call handling procedures and features. Please observe that some topics covered apply to point-to- point call handling only, while others apply to MultiSite call handling only. In addition some apply to both situations. These are all covered in this section. -
Page 25: Access Codes
This will then become a system that acts as forced billing. Access Codes can be up to 16 characters long. The Access Codes feature is activated in the Security Settings menu of the Con- trol Panel. The activation/deactivation of the feature may be password protected by your System Administrator. If in doubt, consult your System Administrator. D 13954.01 JUNE 2006 Making Calls when Prompted for an Access Code Prepare to make a call When prompted for an Access Code, – by dialling manually enter the code using the Numerical – by using the phone book keypad, which now will be set to ABC mode automatically. TANDBERG 1700 USER GUIDE Proceed with your calling as described throughout this section of the User Guide. -
Page 26: Making Point-To-Point Video & Telephone Calls Manually
• Press the green Call key on the remote control. Snapshot Touch tones Making Telephone Calls Manually Do as described above for a video call, but make sure Telephone Call is selected. D 13954.01 JUNE 2006 Making Video Calls Manually Make sure Video Call is selected (as shown here). If not, see below for details. Call icon and press OK TANDBERG 1700 USER GUIDE Enter the dial number manually using the Numerical Keypad. When dialling manually, observe the guidelines given in Numerical Keypad Features. Use as separator in IP addresses. If a system is registered on a gatekeeper or border controller with DNS support, there are several ways to call into the system: • <IP address> • <E.164> •... -
Page 27: Making Point-To-Point Calls Using The Phone Book
) on the remote control, Presets or... press the Left Arrow key to select the Call Now icon, Snapshot Touch tones followed by OK or... just hit the OK key whilst the entry is selected. TANDBERG 1700 USER GUIDE System Asks for Access Code? See Access Codes for details! Use the Cursor keys to navigate in the list. Any entry with an arrow appended is expandable using the Arrow keys. Navigate in the expanded list using the Arrow keys as usual. You may key in letters to navigate in the list – see also Phone Book Features for details on the use of the Phone Book. The name of the selected entry will now appear on the screen. Call settings will be set as specified with this particular entry. ... -
Page 28: Making Calls With Two Parties At The Same Time
You may switch between the two parties you have called by navigating to the lowermost line in the main menu as shown in the Figs. to the right. To switch between the two parties, use the Suspended menu line at the bottom of the screen. This line contains the number of the party currently Suspended. The features described here applies to systems without the optional Multi- Site feature installed. Note! The presence of MultiSite will disable these features. D 13954.01 JUNE 2006 Calling Two Parties Simultaneously Call the second party manually or by means of the phone book in the Call from the menu. usual manner. Observe that this must also be an H.323 or a SIP call. To end any or both of the calls, click the End Call control. You will have the option of navigating to any of the numbers called to terminate that call or to press the End Call both calls simultaneously. TANDBERG 1700 USER GUIDE button on the remote again to terminate... -
Page 29: Transfer Of A Sip Call
Unattended transfer takes place when you transfer a call to someone else without already being in a video call with that party. Call Transfer applies to SIP calls only! The features described here applies to sys- tems without the optional MultiSite feature installed. Note! The presence of MultiSite will disable these features. D 13954.01 JUNE 2006 Call two parties at the same time as outlined on the previous page. Both calls must be of SIP type. Call two parties at the same time as outlined on the previous page. Both calls must be of SIP type. Consultative Transfer To connect the two parties together, thereby disconnecting yourself, click OK to display the Calll menu (which now will have a slightly different look), navigate down to the Transfer Unattended Transfer To connect the two parties together, navigate down to the Transfer Call icon and click OK. The two will be connected and you will be disconnected. TANDBERG 1700 USER GUIDE Call icon, and click OK. -
Page 30: Multisite Conferences - Adding Calls
Consult your administrator or your TANDBERG repre- sentative for details. Tip! MultiSite is an optional feature of this system. The MultiSite feature is, however, available as retro- fit to your system. Consult your administrator Select this icon and click OK or your TANDBERG repre- to open the Phone Book. sentative for details. D 13954.01 JUNE 2006 Adding Calls Call from the menu, and dial a number manually or use Close (menu) Streaming Add Another Call Make a Call To add another participant to the conference, start by selecting the Add Another Call icon and press OK. The menu will now look like this: Repeat until all participants have been called and successfully connected. A maximum of 4 video calls and 3 telephone calls can be connected simultaneously. Tip! You may use the Add Another Call icon to specify everyone to be called before you actually call them. TANDBERG 1700 USER GUIDE... -
Page 31: Altering The Call Settings
Set the Call Settings as required. are defined in Call Quality > Default Call Settings of the Control Panel. Net options Bandwidth options D 13954.01 JUNE 2006 To Alter the Call Settings Call from the menu. Camera Presets Moving up and down in the submenus. Snapshot Touch tones Navigate to Default Call Settings and click OK. If you want the new settings to be used as the new Default Call Settings, select Set Default and press OK. These settings will now be the default settings for all future manually dialled calls. Otherwise, just navigate directly to the OK icon and press OK on the remote control. TANDBERG 1700 USER GUIDE... -
Page 32: Streaming
TTL/Router Hops This is used for streaming data to limit how many routers the data should pass before it is rejected. If TTL is set to 2, data will not traverse more than 2 router hops. Password Streaming Source Auto: Enables streaming of both local and far end video. Selection of which session. site to be streamed is done using voice switching (the site that speaks is streamed). Video Rate Local: Only the local video will be streamed. Remote: Only the far end video will be streamed. Local and far end audio is always streamed. Press Start Streaming from the menu line. An indicator appears on- screen when streaming is activated. TANDBERG 1700 USER GUIDE Press Stop Stream- ing to end streaming. Streaming will also end when you discon- nect the call. -
Page 33: Answering An Incoming Call
Snapshot Snapshot Touch tones Touch tones To Reject an Incoming Call • Select the Reject icon and press the OK button on the remote control. • Press the End Call button on the remote control. TANDBERG 1700 USER GUIDE Using Do Not Disturb There is a Do Not Disturb function available on your system. When set to on, all incoming calls are blocked from your system. Use the feature as follows: Outside a call, press the red Call Reject key ( ). -
Page 34: Ending An Ongoing Call
• Press the End ) on the remote control. Call button ( • Presets Press the OK/Menu button on the remote control to display the menu. This will produce the End Call dialogue box: Snapshot Touch tones Use either of the below methods: • Press the End Call button ( ) on the remote control again. • Presets Press the OK/Menu button to confirm that the call is to be ended. Ending a MultiSite call can only be Tip! Snapshot Touch tones done by the host. The other parties can disconnect themselves from the conference at any time, but they have no influence on the rest of the conference. TANDBERG 1700 USER GUIDE To end one or a few of the calls in a Tip! MultiSite Meeting navigate to the name of the call to be terminated and terminate the call as if it were a point-to-point call. -
Page 35: D 13954.01 June
Navigate in the menu in the usual manner: • Use Vertical Arrow keys to move up and down in the menu. • Press OK or use the Right Arrow key to expand items with an arrow appended. Level TANDBERG 1700 USER GUIDE Call Log Options Let us consider an expanded log of Missed Calls as an example. The Placed Calls log and the Received Calls log are exactly similar – with identical features. Expand Missed Calls as explained in the Call Log frame to the left. Navigate in the menu in the usual manner: •... -
Page 36: Searching In The Phone Book
D 13954.01 JUNE 2006 Searching in the Phone Book In the Phone Book use the Cursor Press OK to open the Search dialogue keys to move to the Task column and box: then down to the Search icon. Use the Arrow keys to move to the To dial the selected entry, move the requested entry, if needed. cursor to the green Call Now and press OK. TANDBERG 1700 USER GUIDE Enter the search string (the name) and press the OK key or move down to the OK icon and press the OK key. (To leave the menu cancelling your search, press Cancel or move down to the Cancel icon and press OK). Tip! When a search in the Phone Book is made by means of the Search function, icon contacts matching the search text are displayed only. Navigate to, and click on, the Up one Level icon ( ) to return to the alphabetical list. -
Page 37: Adding New Contacts To The Phone Book
Navigate one line down and enter the Navigate further down to alter the number of the new contact. default settings of Call Type, Net and Bandwidth, if needed If in doubt, consult your system admin- istrator. Adding a New Contact Directly from the Call Log Use the Arrow keys to navigate down to Press OK to produce the contents of My Contacts. Contacts. TANDBERG 1700 USER GUIDE Use the Arrow keys to navigate to the Add New Contact icon. Navigate down to the bottom of the Type menu and click Ok to leave menu putting changes into effect. Or, click on Cancel to leave menu undo- ing any changes. ... -
Page 38: Editing Entries In The Phone Book
If needed, edit the number of your new con- tact by means of the number keys on the keypad (which now enters 123 mode) The maximum number length is 60 digits. Use as separator in IP addresses. To switch to ABC mode, press # for one second. Deleting a Contact in My Contacts Press OK. Use the Arrow keys to Navigate to the Task navigate down to the entry to be deleted. the Delete icon. TANDBERG 1700 Use the Arrow keys to navigate down to the entry to be edited. Alter the default setting of Call Network, and the default setting of Bandwidth, if needed. Navigate to the OK icon and press OK to save putting changes into effect or navigate to the Cancel icon to leave menu undoing any changes. Column and select Press OK. You will now be prompted to confirm your selections. Press OK to delete or Cancel to undo. -
Page 39: Creating Multisite Contacts In The Phone Book
Phone Book. My Contacts Press OK to produce the submenu. Use the Arrow keys to navigate one The cursor will now be positioned at the line down to add a participant. Any name field allowing you to enter a name participants to be added must be in the for the group. Local Phone Navigate to a participant to be included Move one line down and repeat the in the MultiSite Contact. Press OK to procedure. include. Use the Arrow keys to navigate to the and press OK. Task Column and select the MultiSite icon. Press OK to produce the Add dialogue box. Book already. Continue until all participants have been added. Exit by OK or Cancel as usual. You may include up to 4 video participants and 3 telephone particpants. TANDBERG 1700 USER GUIDE Participant... -
Page 40: Editing Multisite Contacts In The Phone Book
Contacts. Editing the Participants in a MultiSite Contact Press OK and navigate to the MultiSite Navigate to the Task Contact to be edited. down the Edit icon. Deleting a MultiSite Contact in My Contacts Press OK and navigate to the MultiSite Navigate to the Task Contact to be deleted. the Delete icon. TANDBERG 1700 Use the horizontal Arrow key to expand the entry revealing the members. Column and then Press OK and edit the in the same way as when creating a new one (previous page). Column and select Press OK. You will now be prompted to confirm your selections. Press OK to delete or Cancel to undo. USER GUIDE... -
Page 41: Video Meeting Features
Video Meeting Features Your TANDBERG 1700 MXP can do point-to-point video We recommend that you check out the TANDBERG web site regularly for updated and telephone calls as well as video conferences with up versions of this manual: to 4 video calls and 3 telephone calls (the latter is called http://www.tandberg.net/support/ MultiSite). documentation.php Some system features apply to point-to-point calls only, others apply to video conferences only, while a couple of features apply to both situations. This part of the User Guide outlines features applicable to point-to-point calls only, but also features shared by point- to-point and conferences. Features specific to video conferences are treated separately in the section MultiSite Features. -
Page 42: Features Overview
Video Meeting Features Features Overview This section of the User Guide outlines features available during a video call. Main You may set the system to show yourself emphasis has been put on features avail- (selfview), the other party, or a presenta- able in point-to-point calls only (as opposed tion. to video conference calls – also called The TANDBERG 1700 MXP can also be used MultiSite calls). However, features available as a local PC display, without letting the for both point-to-point and MultiSite are other party see what’s on your PC screen. also covered. Finally, you may also set up the system to Observe that although Screen Layout display more than one image on the screen features and Streaming indeed apply during (Picture In Picture – PIP or Picture Outside video calls, they are not described in this Picture – POP). section, but in Getting Acqainted with the System and Call Handling, respectively. For more on this, see Selfview, Local PC Display and Screen Layout. This is a feature that lets you pan, tilt, and zoom the far end camera. If far end presets are available you may access these as well, and you may also make use of any video sources that the far end may have at its disposal. This feature requires a movable camera in the far end – i.e. communication between two 1700 MXP units will not provide far end camera control. -
Page 43: Far End Camera Control - Pan, Tilt And Zoom
This feature is not accessible in MultiSite video meetings. * Far End Presets are described on the following page. D 13954.01 JUNE 2006 Panning, Tilting, and Zooming the Far End Camera During a video meeting, press OK to produce the menu and navigate to the Camera Control icon. Navigate to the Camera Control icon. Use the Arrow keys to pan and tilt the far end camera and Zoom + and Zoom Press OK to exit this mode and navigate to the Back icon and click OK to exit the Camera TANDBERG 1700 Press OK to display the menu and navigate to the Far Press OK to enable Far End Camera Control. Observe the four triangles indicating your control options. – to zoom in and out. Control mode as such. USER GUIDE End tab. -
Page 44: Far End Camera Control - Using Far End Camera Presets
About Camera Presets The far end may use camera presets to easily vary be- tween predefined camera angles in their own end. Thus they eliminate the need to move their camera about in a manual way. Your 1700 XP may get access to these settings. If no presets have been stored and you try to access far end presets nothing will happen. Navigate to the Display Presets icon. D 13954.01 JUNE 2006 Using the Far End Preset During a video meeting, press OK to produce the menu and navigate to the Camera Control icon. Press OK to enter the Presets menu. Navigate to the preset required and press OK again to utilize. TANDBERG 1700 USER GUIDE Press OK to display the menu and navigate to the Far End tab. A total of 15 (numbered 0–14) Far End Presets are available. To access Presets 7–1 navigate to More Camera Presets and click OK. To exit this mode select Back and click OK in the usual manner. -
Page 45: Presentation
Tip! The default presentation source can be permanently changed in Presentation Settings. Tip! In a call, dual video stream is needed to see the participants and the presenta- tion simultaneously – see the next page for details. D 13954.01 JUNE 2006 Running a Presentation Connect the device to act as a source Make your source selection, press OK for the presentation (PC, DVD, VCR) and start your presentation. to the system and select Presentation from the menu, followed by OK. Alternatively, press the Presentation Camera PC/DVD/VCR key on the remote control for one second. The green circle indicates the default setting. Presets Snapshot Touch tones TANDBERG 1700 Press the Presentation key again to end the presentation and go back to main camera. Back USER GUIDE... -
Page 46: Dual Video Stream
Running a Presentation Using Dual Video Stream The Presentation menu will now be Connect the device to act as a source displayed. for the presentation (PC, DVD, VCR) to the system, and select Presentation Make sure the DuoVideo tab is from the menu, followed by OK. selected (as shown here) and navigate to the source whose contents is to be sent as dual stream. Alternatively, press the Presentation You are free to choose whether the dual key on the remote control for one stream (the other stream) shall be your second. camera or your presentation – see the previous page for more on this. Example of dual stream in a MultiSite meet- Presets ing with three participants and a presenta- tion Snapshot Touch tones TANDBERG 1700MXP USER GUIDE End the Dual Stream presentation by pressing Presentation key again. Dual video stream activated is indicated by this icon:... -
Page 47: Snapshots
In a call click OK to produce the menu line, if needed, and navigate to the Presentation icon. Taking a Snapshot Using the Menu Click OK to display the Presentation menu. Navigate to Snapshot tab and then down to the icon. Click OK to take a snapshot and send it to the far end. Displaying a Snapshot Do as above, but select Display OK to display the snapshot. TANDBERG 1700MXP USER GUIDE Take New Snapshot Snapshot instead. Click... -
Page 48: Gaining Access To The Far End Video Sources
If you set the screen to display both parties you will see what the other party sees, since both incoming and outgoing video are displayed on your screen. D 13954.01 JUNE 2006 Far End Video Options As an example let us assume that your system is connected in a point-to-point video call to a large TANDBERG video system with many inputs. You may then have several options: Far end main Auxiliary Document VCR/DVD camera input camera Accessing the Far End Video Sources In a call click OK to produce the menu line, if needed, and navigate to the Presentation icon. Make your input selection and press OK to have the selected input shown on your screen. TANDBERG 1700 Back Click OK to display the Presentation menu and navigate to the Far End Video tab. USER GUIDE... -
Page 49: Text Chat
Text Chat About Text Chatting You may use your 1700MXP to send and receive text mes- sages using the chatting function available. All you need is to select the Text Chat function and use the keypad as you would when sending text messages (SMS) using your cellular phone. supports text NOTE! This will not work unless the far side a) chat and b) has activated that feature. Text chatting applies to point-to-point video meetings only. Tip! Once you enter Text Chat mode, the dialogue box expects alphanumerical entries via the remote control. For more on this matter, see Numerical keypad features. D 13954.01 JUNE 2006 Chatting with the Other Party In a call click OK to display the menu and navigate to Services. Press OK and start your text chatting by pressing the keys on the remote control. TANDBERG 1700MXP USER GUIDE Click OK and navigate to Text Chat. Press OK to end the chat and return to the Services menu. -
Page 50: Multisite Features
MultiSite Features The TANDBERG 1700 MXP can handle up to 4 IP video calls We recommend that you check out the TANDBERG web site regularly for updated and 3 IP telephone calls simultaneously. To be able to do versions of this manual: this, the 1700 MXP has a built-in MCU (Multipoint Control http://www.tandberg.net/support/ Unit) called MultiSite. This feature turns your TANDBERG documentation.php 1700 MXP into a true video conferencing system. This part of the User Guide outlines features specific to video conferencing. -
Page 51: Video Meetings With Several Participants - An Overview
If your system is the one connected to all the other systems, you will be the host of the meeting and you will also be able to assign the floor to others. D 13954.01 JUNE 2006 Example of a MultiSite conference with 4 video calls and 3 telephone calls. The host is shown in colour. Terminal Names You may want to see a list of all the participants in a MultiSite video meeting. For this purpose there is a list of the terminal names available. Split Screen and Voice Switching In order to be able to see all the particiapnts all the time, the screen may be set in Split Screen mode, dividing the screen into several images. Voice switching will give priority to the participant speaking loudest. TANDBERG 1700 USER GUIDE Layout When you are the host of a MultiSite video meeting, you have control of the main conference image layout. The layout chosen by you is transmitted to the other participants as a single image and its layout cannot be changed by them. However, they may configure their own screen using the Layout button on the Remote Control. Their choices are the image you send out in full screen, or as side-by-side – your image and their self view. Tip! Presentation and Dual Video Stream are not constrained to point-to-point calls, so they work even here. See Presenta- tion and Dual Video Stream for details. -
Page 52: Request And Release Floor
Floor is useful when you want to speak or display something in front of all participants. Click Release Floor when you are done and make the floor available for other parties in the confer- ence. An indicator appears in the upper right corner when you have floor and disappears when you release floor, see the far right screenshot below. In a MultiSite call (a video meeting) click OK to display the menu and navigate to Services. D 13954.01 JUNE 2006 Automatic Full Screen When Requesting Floor You may set up the system to switch to full screen each time someone requests the floor. This is done in the Control Panel – see Floor to Full Screen in Settings > Video. Note that the settings may be password protected by your system administrator. Requesting and Releasing Floor Click OK to enter the submenu and navigate to Request Floor. TANDBERG 1700 USER GUIDE Click OK to have your video broadcasted as the large picture. Observe that the icon changes name to Release Floor. Click on the Release Floor icon when you are done. You have the Floor. -
Page 53: Assign Floor
MultiSite Features Assign Floor About Assigning Floor If your system is the one connected to all the other systems, you will be the host of the meeting and you will be able to assign the floor to others. If two systems both supporting MultiSite both have established a MultiSite call and one of these call the other, cascading will take place. This means that you may have more participants in total than a single system supports. In this case, the host will be the one calling the other. In a MultiSite call (a video meeting) click OK to display the menu and navigate to Services. D 13954.01 JUNE 2006 Automatic Full Screen When Requesting Floor You may set up the system to switch to full screen each time someone requests the floor. This is done in the Control Panel – see Floor to Full Screen in Settings > Video. Note that the settings may be password protected by your system administrator. Assigning Floor Click OK to enter the submenu and navigate to Assign Floor. TANDBERG 1700 USER GUIDE Click OK to display a list of the meeting participants. Navigate to the person to whom you will assign floor and click OK. The floor will now be assigned to that participant. -
Page 54: Terminal Names
MultiSite Features Terminal Names About Terminal Names You may want to see a list of all the participants in a MultiSite video meeting. For this purpose there is a list of the terminal names available. In a MultiSite call (a video meeting) click OK to display the menu and navigate to Services. D 13954.01 JUNE 2006 Displaying Terminal Names Click OK to enter the submenu and navigate to Terminal Names. TANDBERG 1700 USER GUIDE Click OK to display a list of the meeting participants. Select Back and click OK to exit in the usual manner. -
Page 55: Layout
However, they may configure their own screen using the Layout button on the Remote Control. Their choices are the image you send out in full screen or as side-by-side: your image and their selfview. In a MultiSite call (a video meeting) click OK to display the menu and navigate to Services. D 13954.01 JUNE 2006 The Layout Options Available Auto Split will give you the -split divides the best screen layout given the screen into four images number of participants. of equal size. Setting Display Layout Click OK to enter the submenu and navigate to Layout. TANDBERG 1700 USER GUIDE 5+1 provides 1 large Voice switched will cause the and 4 smaller images. participant speaking loudest to get the floor in full screen. Click OK to enter the Layout options menu. Details on the Layout options are found above. -
Page 56: Control Panel
Control Panel In order to provide you with the expected high level of We recommend that you check out the TANDBERG web site regularly for updated TANDBERG video conferencing quality, the unit needs to be versions of this manual: configured properly. http://www.tandberg.net/support/ documentation.php This section explains the details of the Control Panel. Please observe that the Settings may be password protected. A password will then be needed to gain access to the settings described in this section. -
Page 57: The Remote Control
The Remote Control turns your microphone on and off. MIC OFF Press OK/MENU to show the menu and select menu items. VOLUME + and – adjusts the volume. LAYOUT KEY toggles between full screen and different display layouts. Press the CALL key to place a call. PRESETS Not used. The ALPHANUMERICAL KEYPAD functions in the same manner as a cellular phone. SNAPSHOT takes a snapshot, but only during a call. D 13954.01 MAY 2006 TANDBERG 1700 USER GUIDE PRESENTATION KEY switches to a predefined presentation source. If the Presentation key is held down for 1 second then the Presentation video sources menu will appear. ARROW KEYS are used to navigate in the menus. Use ZOOM + and – to zoom the camera in and out. SELFVIEW displays your outgoing video. Press again to turn off. CANCEL takes you back one step in the menu system, i.e. to leave a menu undoing any changes. Use CANCEL to delete characters in an input field. Press and hold the CANCEL key for 1 second to close the menu. Use the END CALL key to end the current call. Pressing this key... -
Page 58: An Overview Of The Control Panel
The different parts of the Control Panel Press OK to produce the below menu. are explained on the following pages. Use the Arrow keys to move to the Control Panel and press OK. The Control Panel will now be displayed. LOST IN TRANSLATION? Click on the Phone Book icon 5 times followed by pressing the number key 1 on the remote control to reset the menu language to English. D 13954.01 MAY 2006 Control Panel settings TANDBERG 1700 USER GUIDE Back Restart (the system switches itself OFF and ON again) (discussed in Diagnostics at the end of this section) Audio Demo Diagnostics (discussed in Diagnostics at the end of this section) (discussed in Diagnostics at the end of this On-line User Guide section). -
Page 59: An Overview Of The Control Panel Settings
Control Panel An Overview of the Control Panel Settings General Settings Call Quality Settings Security Settings D 13954.01 MAY 2006 Menu Settings Network Settings TANDBERG 1700 USER GUIDE Presentation Settings Video Settings Restore Default Settings Audio Settings... -
Page 60: Password Protection Of The Control Panel Settings
Gain Access to a Password Protected Control Panel Settings Menu Use the Arrow keys of the remote You will now be prompted for a control to navigate to the Control password. Panel icon and press OK. In the Control Panel navigate to the Settings and press OK. Set a Password icon and press Navigate to the Adminstrator and key in a password (pin code). Navigate to the Save icon and press OK to leave menu, putting changes into effect. Key in the password. If the wrong pin code is entered, the mes- sage Attention Wrong menu password will appear on the screen. TANDBERG 1700 USER GUIDE Password... -
Page 61: General Settings - An Overview
(includes even languages like Norwegian, French, Polish etc.), an International Name using standard ASCII characters only, must be specified as well. If you set the language to e.g. Korean and input a System Name using Korean characters, a second line allowing you to specify the name using standard ASCII character set will appear. CANCEL Select this icon and press OK AUTO ANSWER Controls whether incoming to leave the menu undoing any calls should be let through changes. automatically or require a RESTORE DEFAULTS manual answer. Select this icon and press OK to restore the default settings. If set to automatic, you may choose to always disable your SAVE microphone when the call is Select this icon and press connected. You must then OK to leave the menu putting use the Remote Control to changes into effect. switch it back on manually to let the other side hear you. TANDBERG 1700 USER GUIDE... -
Page 62: Language
OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Moving up and Camera Presets down in menu. Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE INTERNATIONAL NAME If the System Name contains Asian and non-standard ASCII character text input (includes even languages like Norwegian, French, Polish etc.), an International Name using standard ASCII characters only, must be specified as well. If you set the language to e.g. Korean and input a System Name using Korean charac- ters, a second line allowing you to specify the name using standard ASCII character set will appear. Tip! When the Input Editor Language is set to Chinese, Korean or Japanese you... -
Page 63: System Name Settings
Guidelines: • Press the key that corresponds to the required letter. • Press the key as many times as needed to access the correct letter. • Change to lower or back to upper case letters with the key, and space with the 0 _ key. • To write numbers in a text input field, repeatedly press the corresponding key a number of times until the digit appears. INTERNATIONAL NAME If the System Name contains Asian and non-standard ASCII character text input (includes even languages like Norwegian, French, Polish etc.), an International Name using standard ASCII characters only, must be specified as well. If you set the language to e.g. Korean and input a System Name using Korean characters, the International Name field allowing you to specify the name using standard ASCII character set will appear. TANDBERG 1700 USER GUIDE Presets Presets a/A Snapshot Snapshot Touch tones Touch tones... -
Page 64: Autoanswer
Control Panel > General Settings Autoanswer CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 AUTOANSWER The autoanswer setting determines whether an incoming call is put through automatically or manually. On. The system will automatically answer all incoming calls. On+Mic Off. The system will automatically answer all incoming calls and switch the microphone off when the call is connected. Press Mic Off on the Remote Control to switch the microphone back on. Off. You must manually answer all incoming calls by pressing OK or the Call key on the Remote Control. TANDBERG 1700 USER GUIDE... -
Page 65: Phone Book Settings
Camera Presets Snapshot Touch tones What is Corporate Directory? Your system may be connected to a Directory Service or Management System such as the TANDBERG Management Suite (TMS). The Management System may then provide your video system with a phone book containing a corporate directory. This directory is con- trolled directly from the Management System and updates and changes are carried out from remote by the Mangement System Adminstrator. Note! Any contacts that you choose to copy to your lo- cal phone book (My Contacts), e.g. for use in your own predefined MultiSite Contacts, will not be updated when the Corporate directory is updated by the Mangement System Adminstrator. TANDBERG 1700 USER GUIDE CORPORATE DIRECTORY The Corporate Directory is available in the menu. Off The Corporate Directory is hidden from the menu and is unavailable for users. IP ADDRESS Enter the IP address or the DNS name of the Directory Service that provides the Phone Book. PATH The Path to the phone book of the Directory Service. -
Page 66: External Services
D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones What is External Services? In general, External Services include any HTTP and HTML based contents your Service Provider may offer. This could be stock exchange information, news, weather forecast etc. In addition, External Services may include the ability to display scheduled meetings for the video system (handy when meetings last longer than scheduled and you need to know whether, and if affirmative, when the system is booked for other meetings). TANDBERG 1700 USER GUIDE EXTERNAL SERVICES Set this to On when External Services are available. Set this to Off when External Services are unavailable. IP ADDRESS Enter the IP address or DNS name of the Service Provider Host for External Services. PATH Enter the Path to the External Services Host. The services available are defined by your service provider. -
Page 67: Permissions
Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones WHAT IS MCU? MCU is short for Multipoint Conference Unit, a device used to connect multiple audio and video sites in one or more ISDN, IP and mixed ISDN and IP video meetings. TANDBERG 1700 USER GUIDE ACCESS CODE An access code will help you control the use of the sys- tem. All users must enter a code to identify themselves when making a call and the call may then be charged on their account. Access Codes are handy for group systems where there are more users or divisions that share the costs of using the system. Access Code can be set to On and Off. More on Access codes overleaf. When making a call, an Access Code dialogue box will be shown. The user must enter the correct password in order to put the call through. No password is necessary to make a call. INCOMING MCU CALLS When you are in a call, the system will provide visual and audible indications of additional incoming calls and ask you to accept/reject the call. -
Page 68: Access Codes
To upload access codes to the system, follow these steps: On your PC create the file to be used as a list of valid access codes and save it as access.txt Make sure your PC and your video system can communicate via IP Open a DOS-window and go to the folder where the access.txt file is located Type ftp <IP-address of your local video system>. To locate the IP address of your system, press the OK/Menu key on your TANDBERG Remote Control When system prompts for User: press Enter or key in the IP-password of your video system Type bin and press Enter Go to the user folder, type cd user Upload the access.txt file, type put access.txt Exit from ftp, type bye TANDBERG 1700 USER GUIDE Access Codes Activated – How It Looks Whenever the Access Codes feature has been set to On, you will be prompted to enter a code when starting a call. The following dialogue box appears on the screen: The remote control keypad will be in ABC mode. Key in the code and press OK. Then dial your number. Tip! -
Page 69: Screen Settings
Use this setting to determine if you want your PC presenta- tions to be shown stretched in full screen, or with correct aspect ratio using part of the widescreen display. With the VGA Out Quality set to Auto the presentation will be of the best possible quality supported by the monitor. Normal is 4:3 format, Wide is 16:9 format. USE SCREEN AS LOCAL PC MONITOR Use the Selfview button of the Remote Control to switch from local PC display to standard conference layout. If Local PC Display is ON you will be able to have Local PC displayed both outside and within a call. If Local PC Display is OFF you will not be able to see a Local PC image. TANDBERG 1700 PICTURE LAYOUT The Picture Layout is related to the Layout button on the remote control and it can be used at any time to change the screen lay- out. For wide screen systems POP mode is recommended. You will get optimized picture layouts for wide screen by pressing the Layout button on the remote. Picture in Picture (PIP). Pressing the Layout button on the remote will result in an extra picture in smaller view (Picture in Picture). Press the Layout button to move it around in the corners of the screen and finally hide it. Pressing and holding Layout for 1 sec- ond will hide the small picture directly from any position. Picture outside Picture (POP). -
Page 70: Software Options
Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTART Select this icon and press OK to restart the system, putting changes into effect. TANDBERG 1700 USER GUIDE The system requires a valid option key to activate MultiSite and/or Presenter functionality. In order to activate additional bandwidth, you need to enter a bandwidth key. A restart of the system is required after entering a new option and/or bandwidth keys. If the key is invalid, the original key will be used. The following options are available: No option Presenter MultiSite + Presenter Bandwidth options... -
Page 71: Date And Time Settings
Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE NTP IP This is the NTP time server address from which the system can get updated time information. See IP Services for more details. Auto. The NTP IP address is set automatically. Manual. The NTP IP address is set manually. IP ADDRESS The IP Address or DNS name for obtaining the date and time information. TIME ZONE Select the correct time zone for the location of your system. DATE FORMAT Choose between DD/MM/YY, MM/DD/YY, or YY/MM/DD as the preferred date format. -
Page 72: Menu Settings
Menu timeout applies when you are in a call only. Outside a call, there is no menu timeout. OFF. The menu will not disappear automati- cally. Press Cancel manually. BALLOON HELP Used to enable/disable the balloon help window. ON. Enables help text windows to appear. OFF. There will be no help text window. AUTOCOMPLETE When keying in whom to dial, activating Autocomplete will cause the system to complete your input for you based on what is already in your Phone Book. on the TANDBERG 1700 USER GUIDE Call to ON if to hide the main menu... -
Page 73: Kiosk Mode Settings
AVAILABLE LANGUAGES In Kiosk Mode the system supports 7 different languages for its simplified on-screen menu; English, German, French, Norwegian, Swedish, Italian, and Spanish. Select the preferred language. PHONE BOOK Defines whether to use Local Phone Book or Corporate Directory. The latter opens up for remote phone direc- tory upgrades. KIOSK MENU Whether the simplified menu shall be shown or not. Tip! GETTING OUT OF KIOSK MODE AGAIN. To get out of the Kiosk Mode, you need to hook the unit up to a PC via the serial port, open a telnet session and use the command: xConfiguration Kiosk Mode: <On/Off> For more on this, see the TANDBERG MXP Codec Reference Manual for System Integrators, which can be downloaded from our web site: http://www.tandberg.net/support/documentation. php?p=Application_Programmer_Interfaces... -
Page 74: Startup Settings
WELCOME TEXT You can change the welcome text to any text you like, instead of the default text. Please observe that Display Welcome Text must be ON to be able to edit the welcome text. DISPLAY WELCOME TEXT The welcome text displays your system name and dial in numbers by default. It is possible to hide this information by choosing Display Welcome Text Off. Set to ON to have Welcome text displayed on the welcome menu and set to OFF to have no Welcome text dis- played on the welcome menu. TANDBERG 1700 USER GUIDE WELCOME MENU The Welcome Menu contains the Main Menu, System Status, your System Name and dial-in numbers. Set to ON to produce the Welcome Menu when the system wakes up from standby mode. Set to OFF to disable the Welcome Menu when the system wakes up from standby mode. Press the OK button to open the Wel- come Menu. -
Page 75: Icons
Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Note! Icons set to Off will not appear! TANDBERG 1700 USER GUIDE MICROPHONE OFF This indicator is shown when the micro- phone is turned off. Press the Mic off but- ton again to turn the microphone back on. VOLUME OFF This indicator is shown when the volume is turned off. Press Volume + to turn the volume back on. ON AIR When you have the floor in a multisite conference this is indicated by the On Air icon. -
Page 76: Presentation Settings - An Overview
Manual means that you manually choose if you want to start Dual Stream or not every time you start a presentation. CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE H.23 Supports transmission of two video streams. It combines elements of Duo Video and People+Content. If H.239 is disabled you will still be able to start TANDBERG Dual Video Stream. CALL VIDEO SOURCE Default video source used in a call. PRESENTATION SOURCE The Presentation Source is connected to the pres- entation button on the Remote Control. Pressing the Presentation button on the Remote Control will put the Presentation Source on display. Pres- entation Source is PC by default. -
Page 77: Presentation Start / H23 Enabling
Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 PRESENTATION START Your system has optional Dual Video Stream capabilities, which means that you can show two video streams simultaneously. Presentation Start is Auto by default. This means that you will start Dual Stream (a second video stream) automatically when starting a presentation. Dual Stream requires the Presenter Op- tion and H.263 video. To check which options are installed, see the System Information menu. Manual means that you manually choose to start Dual Stream or not every time you start a presentation. To utilize, do as follows: Auto causes Dual Video Stream to start automatically when you start a presentation (i.e. when you choose a second video source). If your system or the far end system cannot handle Duo Video/ H.239, you will not be using Dual Video Stream, but rather send the presentation source as your Main Video. Manual. When starting a presentation, select Presentation in the call menu and select StartPresentation. Choose a video source from the list displayed on the screen. H.23 H.239 supports transmission of two video streams. It combines elements of Duo Video and People+Content. If H.239 is disabled you will still be able to start TANDBERG Dual Video Stream. Enabled. Enables H.239 Disabled. Disables H.239 TANDBERG 1700 USER GUIDE... -
Page 78: Call Video Source
Moving up and Camera Presets automatically change to Main down in menu. the system will also automatically change to Main Snapshot Touch tones preventing the caller from seeing your PC image. You can change Call Video Source to Main or Current. Choosing Current will result in the last used video source. Camera Presets Snapshot Touch tones TANDBERG 1700 Source is the default video source you would Camera every time you Why you should set Call Video Source to Main Camera: Camera. Once you receive a call, Camera, Camera, PC, VNC, USER GUIDE... -
Page 79: Presentation Source
SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones PRESENTATION SOURCE The Presentation button on the Remote Control. Pressing the Presentation but- ton will put the Presentation Source on display. Presentation Source is PC by default*. You can change the Presentation Source to any video source or None. Choosing None results in opening the Presentation menu when pressing the Presentation key on the Remote Moving up and Camera Presets Control. down in menu. * Only for systems with the PC video input available. Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE Source is connected to the Presentation... -
Page 80: Snapshot Source
SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones SNAPSHOT SOURCE When you take a snapshot, this will be from the Snapshot Source. Current is the default Snapshot that you take a snapshot of the video source that is currently active. You can change the Snapshot Moving up and this way you can assign the Snapshot key to apply only to PC Camera Presets down in menu. for instance. Press Snapshot and you will get a PC snapshot regardless of what video source that is currently active. Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE Source. This means Source to any video source. In... -
Page 81: Auto-Display Snapshot
Control Panel > Presentation Settings Auto-Display Snapshot CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 AUTO-DISPLAY SNAPSHOT Select Auto to automatically display a received snapshot. Set Auto-Display Snapshot to Manual if you wish not to have them displayed on the screen when they are sent or received. The snapshots will be sent and received, but not displayed. With Auto-Display Snapshot set to Manual, you must enter the Pres- entation menu to display a snapshot. Auto. A sent or received snapshot will automatically be dis- played on the screen. This is the default setting. Manual. A sent or received snapshot will not be displayed on the screen. To see the snapshot, choose Display the Presentation menu. TANDBERG 1700 USER GUIDE Snapshot in... -
Page 82: Pip Placing
OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Navigating Camera Presets in the menu. Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 A Picture in Picture (PIP) is a smaller picture placed in one of the corners of the screen. The PIP enables you to see an extra picture in your video conference. A picture in picture can be nice when you use Dual Video Stream and you need an extra window to see all the pictures. You can, of course, show or hide the PIP with the Layout button on the remote at any time. PIP PLACING This lets you decide where the PIP shall appear. You can, of course, move the PIP with the Layout button on the Remote Control at any time. Right PIP is placed in the Top Right corner. Bottom Right PIP is placed in the Bottom Right corner. -
Page 83: Vnc Settings
VNC Settings CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE VNC SETTINGS VNC Settings is necessary when using a VNC presentation. See PC Soft Presenter and VNC for more information on how to use VNC. ADDRESS The IP-address of the PC with the VNC software installed. To find the IP-address of the PC, place the mouse pointer on the VNC program icon in the lower right corner of the Windows taskbar. You can also select Command Prompt from the Startup-menu > Run and type cmd then ENTER. This will open a command window and from here type ipconfig and press ENTER. -
Page 84: Pc Softpresenter And Vnc
MAY 2006 Configuring the VNC Server Software: Select the following to setup VNC; Windows-Start\All Pro- grams\Highlight RealVNC\Hightlight VNC Server\Show User Properties Select Accept Socket Connections. Select Auto for Display Number. Display Number in the sys- tem must then have the value 0. Enter a password in the Password-field. This must corre- spond with the VNC Settings on your system. TANDBERG 1700 USER GUIDE Showing PC Contents Using the PC Soft Presenter & VNC Start the VNC software on your PC. To use VNC, you must configure VNC Settings. Open VNC Settings in the Presentation Settings menu (see previous page for details). Fill in the IP address of your PC, Display Number and Pass- word. -
Page 85: Call Quality Settings - An Overview
VIDEO ALGORITHM The system will automatically select the best video algorithm based on the video source and the capabili- ties of the remote system. Use this menu to disable video algorithms in case you have interoperability issues calling other systems. CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE AAC-LD 128 Specify a call rate for 128kbps AAC-LD. From this call rate and above, “128kbps AAC-LD” is available. On lower call rates “64kbps AAC- LD” is available. NATURAL VIDEO Choosing Natural Video will enable 60 fields per second true interlaced picture for high mo- tion video. The use of Natural Video requires the H.263+ and H.263++ video protocols. Natural video will be disabled in H.323 Multi- Site calls and in H.320 Continuous Presence MultiSite calls. Recommended setting is Auto. -
Page 86: Video Algorithm
Control Panel > Call Quality Settings Video Algorithm CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 VIDEO ALGORITHM The system will automatically select the best video algorithm based on the video source and the capabilities of the remote system. Use this menu to disable video algorithms in case you have interoperability issues when calling other systems. H.21 Legacy video compression and decompression. The system will always have H.261 enabled. Consequently, there is no way of unchecking H.261. H.23 Normal video compression and decompression. H.2 Bandwidth efficient video compression and decompression TANDBERG 1700 USER GUIDE... -
Page 87: Audio Algorithm
Automatically preferred audio algorithms on Automatically preferred audio algorithms on call rates up to and including 12kbps call rates above 12kbps 1. G.722.1 (24kbps or 32kbps) 1. AAC-LD (128kbps)*** 2. G.728 (16kbps) 2. AAC-LD (64kbps or 56kbps) 3. AAC-LD (64kbps or 56kbps) 3. G.722 (64kbps, 56kbps or 48kbps)* 4. G.722 (56kbps, 64kbps or 48kbps)* 4. G.722.1 (32kbps or 24kbps) 5. G.711 (64kbps, 56kbps or 48kbps)** 5. G.728 (16kbps) 6. AAC-LD (48kbps or 128kbps) 6. G.711 (64kbps, 56kbps, 48kbps)** 7. AAC-LD (48kbps or 128kbps) * G.722 at 64kbps is used in H.323 (IP) calls only. ** G.711 at 64kbps is used in SIP and H.323 (IP) calls only. *** Dependent on a call rate above the AAC-LD 128 threshold. Note that this is not available on all TANDBERG systems. TANDBERG 1700 USER GUIDE... -
Page 88: Aac-Ld 128 Kbps (Stereo Audio)
D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Moving up and Camera Presets down in menu. Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE AAC-LD 128 KBPS (STEREO AUDIO) Specify a call rate for 128 kbps AAC-LD. From this call rate and above, “128 kbps AAC-LD” is available. On lower call rates “64kbps AAC-LD” is available. Stereo audio requires twice the bandwidth as mono CD- quality audio. We therefore recommend to enable stereo audio on high call rates only. To enable stereo CD-qual- ity audio you need to specify a call rate for when stereo automatically should be enabled. On lower call rates, mono CD-quality audio “64kbps AAC-LD” will be enabled. Stereo audio can be received and listened to from e.g. a VCR or DVD. However, only when the microphone has been set to... -
Page 89: Natural Video
D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Moving up and Camera Presets down in menu. Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE NATURAL VIDEO Choosing Natural Video will enable 60 fields* per second true interlaced picture for high motion video. The use of Natural Video requires the H.263+ and H.263++ video protocols. Natural video will be disabled in H.323 MultiSite calls and in H.320 Continuous Presence MultiSite calls. Auto Natural Video. Auto will enable transmission of Natural Video from 768 kbps and above**. Reception of Natural Video is in this case always enabled. Off Natural Video Off will disable both transmission and reception of Natural Video. -
Page 90: Maximum Upstream Rate (Kbps)
Control Panel > Call Quality Settings Maximum Upstream Rate (kbps) CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 MAX UPSTREAM RATE (kbps) The Max Upstream Rate (kbps) defines your wanted maximum transmitted call rate. In this way you may limit the outgoing bandwidth whilst keeping the maximum incoming bandwidth – a feature quite useful for home office applications with different upstream and downstream rates, typically ADSL. TANDBERG 1700 USER GUIDE... -
Page 91: Video Quality
Video Quality CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE VIDEO QUALITY Different video sources need different Video Quality Settings. Main Camera, VCR, AUX and Split Screen have Motion as default. PC, Document Camera and VNC have Sharpness as default. Auto. The system chooses the best of Motion or Sharpness depending on picture layout and bandwidth. Sharpness. Optimized for sharp video (4CIF/4SIF, SVGA, XGA, w720p). Motion. Optimized for smooth motion video (CIF/ SIF or w288p for low bandwidths, 448p/400p, Interlaced CIF (iCIF) / Interlaced SIF (iSIF) or w448p for high bandwidths). -
Page 92: About Intelligent Video Management (Ivm) On Tandberg Systems
Control Panel > Call Quality Settings > Video Quality About Intelligent Video Management (IVM) on TANDBERG Systems Intelligent Video Management (IVM) You may configure the picture sent from your TANDBERG sys- tem depending upon specific requirements and applications adding an additional level of flexibility and adaptability. Generally, the IVM will always try to transmit the format clos- est to the video input format. Each video input can be config- ured to either motion or sharpness: Motion When there is a need for higher frame rates, typically when a large number of participants are present or when there is a lot of motion in the picture. At low bit rate: • CIF will be used from a PAL video input • SIF from NTSC •... -
Page 93: Default Call Settings - An Overview
CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 Default Call Settings are connected with Call Settings in the Call Menu. If you leave Call Settings unchanged when making a call, the system will use the Default Call Settings in the call. In addition to the Call Type, Net, and Bandwidth, you also find settings for H.320 Auto bandwidth and H.323 Auto bandwidth in Default Call Settings. USER GUIDE... -
Page 94: Default Video Call Settings
Control Panel > Call Quality Settings > Default Call Settings Default Video Call Settings CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE CALL TYPE Call Type can be set to: • Video Call • Telephone Call For MultiSite calls, Call Type enables you to specify both telephone calls and video calls in the same conference. -
Page 95: Default Net Settings
Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Tip! Wonder what System is doing here? System has been added by a user in the Network Profiles setup. TANDBERG 1700 NETWORK The Network alternatives are: • Auto • H.323 • If Auto is selected, the system will select the right net- work depending on the entered number: • If an IP-address (e.g. 10.12.34.56 ) is entered, H.323 is selected. • If the first digits in the number match those set in H.323 Prefix, H.323 is selected. If a gatekeeper is present, it is possible to place IP-calls using “telephone style” numbers, e.g. an E.164 alias, according to the numbering plan implemented in the gatekeeper. The gatekeeper will then translate the dialled... -
Page 96: Default Bandwidth Settings
Control Panel > Call Quality Settings > Default Call Settings Default Bandwidth Settings CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 BANDWIDTH Determines the quality of the video picture. When set to Auto the system will establish a connection using a proper bandwidth for the call, typically 384 kbps for IP calls. When set to Max the system will set up the call with maximum bandwidth depending on the selected network. USER GUIDE... -
Page 97: Audio Settings - An Overview
GETTING TO THIS MENU Press OK to produce the below menu. Use the Arrow keys to move to the Control Panel and press OK. Use the Arrow keys to move to Audio Settings, if applicable. Press OK. LOST IN TRANSLATION? Click on the Phone Book icon 5 times followed by pressing the number key 1 on the remote control to reset the menu language to English. D 13954.01 MAY 2006 TANDBERG 1700 USER GUIDE LEVEL SETTINGS Lets you set the maximum levels, which later can be adjusted using the volume control. ALERT TONES AND VOLUME Lets you choose among the alert tones available and set the volume. GRAPHICAL VIEW Provides an easy overview of how inputs and outputs are connected together. -
Page 98: Level Settings
–2,4 dBu –20,4 dBu 19,5 dB 2,0 Vpp –0,9 dBu –18,9 dBu 21,0 dB 2,4 Vpp 0,6 dBu –17,4 dBu 22,5 dB 2,8 Vpp 2,1 dBu –15,9 dBu Figures shown INVERTED denote default values. TANDBERG 1700 USER GUIDE Headset input Headset Output Unbalanced Unbalanced Connector 3.5mm jack, sleeve-gnd, 3.5mm stereo jack, sleeve-gnd, (codec) tip-microphone tip-left, ring-right 2200 ohms Input is System Input (from Headset), Output is System Output (to Headset) Headset Input Levels (to System) Signal Levels... -
Page 99: Alert Tones & Volumes
Camera Presets down in menu. Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE Use the vertical Arrow keys to move up and down in the Alert tone list. Press OK to listen to the alert tone selected. To stop playing the alert tone, use the vertical Arrow keys to move away from the menu. Upon leaving the entire menu, you will be prompted to confirm any changes you may have made. ALERT VOLUME Set the volume of the Alert signals. -
Page 100: Graphical View Of Settings
The “marching ants” D 13954.01 MAY 2006 Moving up and Camera Presets down in menu. Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE The green dots indicates connection and when you play the test tone (or rather the test signal) the “marching ants” will show you the signal flow. To play a test tone navigate to any of the Inputs or Outputs and click OK. The test signal will then ap- pear at the outputs indicated. TEST TONE To verify that things actually are con- nected and work the way they claim to be connected and work, you may use any of the alert signals available, as test signal. -
Page 101: Video Settings - An Overview
D 13954.01 MAY 2006 CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE MCU STATUS LINE MultiSite / MCU / DuoVideo indicators can be displayed whenever applicable, not displayed at all, or displayed for a short time. These indicators provide information about the conference. FLOOR TO FULL SCREEN When enabled, anyone requesting floor will be seen by all participants as full screen. WEB SNAPSHOTS The system is able to generate JPEG snap- shots and provide them when requested (as ‘http get’or via ftp). MULTISITE PICTURE MODE Determines the default layout of a MultiSite call. -
Page 102: Mcu Status Line
Control Panel > Video Settings MCU Status Line CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 MCU STATUS LINE Off. The MultiSite / MCU / DuoVideo indicators will not be displayed. On. The MultiSite / MCU / DuoVideo indicators will be displayed and provide information about the conference. Auto. The MultiSite / MCU / DuoVideo indicators will be displayed for a few seconds and then timed out. When grabbing the remote control, the indica- tors will be shown again. TANDBERG 1700 USER GUIDE... -
Page 103: Floor To Full Screen
Control Panel > Video Settings Floor to Full Screen CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 FLOOR TO FULL SCREEN When Floor to Full Screen is enabled, someone who requests floor will be seen by all participants as full screen. When Floor to Full Screen is Off, someone who request floor in a MultiSite conference using the 5+1 layout will be seen in the large square, rather than full screen. Off. The participant who has the floor is displayed in the MultiSite layout that is used. On. The participant that has the floor is displayed in full screen regardless of what MultiSite layout that is used. TANDBERG 1700 USER GUIDE... -
Page 104: Web Snapshot
• event.log logs fault situations etc. • sw.pkg the system software • globdir.prm file containing up to 400 entries. These entries can not be edited from the system, but can be edited as a text-file. Files accessible only by ftp get /tmp/snapshots/xxx.jpg or http://<IP-address of system>/tmp/snapshots/xxx.jpg: • site0.jpg Snapshot of current stream if MultiSite. • main.jpg Snapshot of selfview. • site1.jpg Snapshot of decoded stream if point-to-point. • duo.jpg Snapshot of the encoded stream if transmitting DuoVideo, the decoded stream if receiving DuoVideo. APPLYING YOUR OWN LOGO Go to the folder where your logo is located. Type ftp <IP-address of your local system> Go to the user folder, type cd user Upload the logo, type put <logo.jpg>. The new logo will be displayed the next time you restart your system. Recommended maximum size is: 704 × 576, file format: jpg. If the file is too large, no logo will be displayed. TANDBERG 1700 USER GUIDE Tip! Before issuing the get command you should execute the ftp command bin to enable binary transmission. If not the jpg’s will be corrupted. Tip! This can also be done using the web browser. -
Page 105: Multisite Picture Mode
OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Moving up and Camera Presets down in menu. Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 MULTISITE PICTURE MODE MultiSite Picture Mode determines the default layout of a MultiSite call. Available layouts are: • Auto Split • 4 Split • 5+1 Split • Voice Switched. You can change the layout during a call using the layout option in MultiSite Services. Auto Split displays all participants on the screen simulta- neously. A MultiSite call with 3 or 4 video participants is... -
Page 106: Video Name
Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE VIDEO NAME As a default, the video inputs are given the names Main Cam, PC, Doc Cam, VCR, AUX or VNC, dependent on what video sources are available on your system. You may change these to your liking. Note, however, that the video names cannot exceed eight characters. The names correspond to the video names in the Pres- entation Menu (Main Menu > Presentation > Main Video or Presentation Video pop up menu). If video names are changed, you will see the changed name appear in the Main Video and Presentation Video... -
Page 107: Security Settings - An Overview
Book icon 5 times followed by pressing the number key 1 on the remote control to reset the menu language to English. D 13954.01 MAY 2006 CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE ENCRYPTION Provided that all parties participating have equipment supporting encryption, video meet- ings may be set up using encrypted commu- nication. ENCRYPTION MODE Lets you choose between AES, DES, or have the system itself find the mode that all parties support. PASSWORDS Administrator Password, IP Access Password, Streaming Password, VNC Password,and Ac- cess Code are duplicated from their respective menus. Using the Security... -
Page 108: Encryption
ENCRYPTION (Country specific) Off. The system will not send or receive encrypted data. On. The system will only send and receive encrypted data. The call will not be established if not all participants support encryption. Auto. The system will try to set up calls using encryption. • Point to point calls: If the far end system supports encryption (AES or DES), the call will be encrypted. If not, the call will proceed without encryption. • MultiSite calls*: In order to have encrypted MultiSite calls, all sites must support encryption. The padlock symbol will indicate encryption mode (AES or DES). If there is a mix of AES and DES encryption, only the symbol for DES encryption (single padlock) will be displayed. The ‘closed padlock’ will only be displayed on each site when all links in the MultiSite conference are encrypted. See Icons for a presentation of the icons. Technical encryption information like encryption algorithm and encryption check code used can be found in the Call Status menu. * Only available on systems with MultiSite option supported and installed. ENCRYPTION MODE Auto. The system will try to use the most secure encryption – AES – depending on the capabilities of the other sites. For sites that fail to support AES encryp- tion, DES encryption will be tried. DES. The system will try to set up the call using DES with 56 bits encryption. If none of the other sites do support DES, no other type of encryption will be initi- ated. AES. The system will try to use AES with 128 bits encryption when setting up calls. If AES is not supported by the other site(s), no other type of encryption will be initiated. Both AES and DES encrypted sites can be connected at the same time. TANDBERG 1700 USER GUIDE... -
Page 109: Network Settings - An Overview
Control Panel and press OK. Use the Arrow keys to move to Network Settings, if applicable. Press OK. LOST IN TRANSLATION? Click on the Phone Book icon 5 times followed by pressing the number key 1 on the remote control to reset the menu language to English. D 13954.01 MAY 2006 CANCEL Select this icon and press OK to leave the menu undoing any changes. TANDBERG 1700 USER GUIDE LAN SETTINGS The LAN settings contain: • IP Settings • H.323 Settings • SIP Settings • Wireless LAN Settings • SNMP Settings • IP Services • Quality of Service •... -
Page 110: Ip Settings (I)
Snapshot Touch tones Lower part of the menu is explained overleaf. CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE & RESTART Select this icon and press OK to leave the menu restarting the system to put IP Setting changes into effect. TANDBERG 1700 USER GUIDE IP SETTINGS Remember to restart the system after making changes to IP Settings. Click on the Save & Restart button to do this. Changes in IP Settings menu will have no effect until the system is restarted. IP PROTOCOL IPv. IP version 4 supported. IPv. IP version 6 supported. IP Address, IP Sub- net Mask, and Gateway will be disabled. Both. Both IP version 4 and IP version 6 sup- ported. IP-ASSIGNMENT DHCP (Dynamic Host Configuration Protocol) can be selected when a DHCP server is present. -
Page 111: Ip Settings (Ii)
CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE & RESTART Select this icon and press OK to leave the menu restarting the system to put IP Setting changes into effect. TANDBERG 1700 ETHERNET SPEED Auto. The codec will auto-detect the speed/du- plex on the LAN. 10/Half. The codec will connect to the LAN using 10Mbps speed / Half Duplex. 10/Full. 10 Mbps speed / Full Duplex. 100/Half. 100 Mbps speed / Half Duplex. 100/Full. 100 Mbps speed / Full Duplex. IP ACCESS PASSWORD By setting an IP Access Password on the sys- tem, all access to the system using IP (Telnet, FTP and WEB) requires a password. The default IP Access Password is “TANDBERG”. -
Page 112: Settings (I)
Camera Presets Snapshot Touch tones Lower part of the menu is explained on the following pages. CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE E.1 ALIAS This is the E.164 address of the system. The E.164 address is equivalent to a telephone number, sometimes combined with access codes. Valid characters are 0–, and #. When using a gatekeeper, the system will send a message to the gatekeeper containing both the E.164 address and the H.323 ID of the system. H.323 ID The H.323 ID of the system may be specified here. The System name is used if no H.323 ID is entered. H.323 CALL SETUP Direct. An IP-address must be dialled in order... -
Page 113: H.323 Settings (Ii) - Gatekeeper Settings
Touch tones The rest of the lower part of the menu is Camera Presets explained on the following pages. Snapshot CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 GATEKEEPER IP ADDRESS This is the gatekeeper IP-ad- dress that is used if you specify H.323 Call Setup: Gatekeeper and Gatekeeper Discovery: Manual. AUTHENTICATION MODE specified manually. Auto. If Authentication Mode is set to Auto and the gate- keeper indicates that it requires authentication, the endpoint will automatically try to authenticate itself to the Gatekeeper. Off. If Authentication Mode is set to Off the system will not try... -
Page 114: H.323 Settings (Iii) - Callmanager Settings
Snapshot Touch tones D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones The rest of the lower part of the menu is explained on the following pages. Camera Presets Snapshot CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 CALLMANAGER IP This is the CallManager IP-address that is used if you specify H.323 Call Setup: CallManager. Touch tones USER GUIDE... -
Page 115: H.323 Settings (Iv) - Advanced Nat Settings
WAN. Camera Presets Snapshot Touch tones The upper part of the menu is explained on the preceding pages. CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE NAT ADDRESS This must be the external/glo- bal IP-address to the router with NAT support. Packets sent to the router will then be routed to the system. In the router, the following ports must be routed to the system’s IP-address: • Port 1720 • Port 5555-5560 • Port 2326-2365 Please contact your TANDBERG representative for further infor- mation. -
Page 116: Sip Settings (I)
Touch tones Lower part of the menu is explained on the following pages. CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE & RESTART Select this icon and press OK to leave the menu restarting the system to put IP Setting changes into effect. TANDBERG 1700 USER GUIDE MODE On. Setting the SIP mode to on will enable the system for incoming and outgoing SIP calls. Off. Setting the SIP mode to off will disable in- coming and outgoing SIP calls from the system. DISPLAY NAME The Display name part of the SIP Address (URI) is usually a full name or system name. Examples: “Alice Wonderland” “System 01” SIP ADDRESS The SIP Address is the SIP URI used to address the system. Examples: “alice@example.com” “1234” “1234@example.com” SERVER DISCOVERY Auto. When selected, the SIP Server address... -
Page 117: Sip Settings (Ii)
Control Panel > Network Settings > LAN Settings SIP Settings (II) Camera Presets Snapshot Touch tones See the previous page for an explanation. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones Upper part of the menu is explained on the preceding page. TANDBERG 1700 USER GUIDE Current RFC’s and Drafts supported: RFC 1889 RTP: A Transport Protocol for Real-Time Applications RFC 2327 SDP: Session Description Protocol RFC 2396 Uniform Resource Identifiers (URI): Generic Syntax RFC 2617 Digest Authentication RFC 2782 DNS RR for specifying the location of services (DNS SRV) RFC 2976 The SIP INFO Method RFC 3261 SIP: Session Initiation Protocol RFC 3262 Reliability of Provisional Responses in SIP RFC 3263 Locating SIP Servers RFC 3264 An Offer/Answer Model with SDP... -
Page 118: Wireless Lan Settings
USE KEY Select which of the keys shown below you want to use. KEY 1- The 64-bit keys can consist of a leading star (*) and 5 characters. The 128-bit key can consist of a leading star (*) and 13 characters. Start with a * and then the text. Example: 128 bit key: *secretkeyhome. Encryption using Hex numbers The 64-bit keys can consist of 10 hexadecimal digits. Example: “de01ad4dbe”. The 128-bit key can consist of 26 hex numbers. TANDBERG 1700 USER GUIDE SSID (Service Set Identification) Example “WLANNETWORK”. Defines a local network id for this wireless region. It must be the same for all end points and the access point. An endpoint will find the access point if the SSID is correct, however if the encryption key is faulty it will not transmit any data. COMMUNITY (optional) Community can be used when connecting to an access point where the SSID is the same. Example “Unit2”. WLAN MODE AdHoc. Used when not communicating with an... -
Page 119: Snmp Settings
D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE SNMP TRAP HOST Identifies the IP-address of the SNMP manager. SNMP (Simple Network Management Protocol, SNMP Ver 1) is used to monitor and configure different entities in a network. The system’s SNMP Agent responds to requests from SNMP Managers (a PC program etc.). SNMP traps are generated by the agent to inform the manager about important events. Traps can be sent to multiple SNMP Trap Hosts. Enter the IP address of up to three SNMP man- agers. All traps will then be sent to the hosts listed. SNMP COMMUNITY Used to authenticate SNMP requests. SNMP... -
Page 120: Ip Services
D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE & RESTART Select this icon and press OK to leave the menu restarting the system to put IP Setting changes into effect. TANDBERG 1700 USER GUIDE NTP IP This is the NTP time server address from which the system can get updated time information. This is a requirement for proper operation if H.235 authentication is implemented. The Network Time Protocol (NTP) is used to synchronize the time of the system to a reference time server. The NTP IP set- ting holds the IP address to a time source where the system can get the exact time. The time server will subsequently be queried every 24th hour for time updates. The system will use the time to timestamp messages transmitted to Gate- keepers or Border Controllers requiring H.235 authentication. It is also used for timestamping Placed Calls, Missed Calls and Received Calls. -
Page 121: Quality Of Service (I) - Qos Type
Quality of Service (I) – QoS Type Camera Presets Snapshot Touch tones D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE QOS TYPE Precedence. IP Precedence QoS method is used. Please see the following pages for details. Diffserv. Diffserv QoS method is used. Please see the following pages for details. Off. No QoS is used. -
Page 122: Quality Of Service (Ii) - Ip Presedence Video
Touch tones CANCEL Select this icon and press OK to leave the menu undoing any Camera Presets changes. RESTORE DEFAULTS Snapshot Touch tones Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE IP PRECEDENCE VIDEO Used to define which priority audio, video, data and signalling should have in the network. The higher the number, the higher the priority. The priority ranges from 0 (off) to 7 for each type of packets. Auto will provide the following priority: Audio Video Data Signalling 6 IP TYPE OF SERVICE (TOS) -
Page 123: Quality Of Service (Iii) - Ip Presedence Telephony
Snapshot Touch tones D 13954.01 MAY 2006 IP PRECEDENCE TELEPHONY Used to define which priority audio should have in the network for telephone calls. The higher the number, the higher the priority. The priority ranges from 0 (off) to 7 for each type of packets. Auto will provide the following priority: Audio 4 Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any Camera Presets changes. RESTORE DEFAULTS Snapshot Touch tones Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE... -
Page 124: Quality Of Service (Iv) - Diffserv Video
Camera Presets Snapshot Touch tones D 13954.01 MAY 2006 DIFFSERV VIDEO Used to define which priority Audio, Video, Data and Signaling packets should have in an IP network. The priority ranges from 0 to 3 for each type of packets. Recommended value for video is DiffServ Code Point (DSCP) AF41, which equals the value 34. Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any Camera Presets changes. RESTORE DEFAULTS Snapshot Touch tones Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE... -
Page 125: Quality Of Service (V) - Diffserv Telephony
Camera Presets Snapshot Touch tones D 13954.01 MAY 2006 DIFFSERV TELEPHONY Used to define which priority Audio packets should have in an IP network for telephone calls. The priority ranges from 0 to 3 for each type of packets. Recommended value for telephony is DiffServ Code Point (DSCP) EF, which equals the value 46. Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any Camera Presets changes. RESTORE DEFAULTS Snapshot Touch tones Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE... -
Page 126: Ieee802.1X
Touch tones D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. TANDBERG 1700 USER GUIDE MODE The system may be connected to an IEEE 802.1x LAN network. Supported 802.1x protocols are EAP-MD5, EAP-PEAP and EAP-TTLS. The 802.1x authentication are enabled by setting 802.1x Mode to On. On. 802.1x authentication enabled Off. 802.1x authentication disabled ANONYMOUS IDENTITY The 802.1x Anonymous ID string is to be used as unencrypted identity with EAP types that support different tunneled identity, EAP-PEAP and EAP- TTLS. The anonymous ID, if set, will be used for the initial (unencrypted) EAP Identity Request. IDENTITY The 802.1x Username is the username needed... -
Page 127: Network Profiles
Network Profiles Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE This menu consists of 6 network profiles (No. 2 is not in use); a prefix can be added for each profile. If you add a prefix to a profile, this prefix will automatically be added in front of the number being dialled. The three lower profiles. Using the profiles Nos. 5, 6, and 7 you can enter the name of a profile, prefix and network selection. Convenient if you have a fixed prefix for your service provider. -
Page 128: Data Port
Camera Presets Snapshot Touch tones CANCEL Select this icon and press OK to leave the menu undoing any changes. RESTORE DEFAULTS Select this icon and press OK to restore the default settings. SAVE Select this icon and press OK to leave the menu putting changes into effect. D 13954.01 MAY 2006 DATA PORT The system provides up to two standard RS232 serial ports to allow a computer to be connected for data transfer and control purposes. Note that when connecting to a PC, the connecting cable must be a straight through RS232 cable. Set Baud Rate, Parity, Databits, and Stopbits as required for your application. A succesful connection of a PC to Data port 1, requires that the PC and the system are identically configured. The control interface provided by the data port supports a subset of the Hayes command set as well as a compre- hensive set of system specific commands. It maintains communication with the data port’s command interpreter at all times. All features available from the hand-held remote control can be accessed through the data port. TANDBERG 1700 USER GUIDE... -
Page 129: Restore Default Settings (I)
H323Gatekeeper Authentication ID: “” H323Gatekeeper MultipleAlias: Off CallManager Address: “” H323CallSetup Mode: Direct H323Prefix: “” NAT Mode: Off NAT Address: “127.0.0.1” IPMedia MaxVideoTXRate: 1920 RTP Ports: Dynamic RTP MTU: 1300 QoS Precedence Telephony Audio: Auto QoS Precedence Telephony Signalling: Auto QoS Precedence VideoTelephony Audio: Auto QoS Precedence VideoTelephony Signalling: Auto QoS Precedence VideoTelephony Video: Auto QoS Precedence VideoTelephony Data: Auto QoS Diffserv Telephony Audio: 0 QoS Diffserv Telephony Signalling: 0 QoS Diffserv VideoTelephony Audio: 0 TANDBERG 1700 USER GUIDE QoS Diffserv VideoTelephony Signalling: 0 QoS Diffserv VideoTelephony Video: 0 QoS Diffserv VideoTelephony Data: 0 QoS Mode: Precedence QoS ToS: Off QoS RSVP: Off NetProfile 1 Name: “” NetProfile 1 CallPrefix: “” NetProfile 1 CallSuffix: “” NetProfile 1 Network: Auto NetProfile 2 Name: “” NetProfile 2 CallPrefix: “” NetProfile 2 CallSuffix: “” NetProfile 2 Network: Auto NetProfile 3 Name: “” NetProfile 3 CallPrefix: “” NetProfile 3 CallSuffix: “”... -
Page 130: Restore Default Settings (Ii)
Video Inputs Source 7 Name: “HD Cam” Video Inputs Source 7 Quality: Sharpness Video Outputs ScreenFormatPC: 16:9 Video Outputs FormatPCWideScreen: Normal Video Outputs DVIResolution: Auto Video Outputs AllowHD720p: Off Video Outputs AllowWXGA: Off MainVideoSource: 1 DuoVideoSource: 5 StillImageSource: 1 CallVideoSource: 0 Conference DefaultCall CallRate: Auto Conference DefaultCall NetProfile: 1 Conference H323Alias E164: “” Conference H323Alias ID: “” Conference SIP URI: “” Conference H263: On Conference H264: On Conference G722: On TANDBERG 1700 USER GUIDE Conference G722.1: On Conference G728: On Conference AAC-LD: On Conference H239: On Conference AAC-LD-128-Threshold: 512 Conference AAC-LD-128-Mono: Off Conference NaturalVideo: Auto Conference PictureMode: VS Conference VideoQualityCP: Auto Conference FloorToFull: Off Conference MaxCallLength: 0 Conference AllowIncomingTlphCall: On Conference AllowIncomingMSCall: On Conference Downspeed: On Conference FallbackToTelephony: Off Conference Encryption Mode: Auto Conference Encryption Type: Auto... -
Page 131: Restore Default Settings (Iii)
ExternalManager Address: “” ExternalManager Path: “tms/public/external/ management/SystemManagementService. asmx” SIP Mode: Off SIP Server Discovery: Auto SIP Server Address: “” SIP Server Type: NA SIP Authentication UserName: “” SIP Transport Default: Auto NTP Mode: Auto NTP Address: “” UseAsLocalPCMonitor: Off AutoDisplaySnapshot: On DefaultPIPPosition: TopRight FeedbackFilter Conference: 0 FeedbackFilter Call: 0 IdReport H323: E164Alias Kiosk Mode: Off TANDBERG 1700 USER GUIDE Kiosk Menu: On Kiosk LanguageMenu Mode: Off Kiosk LanguageMenu English: On Kiosk LanguageMenu German: Off Kiosk LanguageMenu French: Off Kiosk LanguageMenu Italian: Off Kiosk LanguageMenu Norwegian: Off Kiosk LanguageMenu Swedish: Off Kiosk LanguageMenu Spanish: Off Kiosk AutoDial: Off Kiosk AllowIRControl: Off Kiosk Phonebook: Local IEEE802.1x Mode: Off IEEE802.1x AnonymousIdentity: “” IEEE802.1x Identity: “” IEEE802.1x EAP-MD5: On IEEE802.1x EAP-TTLS: On IEEE802.1x EAP-PEAP: On... -
Page 132: On-Line User Guide
The Control Panel will now be displayed Use the Arrow keys to navigate to the User Guide. LOST IN TRANSLATION? Click on the Phone Book icon 5 times followed by pressing the number key 1 on the remote control to reset the menu language to English. D 13954.01 MAY 2006 Guide serves to help you when you Camera Presets Snapshot Touch tones Camera Presets Snapshot Touch tones TANDBERG 1700 USER GUIDE Page number / total number of pages for this topic. Cancel – takes you one step back. Next page Previous page... -
Page 133: Diagnostics - An Overview
The Control Panel will now be displayed Use the Arrow keys to navigate to Diagnostics. LOST IN TRANSLATION? Click on the Phone Book icon 5 times followed by pressing the number key 1 on the remote control to reset the menu language to English. D 13954.01 MAY 2006 The Diagnostics allows testing of individual system components and displays the current system settings. TANDBERG 1700 USER GUIDE SYSTEM INFORMATION Select System Information to view system numbers, line status, software version, hardware serial number and other useful information. Press arrow key up and down to scroll in the System Information list. CALL STATUS Comprehensive information about the call is available through the Call Status window. The menu has two columns, one for transmitted and one for received audio/ video/data information. If Dual Stream or MultiSite is available on your system and in use, pressing the Vertical Arrow keys will show one page per connected site. -
Page 134: System Information
Control Panel > Diagnostics System Information System Information is a two-page display providing system information. D 13954.01 MAY 2006 Camera Presets Snapshot Cancel View Adminstrator Settings Detailed Call Status Call Status System Information TANDBERG 1700 USER GUIDE SYSTEM INFORMATION Select System Information to view system numbers, line status, software version, hardware serial number and other useful information. Press arrow key up and down to scroll in the System Information list. Touch tones... -
Page 135: Call Status
Control Panel > Diagnostics Call Status D 13954.01 MAY 2006 Cancel View Adminstrator Settings Detailed Call Status Call Status On-line User Guide TANDBERG 1700 USER GUIDE CALL STATUS Comprehensive information about the call is available through the Call Status window. The menu has two columns, one for transmitted and one for received audio/ video/data information. If Dual Stream or MultiSite is available on your system and in use, pressing the UP/DOWN keys will show one page per connected site. -
Page 136: Detailed Call Status
Control Panel > Diagnostics Detailed Call Status D 13954.01 MAY 2006 Cancel View Adminstrator Settings Detailed Call Status Call Status On-line User Guide TANDBERG 1700 USER GUIDE DETAILED CALL STATUS The detailed call status menu provides detailed information on packet loss and jitter. -
Page 137: System Selftest
Control Panel > Diagnostics System Selftest D 13954.01 MAY 2006 TANDBERG 1700 USER GUIDE SYSTEM SELFTEST The system performs a check to determine internal hardware integrity. System Selftest is useful when you want to check if your network connection is active. -
Page 138: View Adminstrator Settings
Control Panel > Diagnostics View Adminstrator Settings D 13954.01 MAY 2006 Camera Presets Snapshot • • • • • • TANDBERG 1700 USER GUIDE ADMINSTRATOR SETTINGS This window displays all the system set- tings. Use the Arrow keys on the remote control to scroll through the list. Touch tones... -
Page 139: Ip Address Conflict Check
Control Panel > Diagnostics IP Address Conflict Check D 13954.01 MAY 2006 TANDBERG 1700 USER GUIDE IP ADDRESS CONFLICT CHECK The system will give a warning if there is an IP conflict. Initiate this check by selecting IP Address Conflict Check. -
Page 140: Warnings
Control Panel > Diagnostics Warnings D 13954.01 MAY 2006 TANDBERG 1700 USER GUIDE WARNINGS Any warnings registered by the sys- tem will be displayed in the Warnings menu. Open a warning in the list to get more information about the warning. -
Page 141: Audio Demo
Control Panel Audio Demo D 13954.01 MAY 2006 AUDIO DEMO A feature designed to demonstrate the high quality of the TANDBERG audio system. Click on the Audio demonstrate the high quality of the TANDBERG audio system. TANDBERG 1700 USER GUIDE Demo button to...
