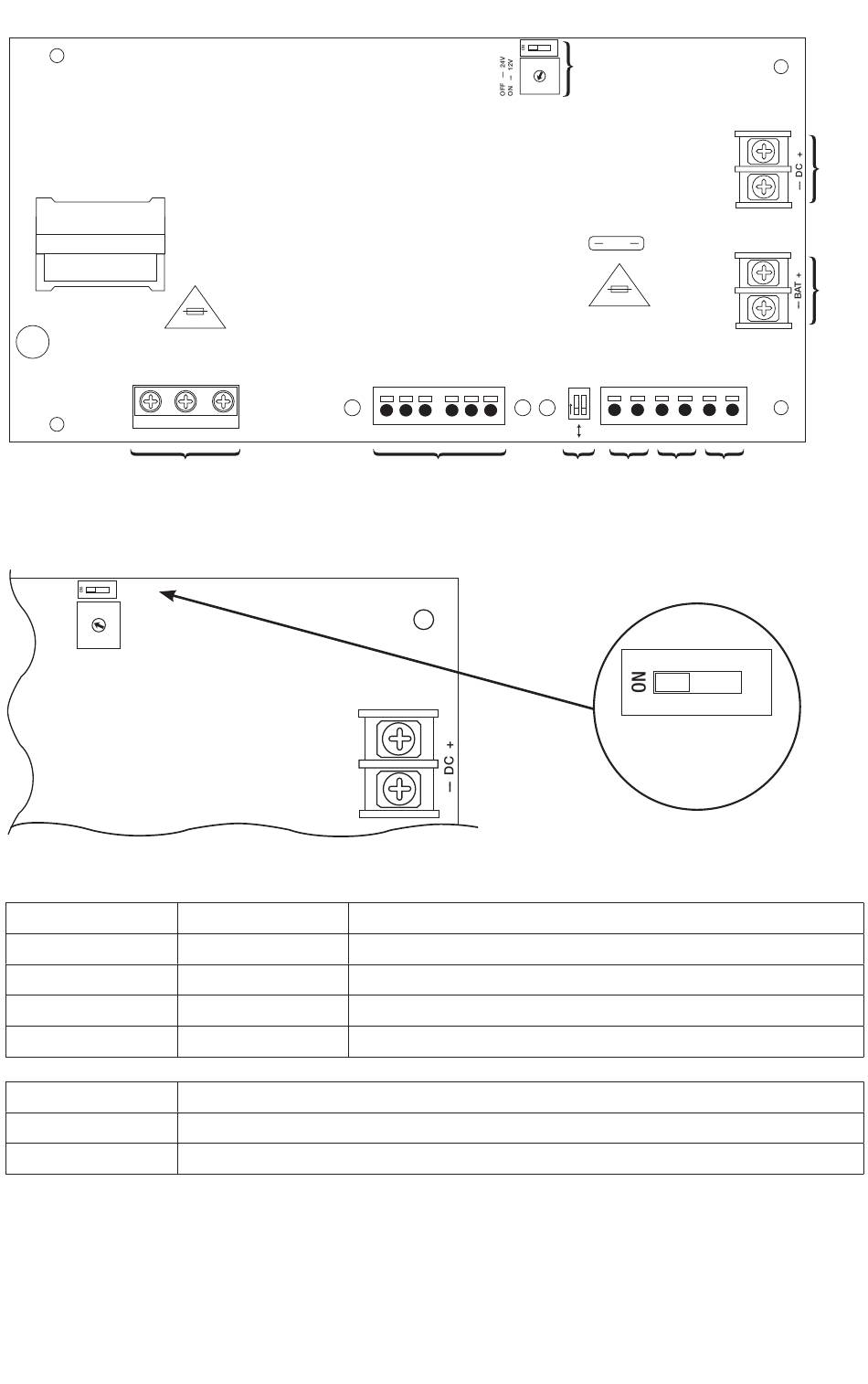

Fig. 1 - eFlow Board configuration
5A 250V
L

Power Supply Board Output Voltage Settings:

Fig. 2
OFF - 24V
ON - 12V
Red (DC)
ON
ON
OFF
OFF
Red (Bat)
ON
OFF
- 4 -
5A 250V
G
N
1a

LED Diagnostics:

Green (AC/AC1)
ON
OFF
ON
OFF
Battery Status
Normal operating condition.
Battery fail/low battery.
BAT FAIL
AC FAIL
AC1
NC C NO
NC C NO
1b
Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery is supplying power.
No DC output.
Loss of AC. Discharged or no stand-by battery. No DC output.
1i
10A
10A 32V
AC DELAY SHUTDOWN
O
N
AC
DC
1 min.
enable
TRIGGER EOL
NO
2 hr.
disable
SUPERVISED
RESET
1c
1d
1e
Fig. 2a
OFF - 24V
ON - 12V
MaxiFit3FE/MaxFit5FE/MaxFit7FE Expandable Power Systems
1h
1g
GND
+ AUX –
1f
