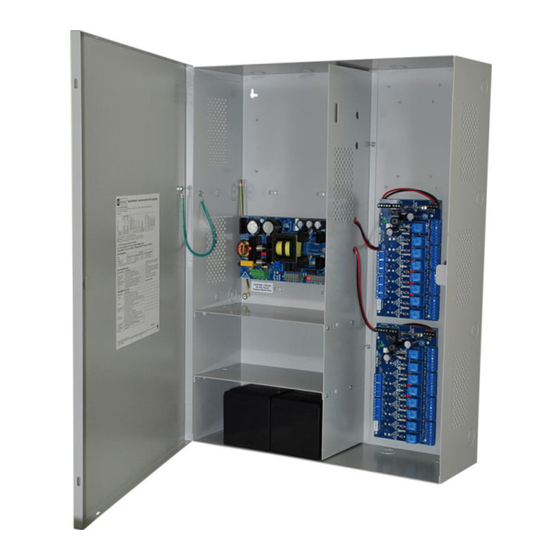

Maximal FD Series
Dual Power Supply
Access Power Controllers (PTC)
Models Include:
Maximal11FD
- Power Supply 1:
12VDC @ 3.3A or 24VDC @ 3.6A.
- Power Supply 2:
12VDC @ 3.3A or 24VDC @ 3.6A.
- Sixteen (16) PTC protected
power-limited outputs.
Maximal33FD
- Power Supply 1:
12VDC @ 5.3A or 24VDC @ 5.6A.
- Power Supply 2:
12VDC @ 5.3A or 24VDC @ 5.6A.
- Sixteen (16) PTC protected
power-limited outputs.
Installation Guide
Rev. MDFD052419
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Maximal55FD
- Power Supply 1: 12VDC @ 9.3A.
- Power Supply 2: 12VDC @ 9.3A.
- Sixteen (16) PTC protected
power-limited outputs.
Maximal75FD
- Power Supply 1: 12VDC @ 9.3A.
- Power Supply 2: 24VDC @ 9.6A.
- Sixteen (16) PTC protected
power-limited outputs.
Maximal77FD
- Power Supply 1: 24VDC @ 9.6A.
- Power Supply 2: 24VDC @ 9.6A.
- Sixteen (16) PTC protected
power-limited outputs.
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix Maximal FD Series
Summary of Contents for Altronix Maximal FD Series
- Page 1 Maximal FD Series Dual Power Supply Access Power Controllers (PTC) Models Include: Maximal11FD Maximal55FD - Power Supply 1: - Power Supply 1: 12VDC @ 9.3A. 12VDC @ 3.3A or 24VDC @ 3.6A. - Power Supply 2: 12VDC @ 9.3A. - Power Supply 2: - Sixteen (16) PTC protected 12VDC @ 3.3A or 24VDC @ 3.6A.
-
Page 2: Table Of Contents
Table of Contents: MaximalFD Series Overview ..........pg. 3 MaximalFD Series Configuration Chart . -
Page 3: Maximalfd Series Overview
The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs. MaximalFD Series Configuration Chart: Nominal DC Output Voltage Options Power Supply 1 Power Supply 2 [DC] [AUX] [DC] [AUX] Altronix Model Number eFlow4NB eFlow4NB – 9.8- 10.05- 9.8- 10.05-... -
Page 4: Agency Listings
Agency Listings: UL Listings for US Installations: UL 294* - UL Listed for Access Control System Units. *ANSI/UL 294 7th Ed. Access Control Performance Levels: Destructive Attack - I; Endurance - I; Line Security - I; Stand-by Power - II, III, IV. UL Listings for Canadian Installations: ULC-S319-05 - Electronic Access Control Systems Class I equipment. -
Page 5: Maximalfd Installation Instructions
MaximalFD Installation Instructions: Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, the Canadian Electric Code, Part I, Part II and with all local codes and authorities having jurisdiction. Product is intended for indoor use only. Power Supply Board LED Diagnostics (pg. - Page 6 14. Installation of Tamper Switch (Fig. 3a, pg. 10): Mount UL Listed tamper switch (Altronix model TS112 or equivalent) at the top of the enclosure. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig.
-
Page 7: Maintenance
Maintenance: Unit should be tested at least once a year for the proper operation as follows: FACP Supervision: To ensure proper connection and operation of the Fire Alarm disconnect hookup. Please follow the appropriate procedure below: Normally Open Input: Placing a short between terminals marked [T] and [+ INP] will trigger the Fire Alarm Disconnect. -
Page 8: Power Supply Board Terminal Identification
Power Supply Board Terminal Identification: Terminal Legend Function/Description Connect 120VAC 60Hz to these terminals: L to hot, N to neutral. L, G, N Do not use terminal marked [G]. + DC – Factory connected to ACM8 board. Trigger EOL Fire Alarm Interface trigger input from a short or FACP. Trigger inputs can be normally open, Supervised normally closed from an FACP output circuit (Class 2 power-limited input) (Fig. -
Page 9: Power Supply Board Output Voltage Settings
Power Supply Board Output Voltage Settings: Fig. 1 Fig. 1a OFF - 24V ON - 12V OFF - 24V ON - 12V Access Power Controller Typical Application Diagram (for each ACM8CB): Fig. 2 Fig. 2a Intact = Dry Input Normally Open (N.O.) Cut = Wet Input Door Releasing FACP... -
Page 10: Maximalfd Battery Hookup And Tamper Switch Installation
Fig. 3 - Maximal FD Series Tamper Switch OFF - 24V ON - 12V Power Supply Board AC DC NC C NO NC C NO TRIGGER +AUX- SUPERVISED RESET AC FAIL BAT FAIL Line Neutral Earth Ground OFF - 24V... -
Page 11: Nec Power-Limited Wiring Requirements
NEC Power-Limited Wiring Requirements: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits. One such example of this is shown below. -
Page 12: Facp/Optional Power Supply Hook-Up Diagrams
FACP Hook-Up Diagrams: Fig. 5 Optional hook-up using two (2) isolated Fig. 6 Polarity reversal input from FACP power supply inputs (Only applicable on signaling circuit output (polarity is Maximal11FD, not evaluated by UL): referenced in alarm condition): CUT JUMPERS JUMPER J1 AND J2 FACP... - Page 13 Notes: Maximal11FD/33FD/55FD/75FD/77FD Series Access Power Controllers (PTC) Installation Guide - 13 -...
- Page 14 Notes: - 14 - Maximal11FD/33FD/55FD/75FD/77FD Series Access Power Controllers (PTC) Installation Guide...
-
Page 15: Enclosure Dimensions
(21.6mm) 4” (101.6mm) 2” (50.8mm) 19” (482.6mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIMaximal11FD/33FD/55FD/75FD/77FD Series... - Page 16 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
