Maintenance; Power Supply Board Output Voltage Settings - Altronix MAXIMAL FIT MaxFit E Series Installation Manual

Use 18 AWG or larger for all low voltage power connections.
Note: Take care to keep power-limited circuits separate from non power-limited wiring (115VAC, Battery).
Unit should be tested at least once a year for the proper operation as follows:
Output Voltage Test:
Battery Test:
Note: AL400ULXB2, AL600ULXB and AL1012ULXB Power Supply Board maximum charge current is 0.7A.
AL1024ULXB2 Power Supply Board maximum charge current is 3.6A.
Expected battery life is 5 years, however it is recommended to change batteries within 4 years or less if necessary.

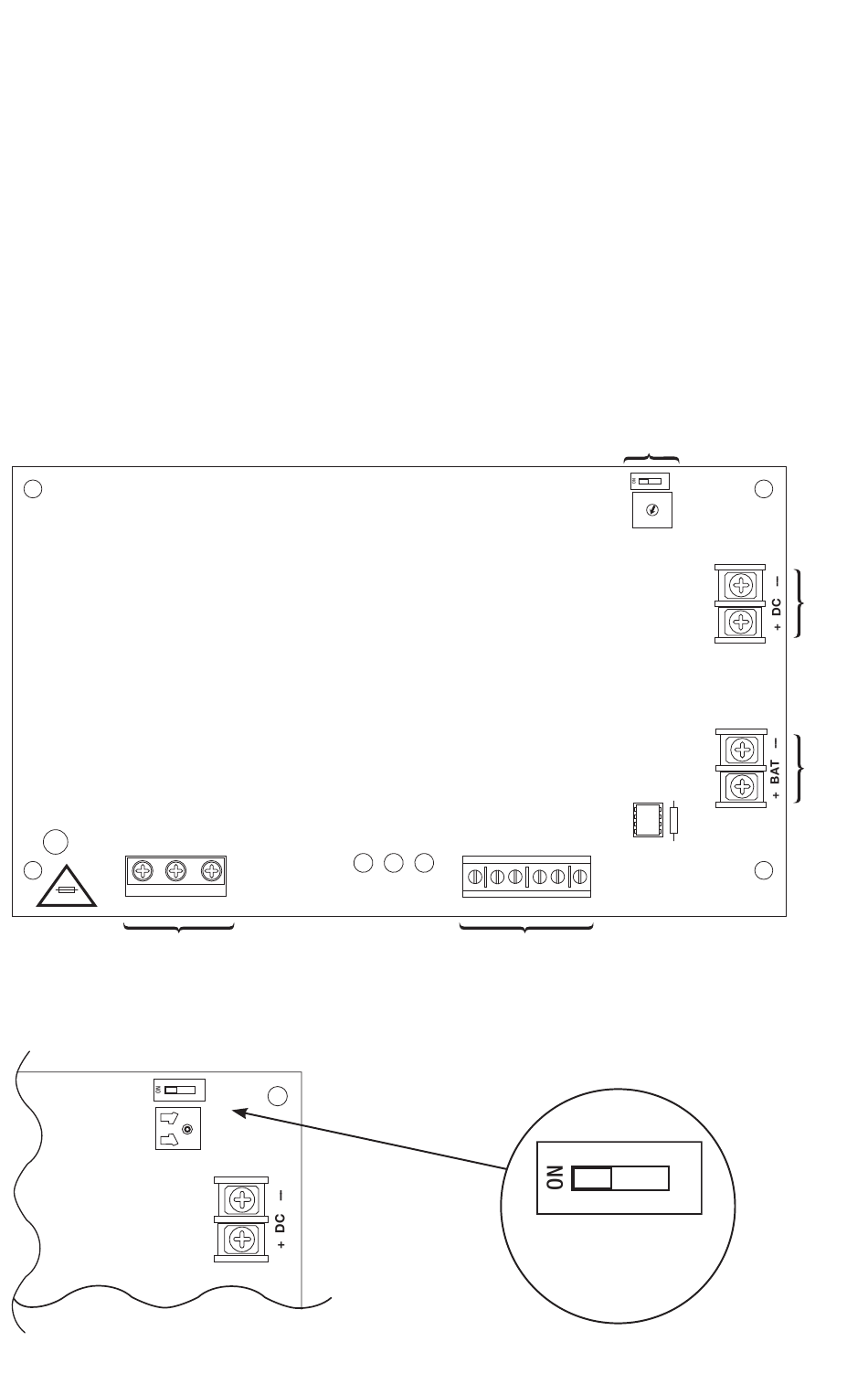

Fig. 1 - ULXB Board Configuration
5A 250V
L
1a

Power Supply Board Output Voltage Settings:

Fig. 2
OFF - 24V
ON - 12V
- 4 -
Under normal load conditions the DC output voltage should be checked
for proper voltage level
(Power Supply Board Stand-by Battery Specifications, pg. 7).
Under normal load conditions check that the battery is fully charged, check
specified voltage at the battery terminals and at the board terminals marked
[+ BAT –] to ensure that there is no break in the battery connection wires.
G N
SW1
Wiring:

Maintenance:

AC DC BAT
BAT FAIL NC C NO NC C
MaxiFit11E/13E/33E/35E/37E/55E/75E/77E Expandable Power Systems Installation Guide
1e*
OFF --- 24V
ON --- 12V
NO AC FAIL
1b
OFF - 24V
ON - 12V
1d**
1c***
Fig. 2a
