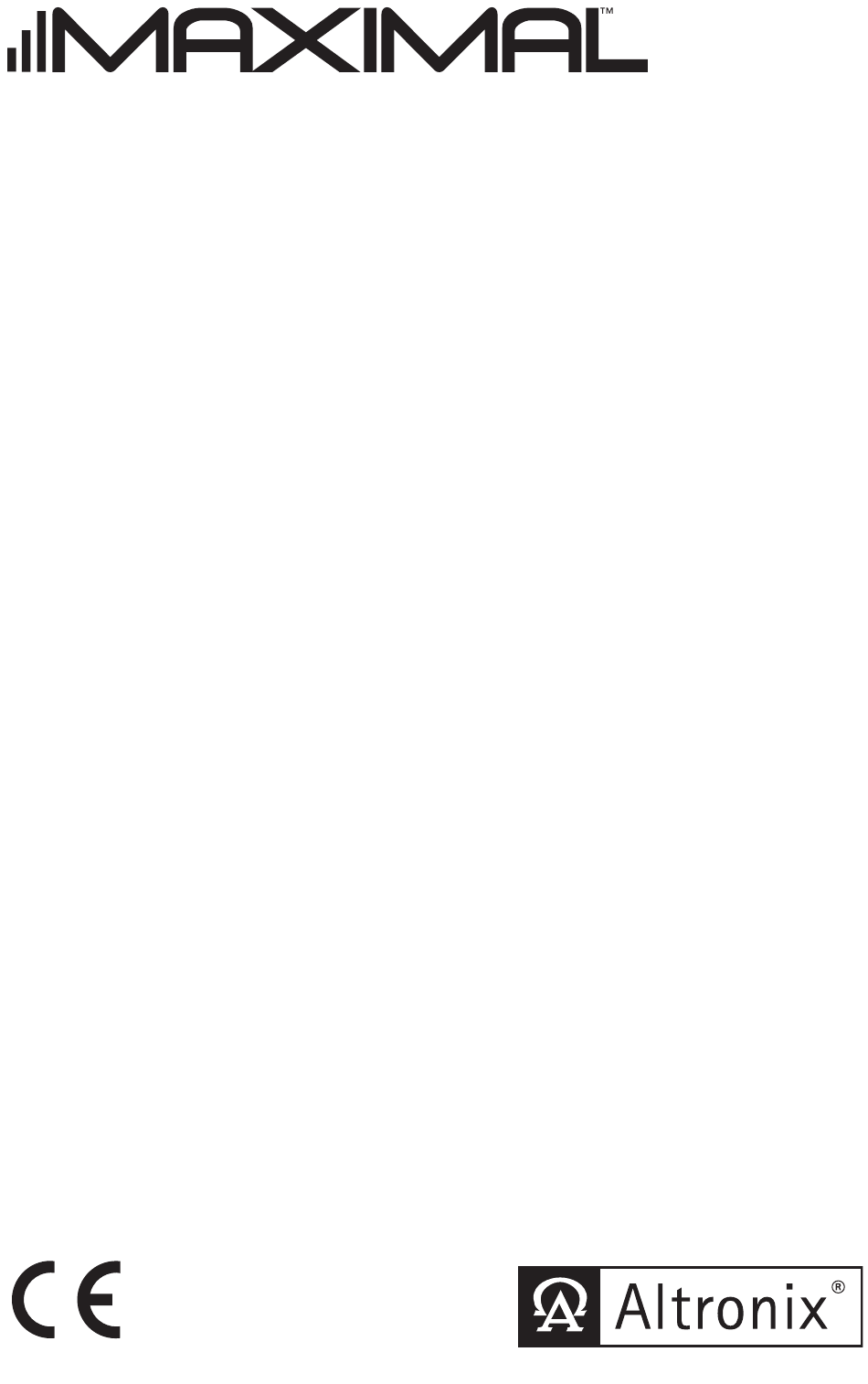

Expandable Power Systems
Installation Guide
Models Include:
Maximal11FEV
- Power Supply 1: 12VDC or 24VDC @ 4A.
- Power Supply 2: 12VDC or 24VDC @ 4A.
Maximal13FEV
- Power Supply 1: 12VDC or 24VDC @ 4A.
- Power Supply 2: 12VDC or 24VDC @ 6A.
Maximal33FEV
- Power Supply 1: 12VDC or 24VDC @ 6A.
- Power Supply 2: 12VDC or 24VDC @ 6A.
Maximal35FEV
- Power Supply 1: 12VDC or 24VDC @ 6A.
- Power Supply 2: 12VDC @ 10A.
Rev. MFEV031215
Maximal37FEV
- Power Supply 1: 12VDC or 24VDC @ 6A.
- Power Supply 2: 24VDC @ 10A.
Maximal55FEV
- Power Supply 1: 12VDC @ 10A.
- Power Supply 2: 12VDC @ 10A.
Maximal75FEV
- Power Supply 1: 24VDC @ 10A.
- Power Supply 2: 12VDC @ 10A.
Maximal77FEV
- Power Supply 1: 24VDC @ 10A.
- Power Supply 2: 24VDC @ 10A.
More than just power.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maximal11FEV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix Maximal11FEV

Summary of Contents for Altronix Maximal11FEV

  • Page 1 Expandable Power Systems Installation Guide Models Include: Maximal11FEV Maximal37FEV - Power Supply 1: 12VDC or 24VDC @ 4A. - Power Supply 1: 12VDC or 24VDC @ 6A. - Power Supply 2: 12VDC or 24VDC @ 4A. - Power Supply 2: 24VDC @ 10A.

  • Page 2: Table Of Contents

    Table of Contents: MaximalFEV Overview pg. 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . MaximalFEV Features .

  • Page 3: Maximalfev Overview

    MaximalFEV Overview: Maximal Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility . They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers . Includes AC fail, low battery, and battery presence monitoring . Enclosure facilitates up to four (4) 12VDC/12AH batteries .

  • Page 4: Maximalfev Series Configuration Chart

    10 .1- 10 .05- 10 .1- 10 .05- – – – – 13 .2 13 .2 13 .2 13 .2 Maximal11FEV – 2 4 .2 5A/250V 7 .5A/32V 10 .1- 10 .05- 20 .28- 20 .2- – – – –...

  • Page 5: Maximalfev Installation Instructions

    4 . Measure output voltage before connecting devices . This helps avoiding potential damage . 5 . Connect devices or Altronix sub-assembly modules to be powered to the terminals marked [– DC +] (Fig. 2, pg. 8) . For auxiliary device connection, this output will not be affected by Low Power Disconnect or Fire Alarm Interface .

  • Page 6: Power Supply Board Terminal Identification

    Power Supply Board Terminal Identification: Terminal Function/Description Legend Connect 220VAC 50/60Hz to these terminals: L to hot, N to neutral . L, G, N Do not use the [G] terminal + DC – Refer to MaximalFEV Series Configuration Chart, pg. 4. Trigger EOL Fire Alarm Interface trigger input from a short or FACP .

  • Page 7: Power Supply Board Led Diagnostics

    Power Supply Board LED Diagnostics: Green (DC) Green (AC/AC1) Power Supply Status Normal operating condition . Loss of AC . Stand-by battery is supplying power . No DC output . Loss of AC . Discharged or no stand-by battery . No DC output . Power Supply Board Output Voltage Settings: Fig.

  • Page 8: Battery Setup And Tamper Switch Installation

    Fig. 2 Tamper Switch Fig. 2a AC DC NC C NO NC C NO 1 min enable TRIGGER +AUX- 2 hr disable SUPERVISED RESET AC FAIL BAT FAIL Line Neutral Input 220VAC 50/60Hz Ground Lug Honeywell Model 112 Tamper Switch Enclosure or equivalent Edge of...

  • Page 9: Nec Power-Limited Wiring Requirements For Maximalfev

    NEC Power-Limited Wiring Requirements: Power-limited and non power-limited circuit wiring must remain separated in the cabinet . All power-limited circuit wiring must remain at least 0 .25” away from any non power-limited circuit wiring . Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through differ- ent conduits .
  • Page 10 Notes: - 10 - MaximalFEV Expandable Power Systems...

  • Page 11: Enclosure Dimensions

    Altronix is not responsible for any typographical errors . 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www .altronix .com | e-mail: info@altronix .com | Lifetime Warranty | Made in U .S .A . MEMBER...
  • Page 12 - UL Listed in the U .S . and Canada . - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN . - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature .
